- Summary
- Details
- Certification:ISO9001
- Model Number:HB37A
- Brand Name:XCMG
- Place of Origin:China
- Dimension(L*W*H):11990×2500×3900
- Weight:28400
- Power(W):265000
- Production Date:2010
- Product Name:G5ACC64B2E5430
- Display online time:2019-12-27
- weight:28400.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:USED
- Moving Type:wheel
- Max. speed:90km
- Min. turning diameter:18.4m
- Brake distance:7m
- Approach angle:31°
- Departure angle:12°
- Max. Engine power:287kW
- Max. Engine torque:1862N.m
- Max. grade-ability:38%

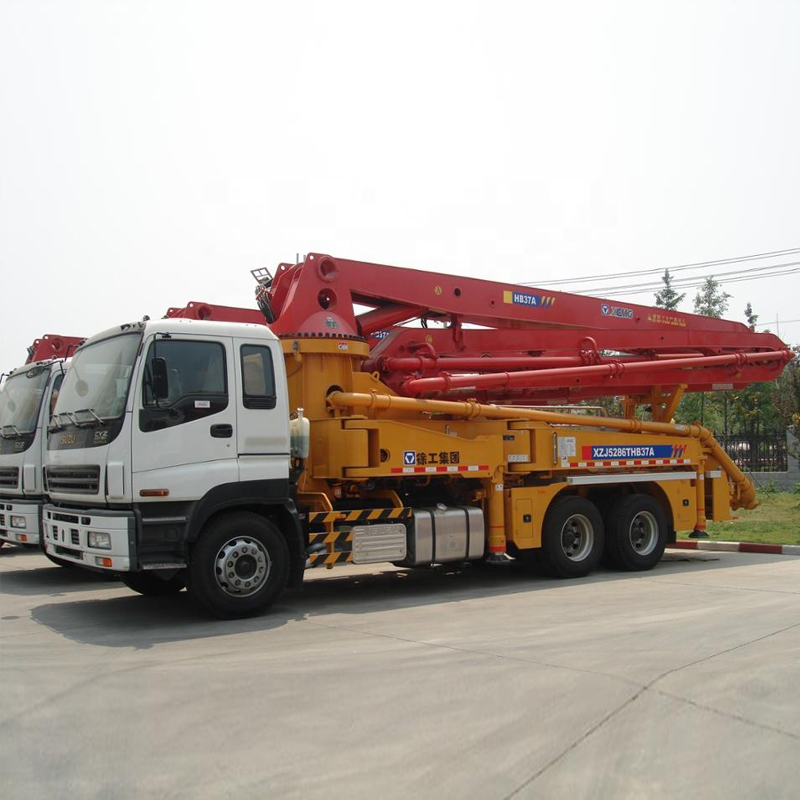

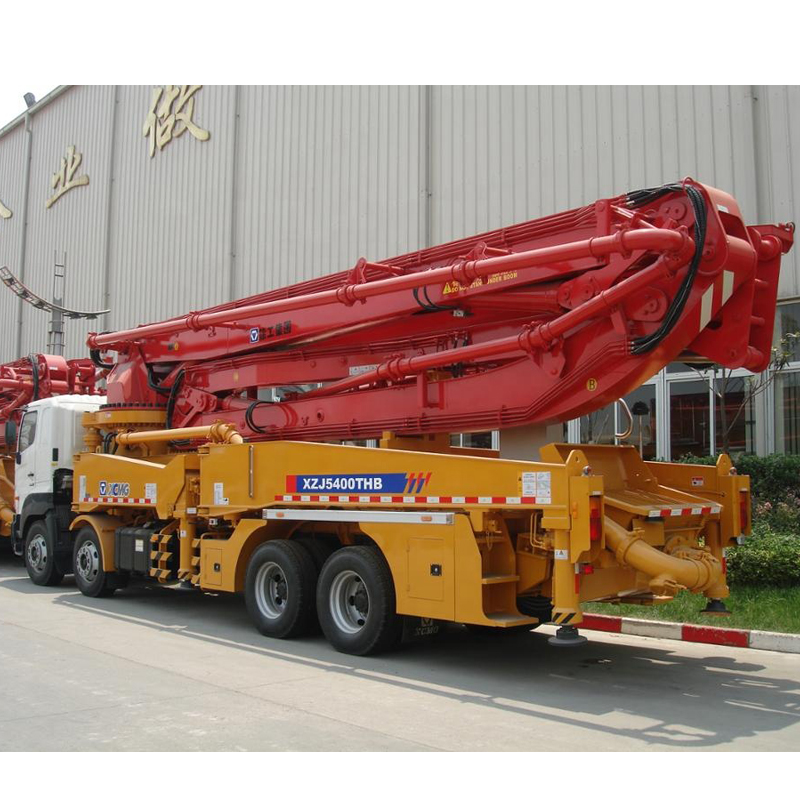

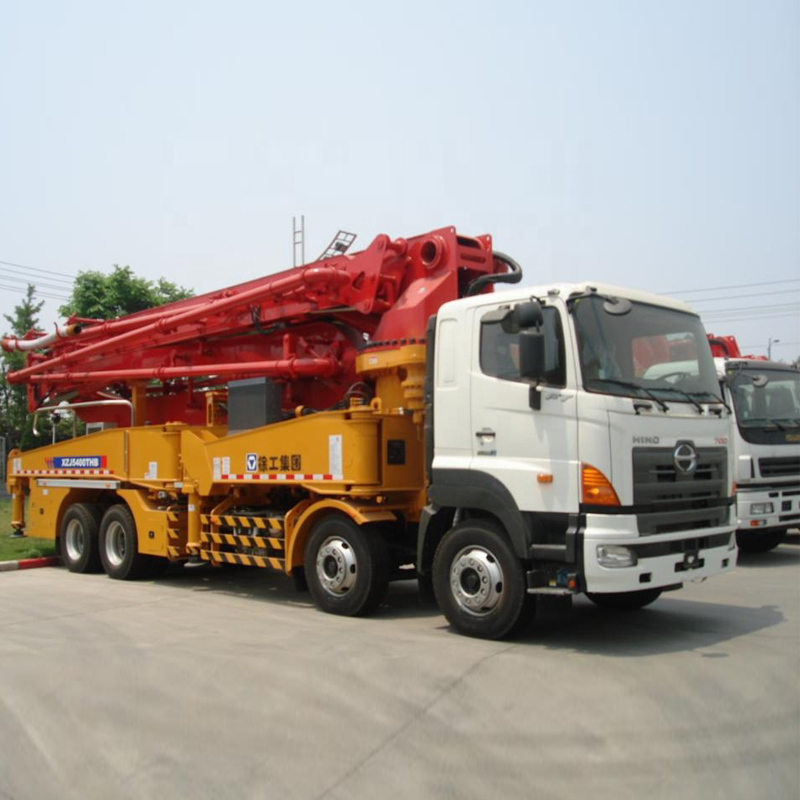

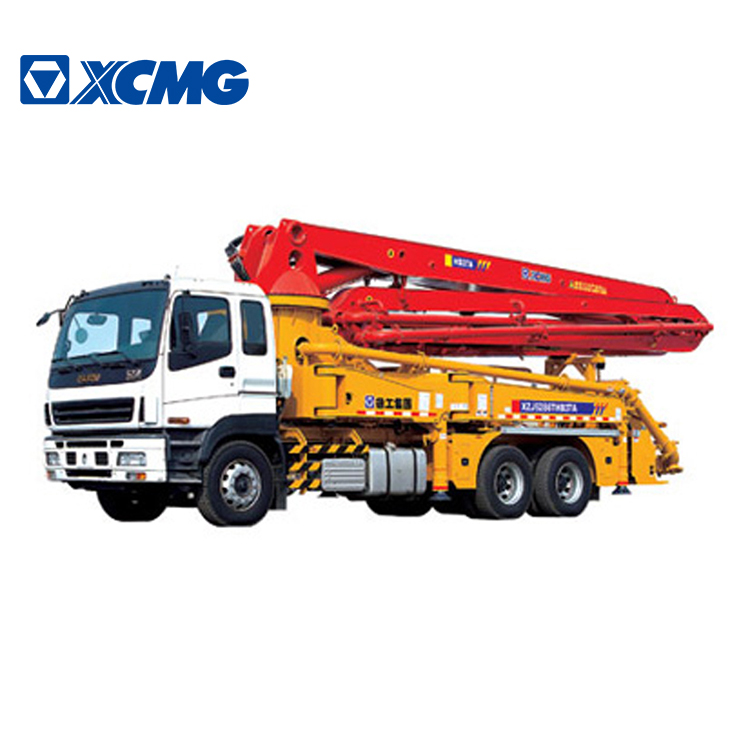

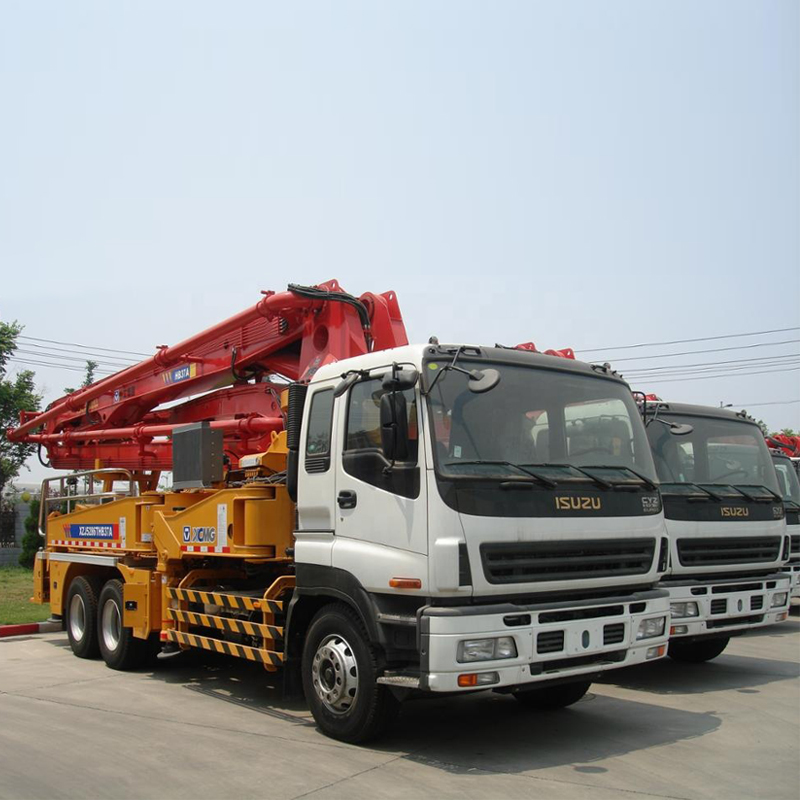

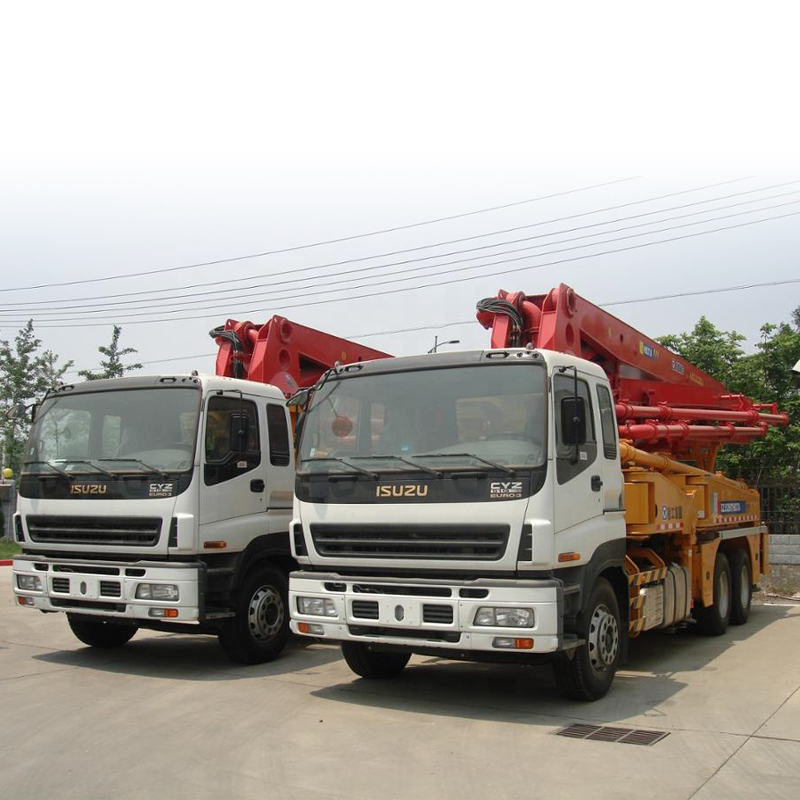

HB37A Truck-Mounted Concreted Boom Pumps
1、XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
2、It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
No. | Item | Unit | Parameter |
1 | Max.speed | Km | 90 |
2 | Min.turning diameter | M | 18.4 |
3 | Brake distance | M | 7 |
4 | Approachh angle | ° | 31 |
5 | Departure angle | ° | 12 |
6 | Chassis model | CXZ51Q(Japan) | |
7 | Total weight | Kg | 28150 |
8 | 1st axle load | Kg | 6780 |
9 | 2nd,3rd axle load | Kg | 21220 |
10 | Engine model | 6WF1 | |
11 | Max.Engine power | Kw | 287 |
12 | Max.Engine torque | N.m | 1862 |
13 | Max.grade-ability | % | 38 |
14 | Fuel consumption limit | L/100KM | 34 |
15 | Outline dimensions(Length’Width’Height) | mm | 11990’2490’3900 |
No. | Item | Unit | Parameter |
1 | Theoretical output | m³/h | 138/90 |
2 | Max.delivery pressure | MPa | 8.7/13 |
3 | Reach height | M | 37.4 |
4 | Reach depth | M | 23.7 |
5 | Front outrigger transverse span | Mm | 7280 |
6 | Rear outrigger transverse span | Mm | 6600 |
7 | Outrigger longitudinal span | Mm | 6860 |
8 | Delivery pipe diameter | Mm | 125 |
9 | Remote control distance | M | 100 |
10 | Placing boom slewing range | ° | 370 |
