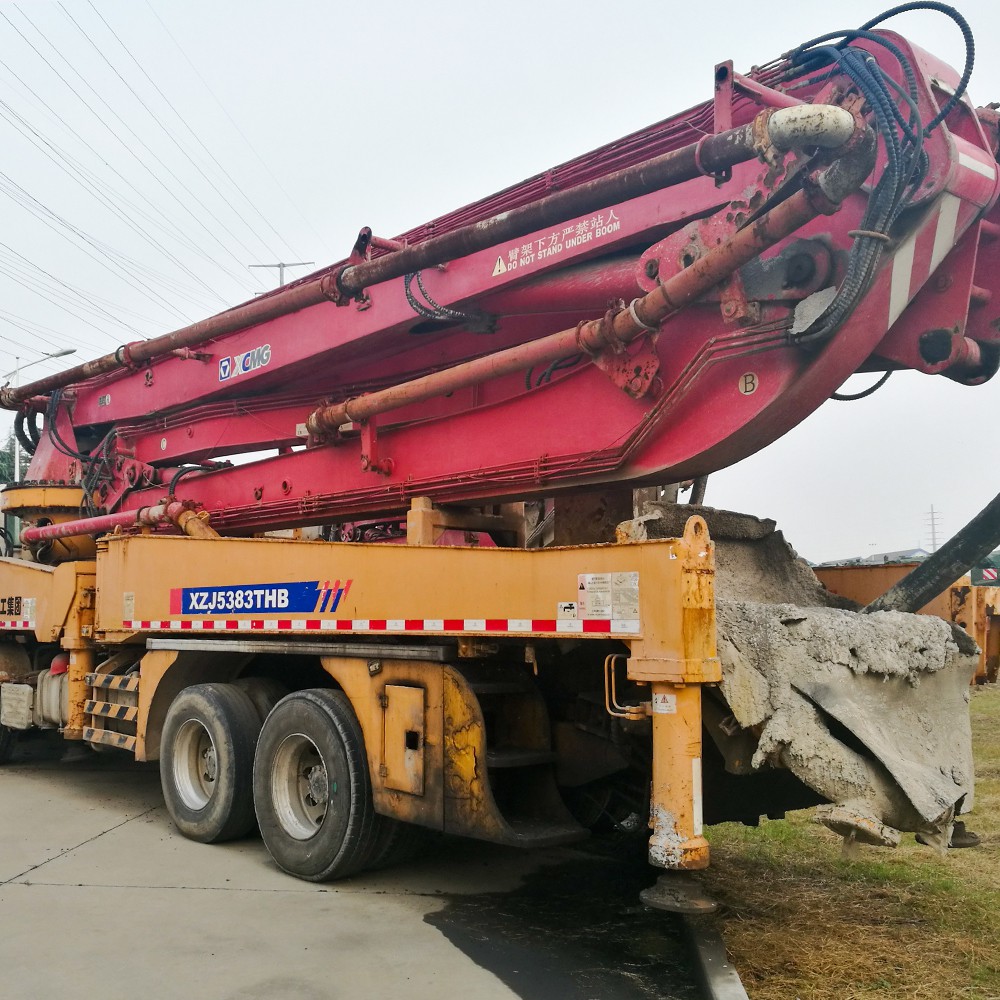

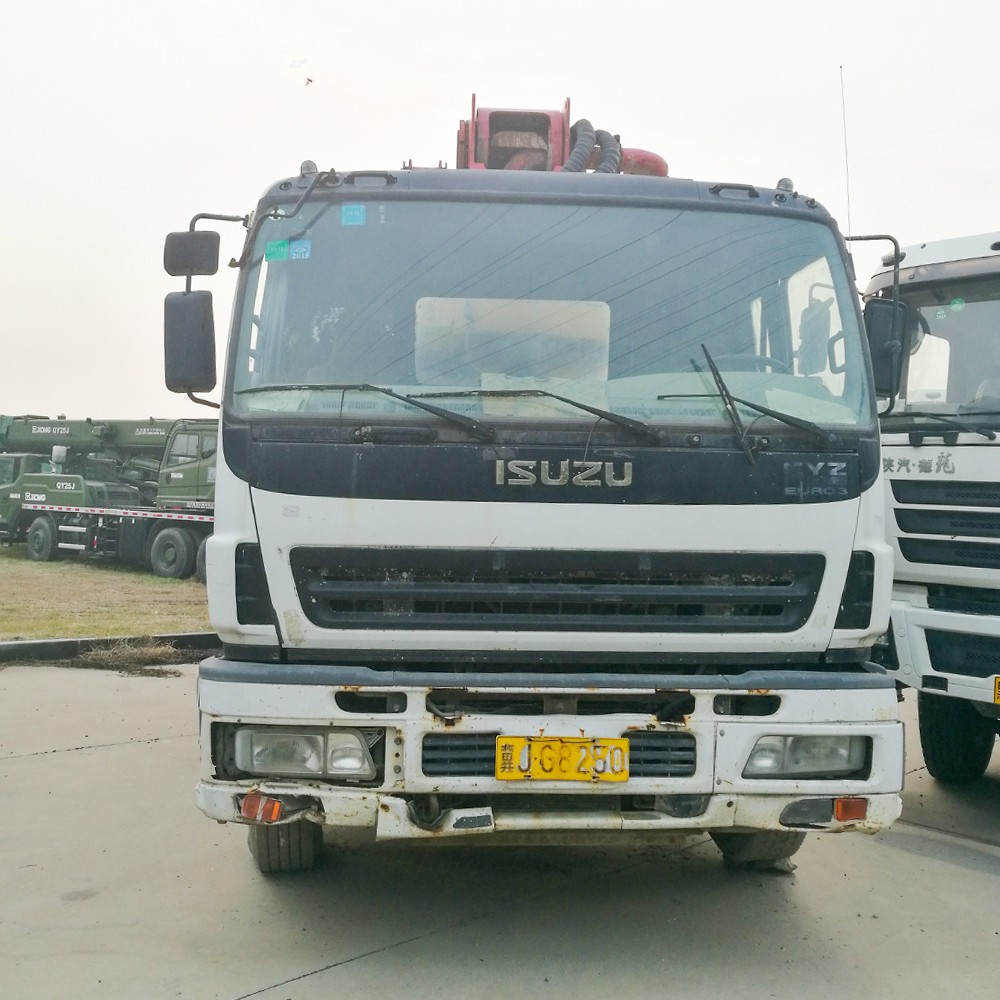

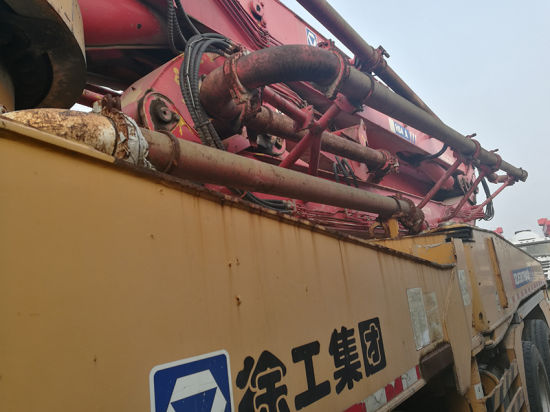

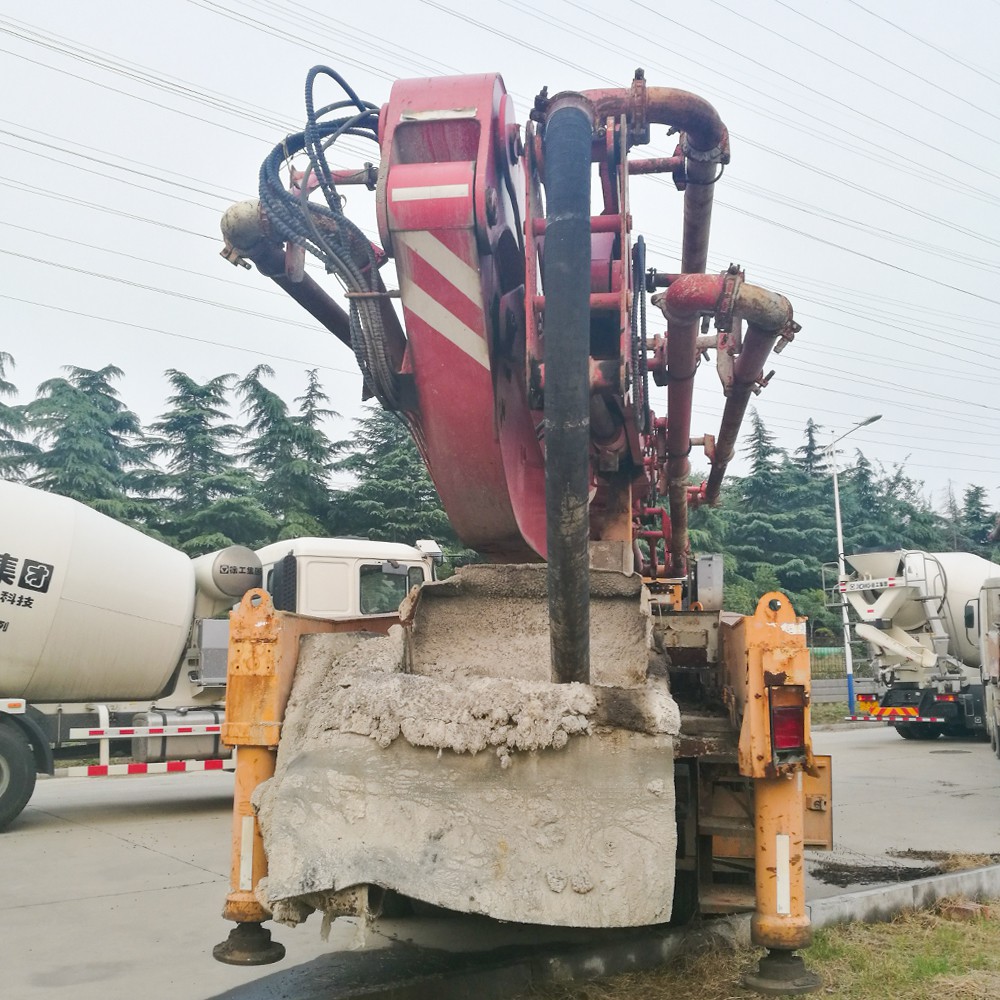

XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale

  • XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale
  • XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale
  • XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale

Share:
XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale
FOB for Concrete Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale
  • Summary
  • Details
Summary
  • Certification:ISO9001
  • Model Number:HB46
  • Brand Name:XCMG
  • Place of Origin:China
  • Dimension(L*W*H):12665×2500×3990
  • Weight:38270
  • Power(W):287000
  • Production Date:2011
Details
  • Product Name:G5ACC6905682B4
  • Display online time:2019-12-27
  • weight:38270.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:USED
  • Moving Type:wheel
  • Max.travel speed:89km/h
  • Max.grade ability:34%
  • Min.turning diameter:23.8m
  • Min.ground clearance:240mm
  • Fuel tank capacity:400L
  • Displancement:14.256L
  • Feeding height:1580mm
  • Water tank capacity:830

XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale

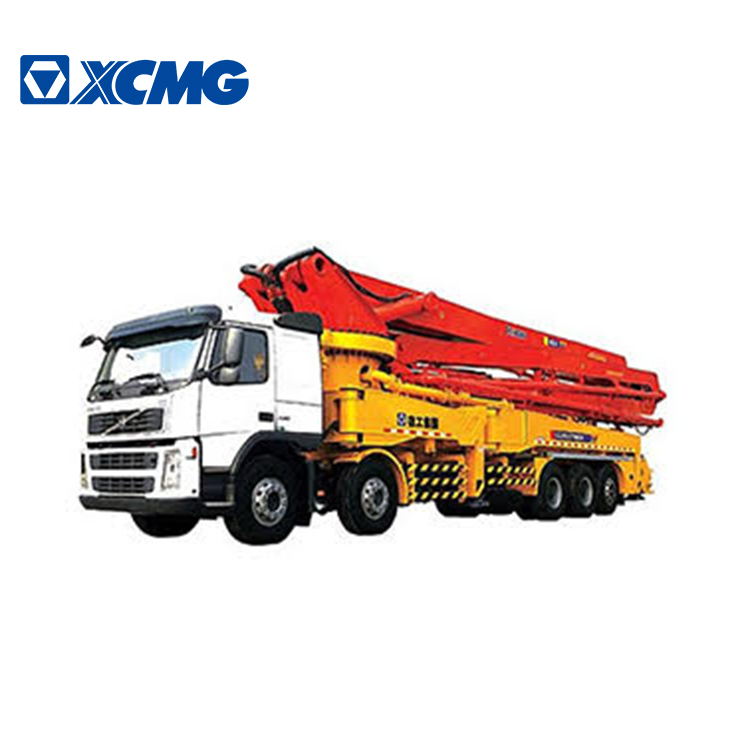

HB46 Truck-Mounted Concreted Boom Pumps

1、XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.

2、It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.

XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for saleXCMG Used HB46 Truck-Mounted Concreted Boom Pumps for saleXCMG Used HB46 Truck-Mounted Concreted Boom Pumps for saleXCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale


XCMG Used HB46 Truck-Mounted Concreted Boom Pumps for sale

Brand



XCMG

Vehicle parameter

Vehicle model



HB46A

Registed series#



XZJ5383THB

Dimension(L×W×H

mm

12665×2500×3990

Total vehicle weight

kg

38400

Pump System

Theoretical throughput(high/low)

m³/h

90/150

Delivery pressure(high/low)

MPa

13/8

Strokes per minute

times/min

13/22

Delivery cylinder diameter & stroke length

mm

260×2200

Max.diameter of concrete aggregate

mm

≤40

Feeding height

mm

1580

Concrete slump range

cm

12~23

Hydraulic system



close

Hydraulic system oil pressure

MPa

35

Change valve



S valve

Lubrication methods



automatic

Control mode



manual/remote

Pressure transition



automatic shift

Hydraulic oil tank capacity

L

830

Water tank capacity

L

600

Max.pressure of water pump

MPa

2

Placing boom & outrigger

Vertical reach height

m

46

Reach depth

m

31.37

Horizontal reach radius

m

41.8

Slewing circle

°

370

Structure type



5RZ

Stretching angle

I section

°

90

II section

°

180

III section

°

180

IV section

°

250

V section

°

250

Outrigger

Front outrigger



swing

Vertical span

mm

10195

Front span

mm

10320

Rear span

mm

10210

chassis

Chassis model



CYH51Y

Manufacturer



ISUZU

Engine model



6WF1D

Output power

Kw/(r/min)

287/1800

Max.torque

N.m(r/min)

1863/1100

Emission standard



Euro III

Displancement

L

14.256

Max.travel speed

Km/h

89

Max.grade ability

%

34

Min.turning diameter

m

23.8

Brake distance

m

≤10/30km/h

Wheel base

mm

1850+4605+1310

Track(front rear)

mm

2065/1850

Approach/departure angle

°

23/10

Min.ground clearance

mm

240

Tire size



295/80R22.5

Fuel tank capacity

L

400

Theoretical fuel consumption

L/100km

40
