- Summary
- Specifications
- Certification:ISO9001
- Model Number:HB46A
- Brand Name:XCMG
- Place of Origin:China
- Dimension(L*W*H):12665×2500×3990
- Weight:38270
- Power(W):287000
- Production Date:2010
- weight:38270.000kg
- Condition:Used
- Moving Type:Wheel
- Max.travel speed:89km/h
- Max.grade ability:34%
- Min.turning diameter:23.8m
- Min.ground clearance:240mm
- Fuel tank capacity:400L
- Displancement:14.256L
- Feeding height:1580mm
- Water tank capacity:830L

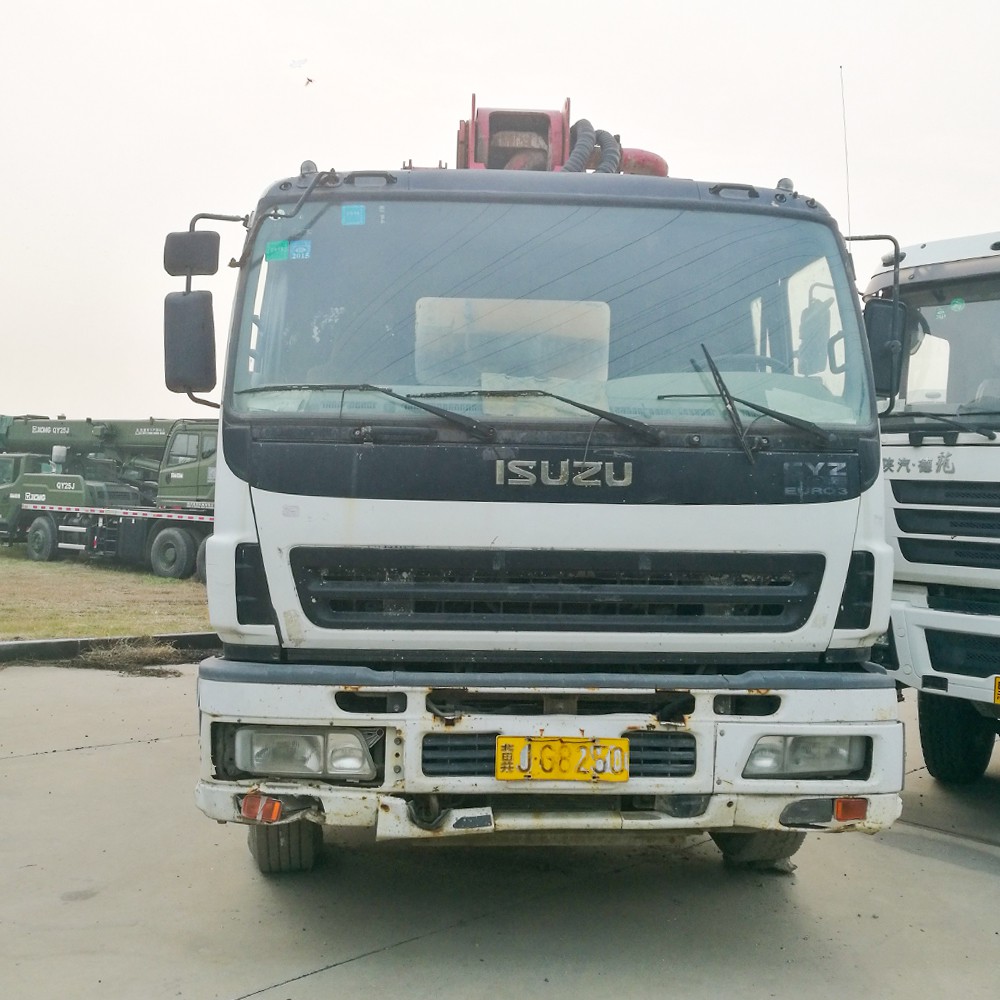

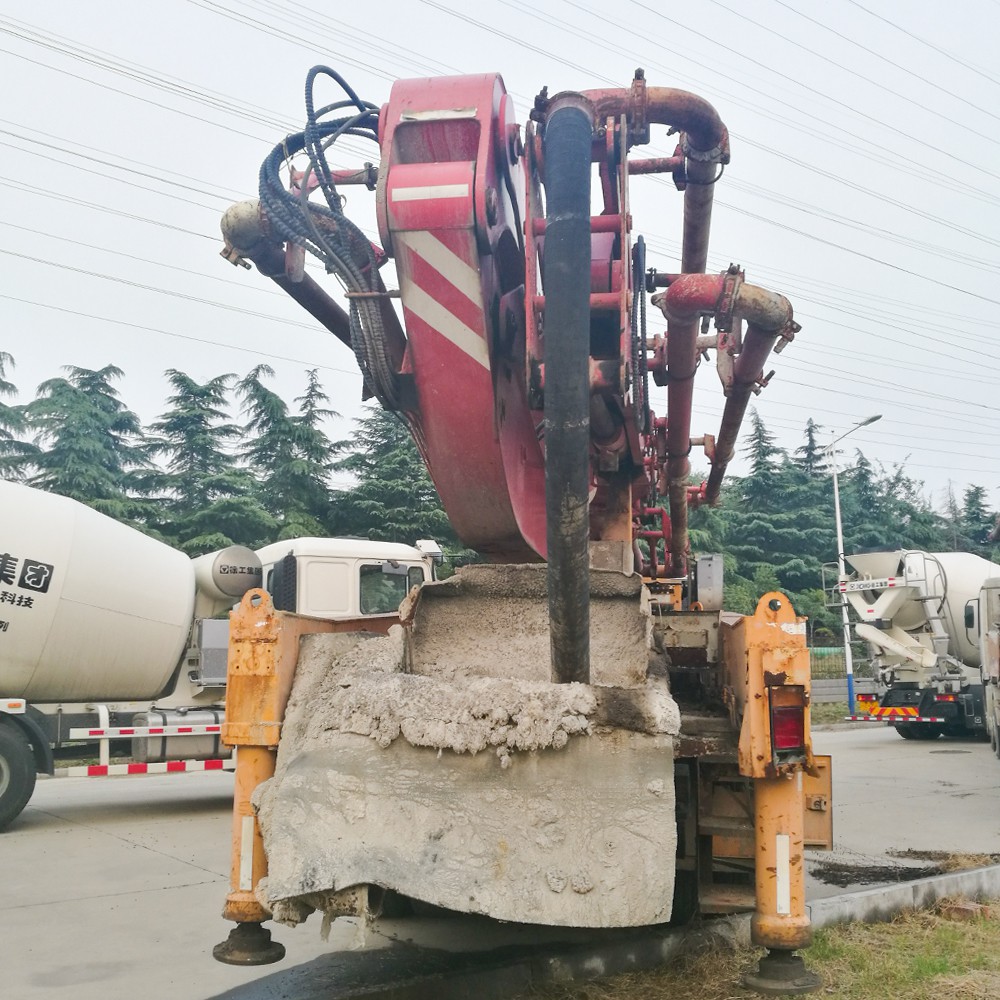

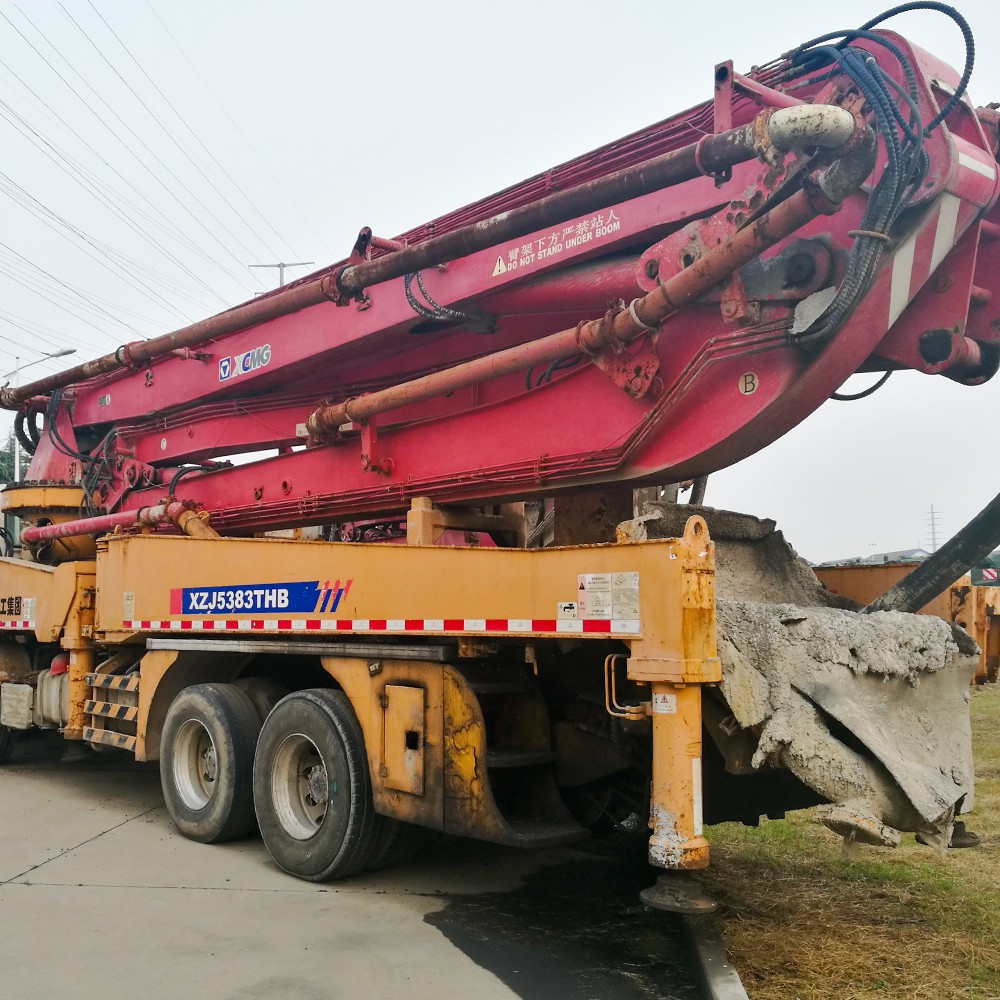

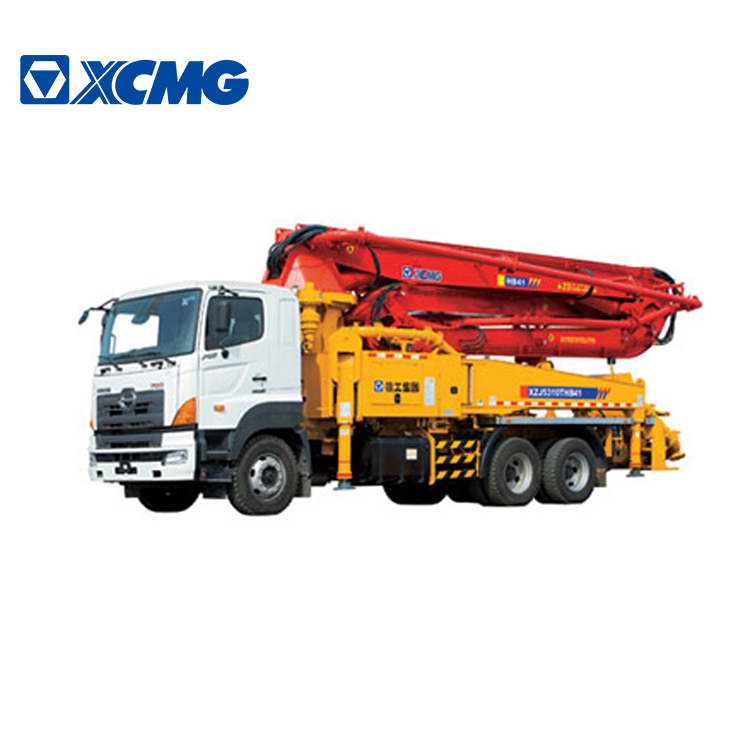

HB46A Truck-Mounted Concreted Boom Pumps
1、XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
2、It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ，More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
Brand |
| XCMG | ||
Vehicle parameter | Vehicle model |
| HB52A-I | |
Registed series# |
| XZJ5383THB | ||
Dimension(L×W×H） | mm | 12665×2500×3990 | ||
Total vehicle weight | kg | 38400 | ||
Pump System | Theoretical throughput(high/low) | m³/h | 90/150 | |
Delivery pressure(high/low) | MPa | 13/8 | ||
Strokes per minute | times/min | 13/22 | ||
Delivery cylinder diameter & stroke length | mm | 260×2200 | ||
Max.diameter of concrete aggregate | mm | ≤40 | ||
Feeding height | mm | 1580 | ||
Concrete slump range | cm | 12~23 | ||
Hydraulic system |
| close | ||
Hydraulic system oil pressure | MPa | 35 | ||
Change valve |
| S valve | ||
Lubrication methods |
| automatic | ||
Control mode |
| manual/remote | ||
Pressure transition |
| automatic shift | ||
Hydraulic oil tank capacity | L | 830 | ||
Water tank capacity | L | 600 | ||
Max.pressure of water pump | MPa | 2 | ||
Placing boom & outrigger | Vertical reach height | m | 46 | |
Reach depth | m | 31.37 | ||
Horizontal reach radius | m | 41.8 | ||
Slewing circle | ° | 370 | ||
Structure type |
| 5RZ | ||
Stretching angle | I section | ° | 90 | |
II section | ° | 180 | ||
III section | ° | 180 | ||
IV section | ° | 250 | ||
V section | ° | 250 | ||
Outrigger | Front outrigger |
| swing | |
Vertical span | mm | 10195 | ||
Front span | mm | 10320 | ||
Rear span | mm | 10210 | ||
chassis | Chassis model |
| CYH51Y | |
Manufacturer |
| ISUZU | ||
Engine model |
| 6WF1D | ||
Output power | Kw/(r/min) | 287/1800 | ||
Max.torque | N.m(r/min) | 1863/1100 | ||
Emission standard |
| Euro III | ||
Displancement | L | 14.256 | ||
Max.travel speed | Km/h | 89 | ||
Max.grade ability | % | 34 | ||
Min.turning diameter | m | 23.8 | ||
Brake distance | m | ≤10/30km/h | ||
Wheel base | mm | 1850+4605+1310 | ||
Track(front rear) | mm | 2065/1850 | ||
Approach/departure angle | ° | 23/10 | ||
Min.ground clearance | mm | 240 | ||
Tire size |
| 295/80R22.5 | ||
Fuel tank capacity | L | 400 | ||
Theoretical fuel consumption | L/100km | 40 | ||
