HB52
Specs & Compare
Details
Select 3 models for comparison
Certification
Model Number
Brand Name
Place of Origin
Dimension(L*W*H)
Weight
Power(W)
Production Date
Used Equipment
HB52
ISO9001
HB52
XCMG
China
13600×2500×4000
40870
287000
2011
+ Add a Product
+ Add a Product
Summary
- Certification:ISO9001
- Model Number:HB52
- Brand Name:XCMG
- Place of Origin:China
- Dimension(L*W*H):13600×2500×4000
- Weight:40870
- Power(W):287000
- Production Date:2011
Specifications
- weight:40870.000kg
- Condition:Used
- Moving Type:Wheel
- Max.travel speed:89km/h
- Max.grade ability:34%
- Min.turning diameter:23.8m
- Min.ground clearance:240mm
- Fuel tank capacity:400L
- Displancement:14.256L
- Feeding height:1580mm
- Water tank capacity:650L

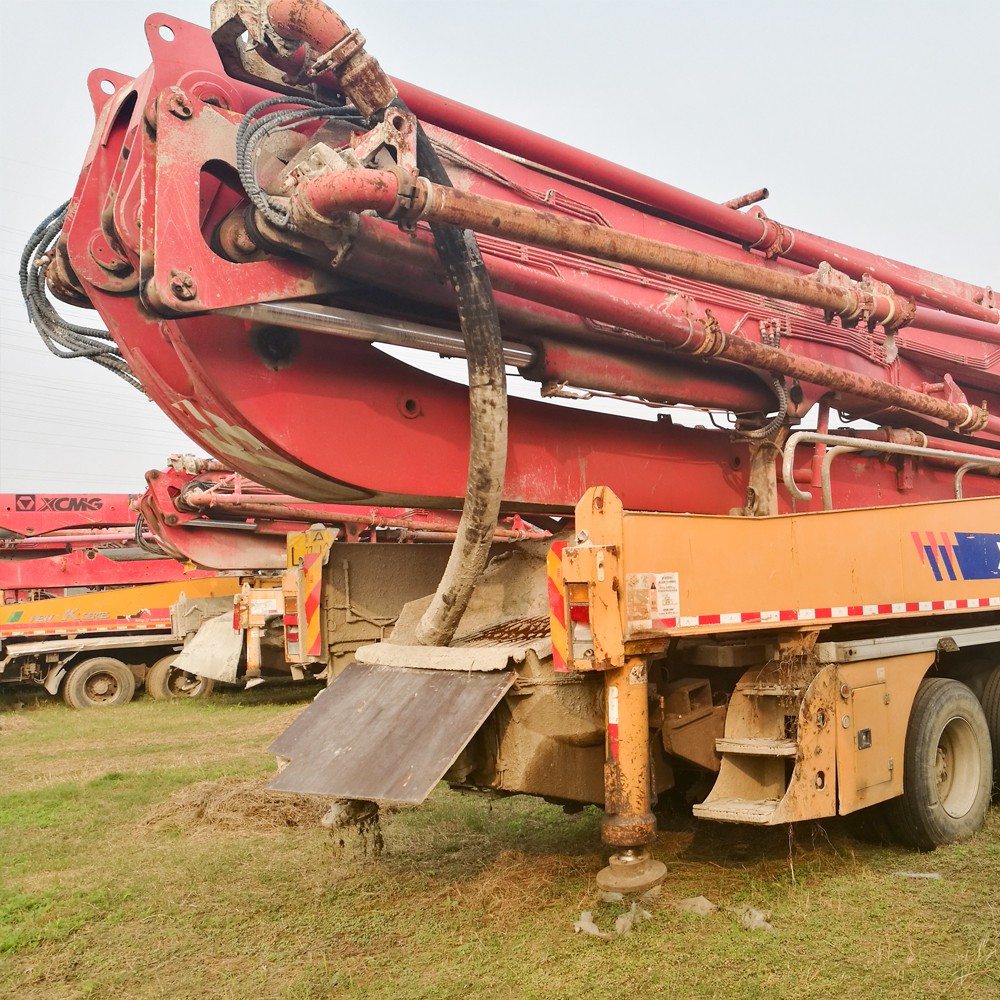

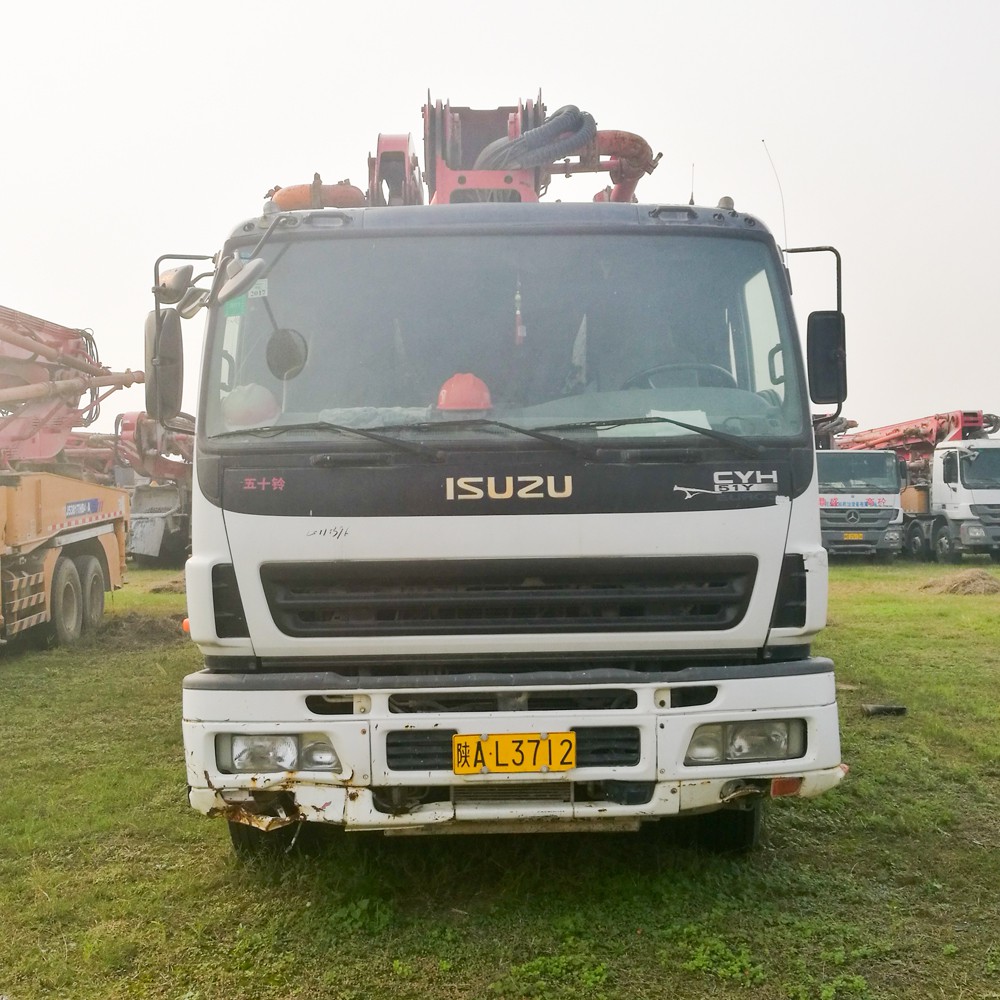

XCMG Used Cement Pump Truck HB52 Line Mini Cost Of Used Concrete Mixer Truck

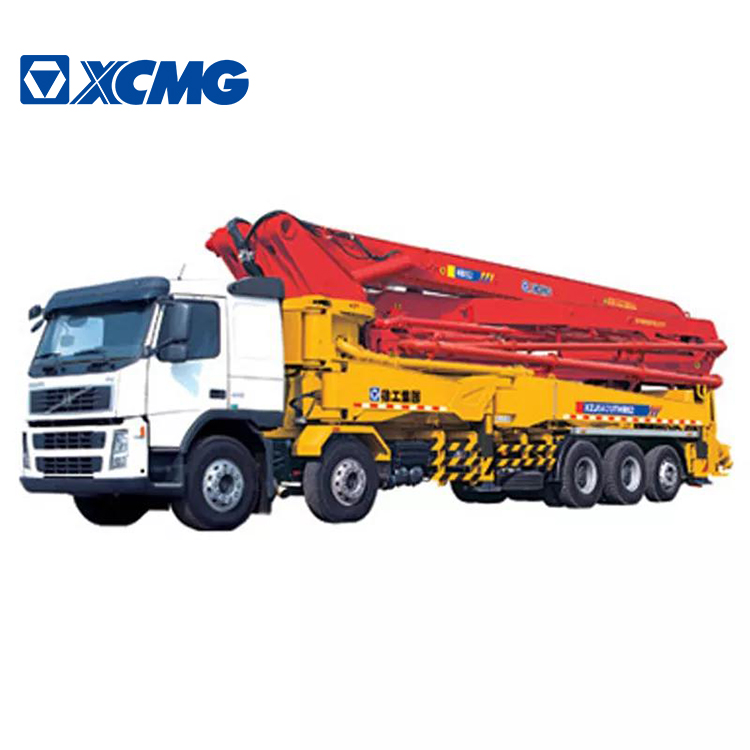

1、XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
2、It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ，More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
| Travel | |||
| Category | Item | Unit | Parameter |
| Chassis | Max. speed | km/h | 90 |
| Max. gradeability | 38% | ||
| Min. turning diameter | m | 27.4 | |
| Brake distance | m | ≤10 | |
| Wheelbase | mm | 1995+5205+1370+1450 | |
| Approach angle/departure angle | . | 12/18 | |
| Min. clearance | mm | 270 | |
| Tyre specification | 12.00R20 | ||
| Engine | Model | D13 | |
| Output power | kw/(r/min) | 324/1400~1800 | |
| Max. torque | N.m/(r/min) | 2200/1050~1400 | |
| Displacement | l | 12.8 | |
| Emission Standard | Nation III GBⅢ | ||
| Others | Dimension (Length×Width×Height) | mm | 14665×2500×3990 |
| Total vehicle weight | kg | 47000 | |
| Fuel tank capacity | l | 410 | |
| Fuel consumption per 100km | l/100km | 50 | |
| Pumping operation | |||
| Pumping system | Theoretical output(high pressure/low pressure) | m³/h | 90/138 |
| Concrete pumping pressure(high pressure/low pressure) | Mpa | 13/8.7 | |
| Theoretical pumping times(high pressure/low pressure) | Times/min | 18/27 | |
| Max. diameter of pumping concrete aggregate | 40 | ||
| Feeding height | 1450 | ||
| Placing boom | Pumping slump range | 12/23 | |
| Reach height | 51.5 | ||
| Reach depth | 40 | ||
| Slewing radius | 47.5 | ||
| Slewing angle | 364 | ||
| 1st boom stretch angle | 96 | ||
| 2nd boom stretch angle | 180 | ||
| 3rd boom stretch angle | 180 | ||
| 4th boom stretch angle | 180 | ||
| 5th boom stretch angle | 260 | ||
| Outrigger spanOverall outrigger span | 11020±50 | ||
| Front outrigger transverse span | 10730±50 | ||
| Rear outrigger transverse span | 10430±50 | ||
| Others | Dosing type | S valve | |
| Lubricating method | Automatic lubrication | ||
| Controlling method | Manual/remote control | ||
| Water tank capacity | 650 | ||
| Max. pressure of water pump | 2 | ||
XCMG STORY
XCMG RECONDITIONED MACHINE
XCMG reconditioned machine is the second-hand machine program launched by XCMG for the
post market. XCMG takes advantage of its dealers network to collect the second-hand XCMG
machine that falls into strict standards: good condition, full function and low service hours. The
returned machine is then disassembled, repaired, painted, rebuilt and tested officially by XCMG,
and the product life is therefore extended. The price of XCMG reconditioned machine is far
lower than that of the new one, but its performance and safety are not compromised thanks to
XCMG's state-of-the-art processes and technologies. In order to dispel customers' concerns,
XCMG establishes a strict evaluation system for reconditioned machines and invites SGS to issue
third-party certification.
OUR TEAM
150+ SPECIALISTS
150+ specialists participate in the reconditioning process.
Inspection Team
Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine.
Reconditioning and Repairing Team
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
Issuing Report Team
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
OUR FACTORY
REMANUFACTURING FACTORY
RECONDITION PROCESSES
RECONDITION PROCESSES OF THE USED
We maintain a meticulous and rigorous attitude toward quality, focusing on extraordinary creativity,
elaborate designs and exquisite craftsmanship.
COLLECTION
Examine the working conditions, conduct static and dynamic assessment on the used machine. Only machines with
light deprecation, low working hours and full functions can be collected.
INSPECTION
Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the
machine. More than 300 details are checked and compared to XCMG standard. Recondition plan is then decided.
RECONDITIONING AND REPAIRING
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
TESTING
Follow the test procedure, ensure the performance and durability of the machine. Unqualified products are returned to step 3.
READY FOR DELIVERY
Ready for Delivery!!!
ISSUING REPORT
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
PAINTING
The whole machine is repainted to restore its appearance. Bright as new.
FAQ
FREQUENTLY ASKED QUESTIONS
1.What’s the warranty policy for XCMG reconditioned machines?
The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump,
distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first.
If there is any problem within warranty period, XCMG will provide solutions accordingly.
2.How about the quality of your machine?
The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines
will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.
3.Are you the original manufacturer?
Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.
4.Can you satisfy my special requirement?
As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).
5.What is accpetable payment terms?
Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
If any other questions, please feel free to contact with us.
If any other questions, please feel free to contact with us.
