Summary
- Rated Load:5000kg
- Dimension(Long* Breadth * High):7910*3016*3515mm
- Type:Front Loader
- Place of Origin:China
- Model Number:ZL50FV
- Brand Name:XCMG
- Certification:CE, ISO, SGS, BV,TUV, ETC
Specifications
- Weight:16900.000kg
- Moving Type:Other
- Engine Brand:SHANGCHAI
- Rated Load:6-10 ton
- Bucket Capacity:2.5 - 3.5m³
- Machine Weight:16900kg
- Engine Brand:Shangchai
- Power:250KW
- Bucket capacity:2.5~4M3
- dump clearance at max lift:3150~3560mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

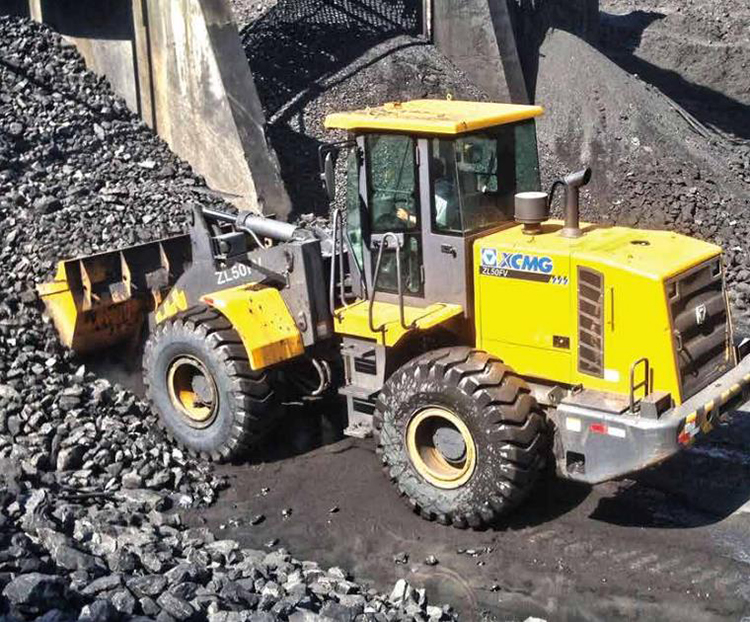

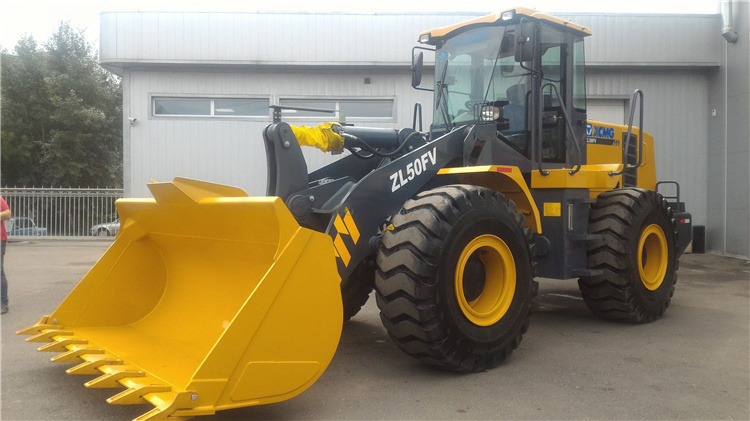

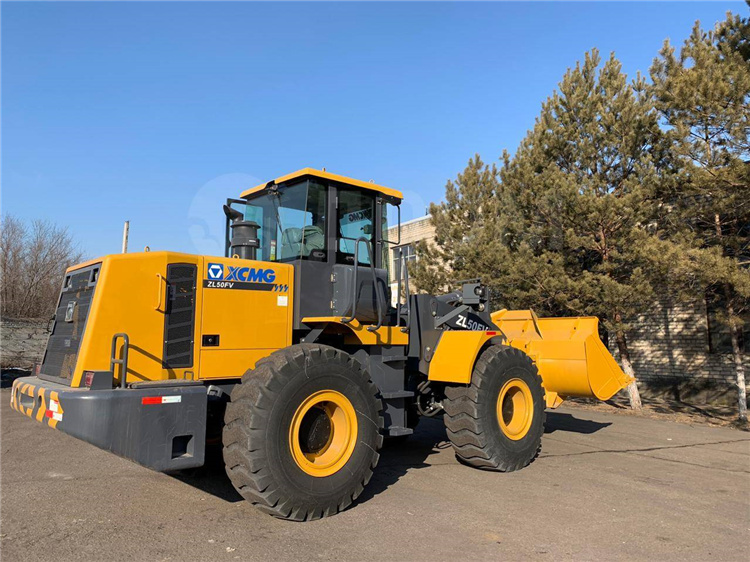

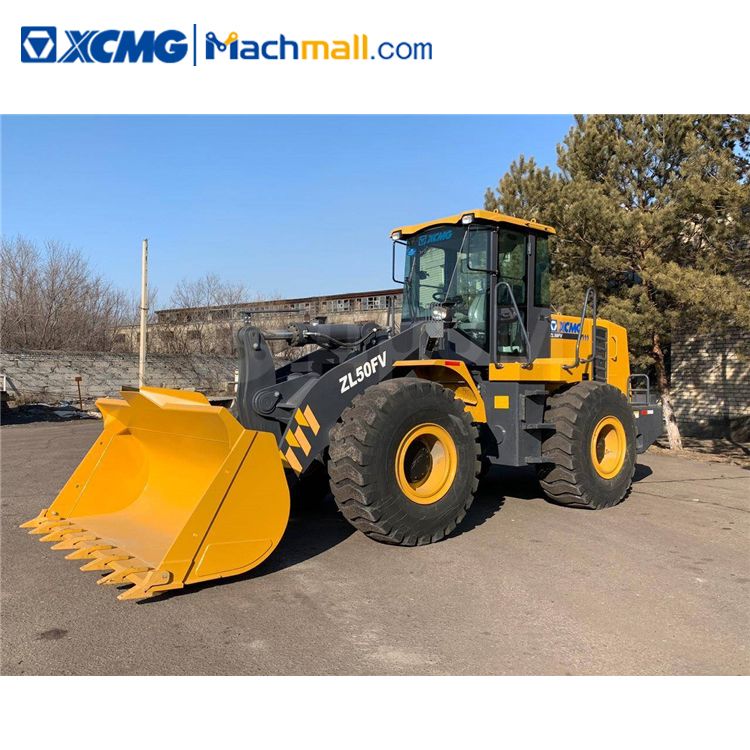

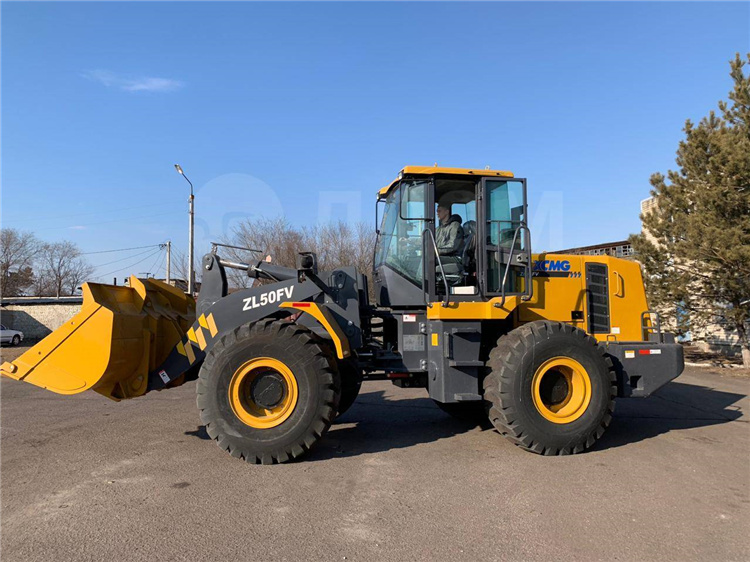

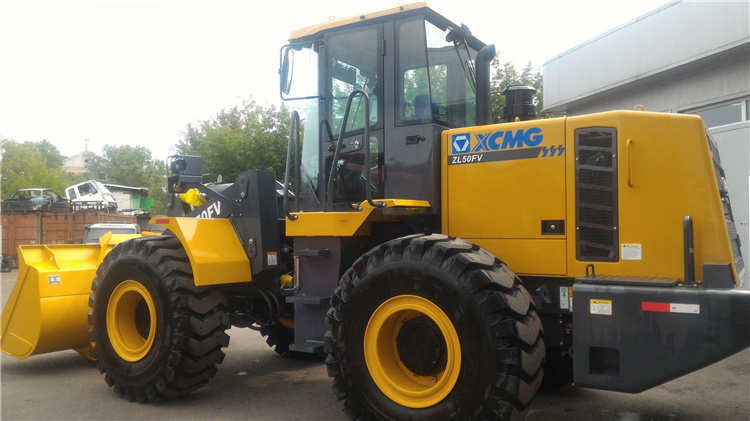

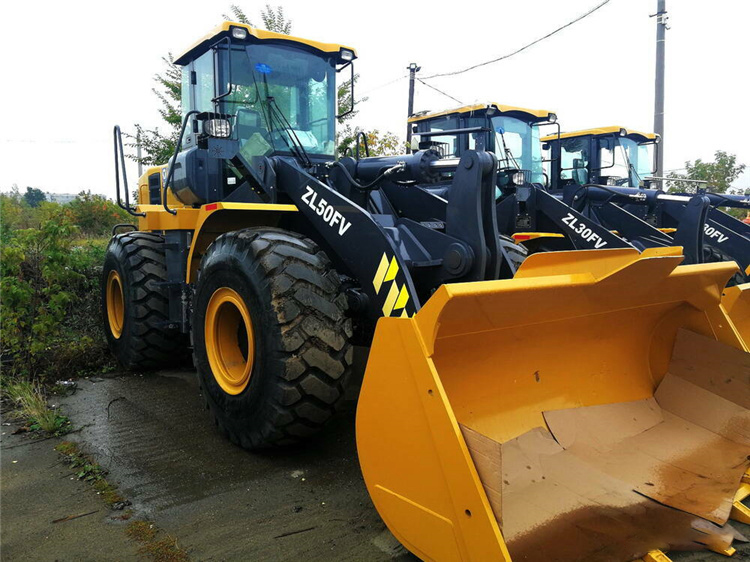

XCMG Official 5 ton ZL50FV Multifunctional Wheel Loader.
XCMG wheel loader ZL50FV is the latest cross-generation product developed by XCMG on the basis of the globalized technologic resources.
XCMG Wheel Loader Characteristics：
1. The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.
2. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.
3. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.

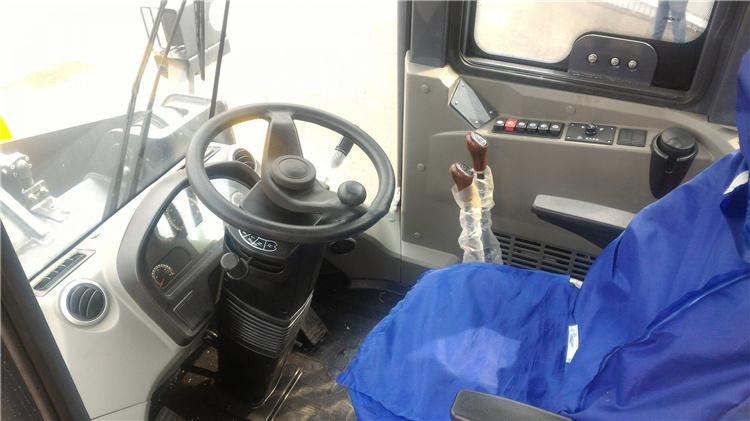

4. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
5. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
Performance Highlights：
1. The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
2. ≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.
|
Description |
Unit |
Parameter value |
|
|
Rated operating load |
kg |
5000 |
|
|
Bucket capacity |
m³ |
2.5~4.5 |
|
|
Machine weight |
kg |
16900 |
|
|
Dump clearance at maximum lift |
mm |
3150~3560 |
|
|
Reach at maximum lift |
mm |
1100~1190 |
|
|
Wheel base |
mm |
2960 |
|
|
Tread |
mm |
2250 |
|
|
Max.breakout force |
kN |
170 |
|
|
Max.horse power |
kN |
160±5 |
|
|
Hydraulic cycle time-raise |
s |
≤6 |
|
|
Total hydraulic cycle time |
s |
≤10.5 |
|
|
Min. turning radius over tyres |
mm |
5950 |
|
|
Articulation angle |
° |
35 |
|
|
Gradeability |
° |
28 |
|
|
Tyre size |
23.5-25-16PR |
||
|
Overall machine dimension L×W×H |
mm |
7910*3016*3515 |
|
|

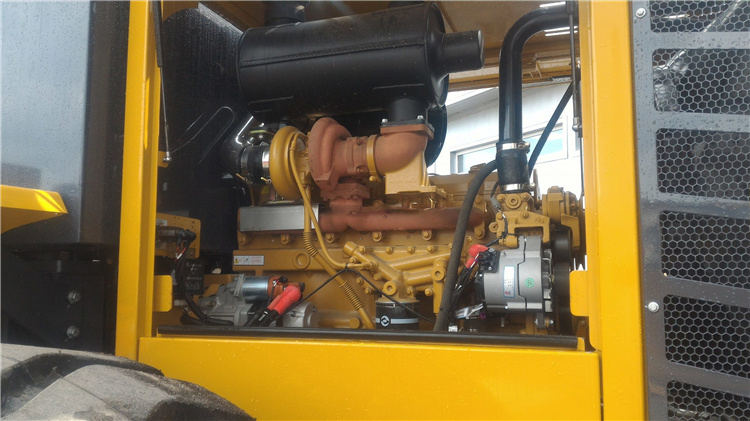

Model |
SC9DK220G3 |
||
|
Rated Power |
kW |
250 |
|
|
Travel Speed |
Ⅰ-gear(F/R) |
km/h |
40 |
|
Ⅱ-gear(F) |
km/h |
/ |
|
