- Summary
- Details
- Rated Load:1080
- Dimension(Long*Breadth*High):3610*2000*1960mm

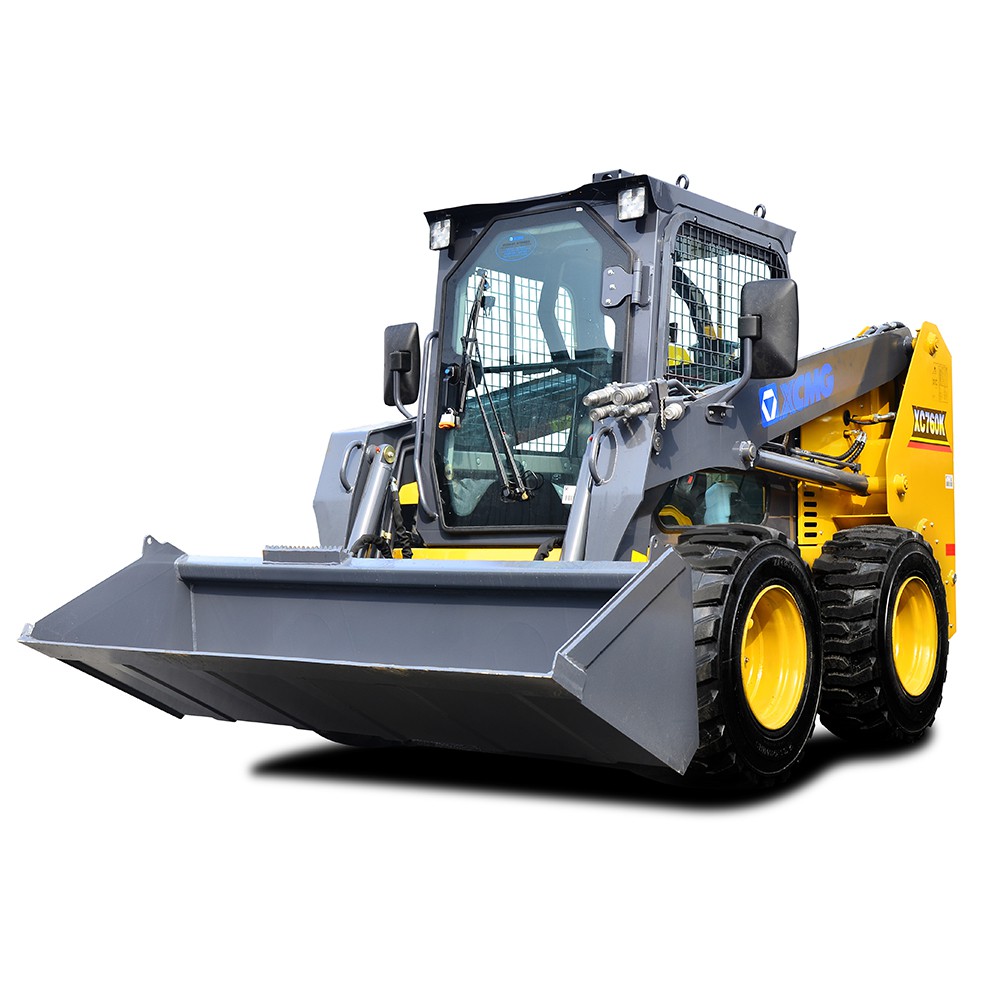

- Type:Skid steer loader
- Place of Origin:China
- Model Number:XC760K
- Brand Name:XCMG
- Certification:CE/ISO9001
- Product Name:G5B6BDFB0A6FFC
- Display online time:2019-11-07
- weight:3450.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Rated load:1080kg
- Tipping load:2160kg
- Operating weight:3450/3700/3650kg
- Maximum breakout force:22kN
- Engine Model:YANMAR 4TNV98T/Weichai WP4G80E231
- Rated power:82.2/61.3 80/60
- Rated speed:2500rpm/2300rpm
- Tire standard:12-16.5
- Maximum speed:12.5km/h
- Maximum operating height:4180mm
- Maximum horizontal height of bucket bottom:2997mm
- Wheel base:1188mm
XC740K Skid steer loader
1、The renowned brand engine equipped features strong power,
ultra-low emission, and higher fuel efficiency.
|
Description |
Unit |
Parameter value |
||||
|
Rated load |
kg |
1080 |
||||
|
Tipping load |
kg |
2160 |
||||
|
Operating weight |
kg |
3450 |
3700 |
3650 |
||
|
Maximum breakout force |
kN |
22 |
||||
|
Engine |
Manufacturer |
YANMAR |
Weichai |
|||
|
Model |
4TNV98T |
WP4G80E231 |
WP4.1G82E301 |
|||
|
Rated power |
Hp/kw |
82.2/61.3 |
80/60 |
80/60 |
||
|
Rated speed |
rpm |
2500 |
2300 |
2400 |
||
|
Cooling mode |
Water-cooling |
|||||
|
Performance parameter |
Operation mode |
Pilot hydraulic control & multi-function electronic control |
||||
|
Tire standard |
12-16.5 |
|||||
|
Maximum speed |
Km/h |
12.5 |
||||
|
Hydraulic system |
Hydraulic flow rate |
L/min |
95 |
87.4 |
91.2 |
|
|
Optional large flow |
142.5 |
131 |
136.8 |
|||
|
Hydraulic pressure |
bar |
210 |
||||
|
Maximum operating height |
mm |
4180 |
||||
|
Bucket hinge pin height |
mm |
3205 |
||||
|
Cabin top height |
mm |
1960 |
||||
|
Maximum horizontal height of bucket bottom |
mm |
2997 |
||||
|
Length without bucket |
mm |
2660 |
||||
|
Length with bucket |
mm |
3610 |
||||
|
Toppling angle |
° |
40 |
||||
|
Maximum unloading height |
mm |
2450 |
||||
|
Ground-bucket angle |
° |
30 |
||||
|
Rotating angle of bucket at highest point |
° |
83 |
||||
|
Unloading distance |
mm |
570 |
||||
|
Wheel base |
mm |
1188 |
||||
|
Departure angle |
° |
25 |
||||
|
Ground clearance |
mm |
205 |
||||
|
Front radius of
turning circle (without bucket ) |
mm |
1320 |
||||
|
Front radius of
turning circle (with bucket) |
mm |
2230 |
||||
|
Rear radius of
turning circle |
mm |
1715 |
||||
|
Length of tail |
mm |
1055 |
||||
|
Wheel track |
mm |
1500 |
||||
|
Tire edge width |
mm |
1807 |
||||
|
Bucket edge width |
mm |
2000 |
||||
|
Bucket capacity
(stacking height) |
m³ |
0.6 |
||||
|
Bucket capacity
(tiling) |
m³ |
0.47 |
||||
|
Diesel tank
capacity |
L |
95 |
||||
|
Capacity of
hydraulic oil tank |
L |
70 |
||||
