XCMG Electric Stacker Forklift XCS-P16 1.6 ton small walking pallet stacker price
Specifications
- weight:1600.000kg
- Max Lifting Height:5430mm
- Rated Loading Capacity:1600kg
- Model Number:XCS-P16
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

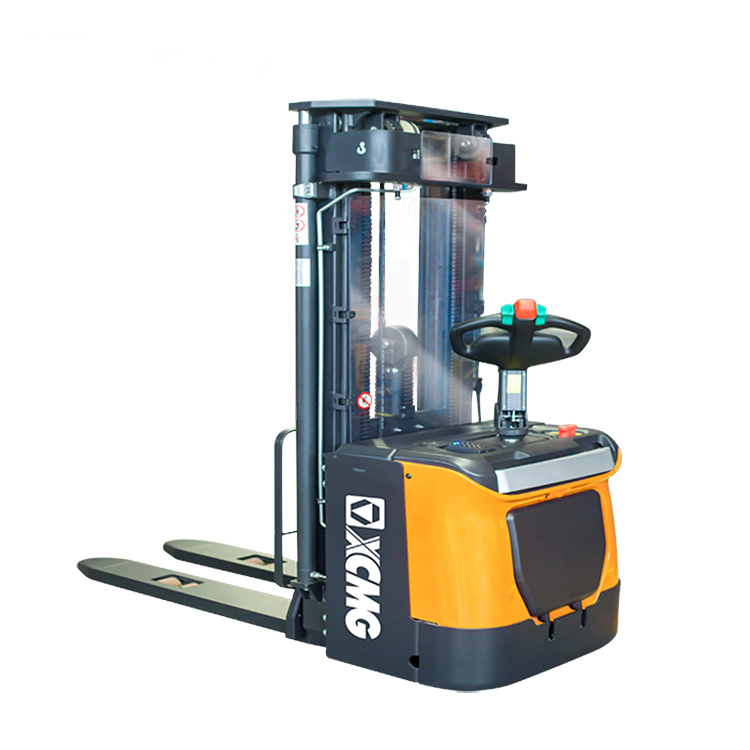

XCMG Electric Stacker Forklift
XCS-P16 1.6 ton small walking pallet stacker price
• Full AC
System
• OPS System
(Sit-in type)
• EPS
Steering System
• Electromagnetic
Braking system
• Lower
Energy Consumption

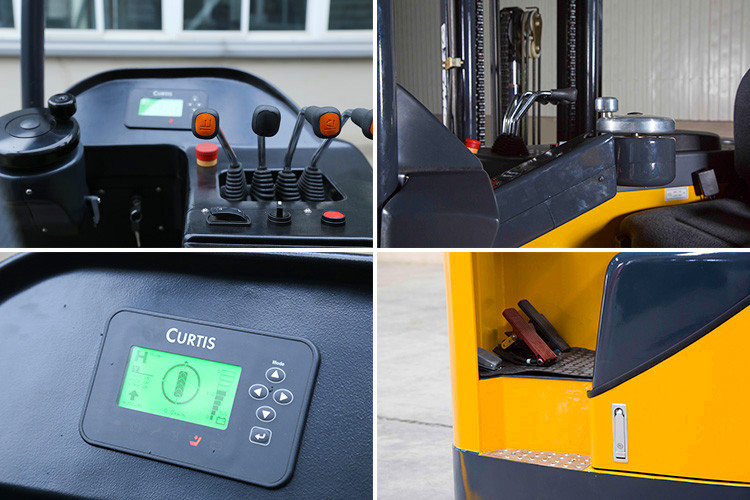

• Easy-to-read
operator display
• Assistance
System to fit in your specific working condition
Ergonomic
design and high performance supported by innovative technology help
XCMG reach trucks become the perfect solution for various
application. Whether use in operating in pallet, drive-through or drive-in
racking.
Whether for
narrow areas or low clearances. XCMG reach truck will always be your good
assistant in stacking.
|
特性（character） |
|||
|
型号(Model) |
XCS-P16 |
||
|
额定承载能力(Rated capacity) |
Q |
kg |
1600 |
|
载荷中心距（load center distance） |
C |
mm |
600 |
|
动力方式(Power mode) |
电动 |
||
|
电池标准（battery standard） |
3VBS |
||
|
轮胎形式(Tyre type) |
聚胺酯轮(PU) |
||
|
尺寸（Size） |
|||
|
门架最低高度(Lowered mast height) |
h1 |
mm |
2410 |
|
自由提升高度（Free Lift height） |
h2 |
mm |
1820 |
|
最大起升高度(Max.liftingheight) |
h3 |
mm |
5430 |
|
作业时门架最大高度(Extended mastheight) |
h4 |
mm |
6110 |
|
总长( Length) |
l1 |
mm |
1896 |
|
车长( Length to face of forks) |
l2 |
mm |
746 |
|
总宽(Width) |
b1 |
mm |
790 |
|
货叉尺寸 (Fork dimensions) |
s/e/l |
mm |
60/180/1150 |
|
货叉外间距(Distance between fork-arms) |
b5 |
mm |
570/ 685 |
|
直角堆垛通道宽度,托盘800X1200（Aisle width for pallets 800X1200 lengthways ） |
Ast |
mm |
2290 |
|
前悬距（Load distance, centre of drive axle to fork） |
X |
mm |
647 |
|
轮距(Wheel base) |
y |
mm |
1215 |
|
转向轮尺寸（Additional wheels dimensions） |
xw |
mm |
150x54 |
|
轮距，驱动侧（Tread,front） |
b10 |
510 |
|
|
轮距（Tread rear ） |
b11 |
mm |
390/505 |
|
操作手柄在中立位置时的高度（Handel height） |
h14 |
mm |
950/1350 |
|
门架缩回时高度（Height,lowered） |
h13 |
mm |
90 |
|
最小转弯半径(Min.Turning radius) |
Wa |
mm |
1420 |
|
性能(Performance) |
|||
|
行驶速度 (满载/空载) (Travelling speed loaded/unloaded) |
km/h |
6.0 / 7.0 |
|
|
提升速度（满载/空载）（Lift speed,loaded/unloaded） |
m/s |
0.13/ 0.20 |
|
|
下降速度（满载/空载）（Lowering speed,loaded/unloaded） |
m/s |
0.28/ 0.23 |
|
|
爬坡能力（满载/空载）（Gradeability,loaded/unloaded） |
% |
6.0/12.0 |
|
|
行车制动（Braking method） |
电磁制动 |
||
|
电机和蓄电池(Motor&Battery) |
|||
|
提升电机功率(Lift motor power) |
kw |
3.2 |
|
|
驱动电机功率(Drive motor power) |
kw |
1.4 |
|
|
电压(Voltage) |
V |
24 |
|
|
容量(Amphere) |
Ah |
210/270 |
|
