XCMG optimized 20 ton truck crane XCT20L4 Chinese telescopic boom lifting crane truck price

View All >

Model： XCT20L4

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG optimized 20 ton truck crane XCT20L4 Chinese telescopic boom lifting crane truck price

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XCT20L4

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

XCT20L4

XCMG

Jiangsu, China

7900mm

65000mm

900Kn.m

20000kg

CE/ISO9001

+ Add a Product

Summary

Model Number:XCT20L4
Brand Name:XCMG
Place of Origin:Jiangsu, China
Span:7900mm
Max. Lifting Height:65000mm
Rated Lifting Moment:900Kn.m
Rated Loading Capacity:20000kg
Certification:CE/ISO9001

Specifications

weight:20000.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

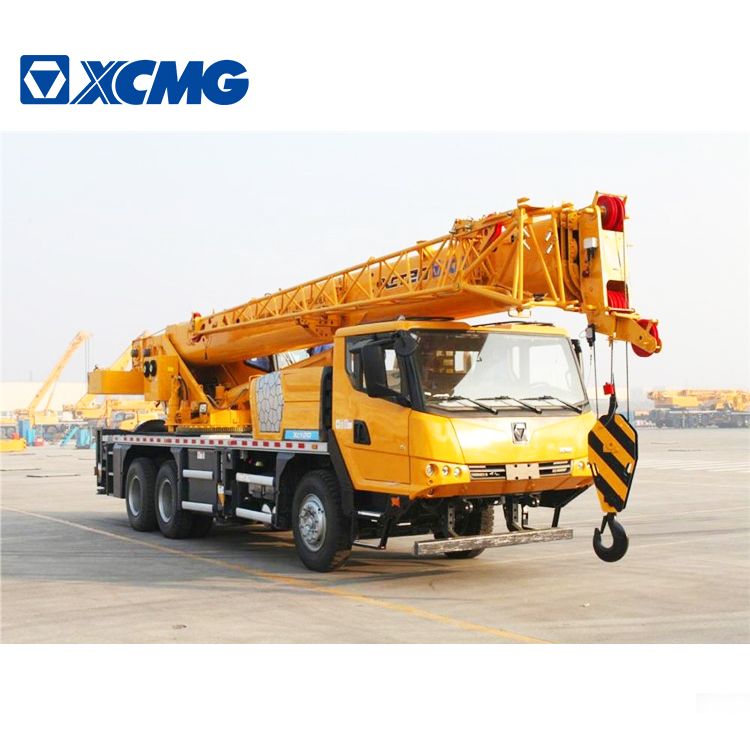

XCMG optimized 20 ton truck crane XCT20L4 Chinese telescopic boom lifting crane truck price

XCMG optimized 20 ton truck crane XCT20L4 Chinese telescopic boom lifting crane truck.

XCT20 Truck Crane is an efficient, economic and applicable brand new product designed on basis of XCMG G generation R&D platform. With 3-axle self-made special chassis, 4-section boom, built-in double independent winch and power system with low speed and large torque, this crane has industry-leading lifting height, lifting capacity and working efficiency.

1.360° full slewing operation and powerful lifting performance

Optimized matching of whole crane according to multi-body dynamics is adopted, reasonable arrangement and optimum applied force.

2.New energy-saving hydraulic system contributes to smooth manipulation, perfect fine control and high working efficiency.

Exclusive matching throttle with compensation afterwards and load-sensitive technology results in the higher stability of the lowest system flow, more reasonable system rigidity, more outstanding fine control and smoothness.

3.Integrated PLC control system contributes to higher reliability of products and more convenient maintenance.

XCMG optimized 20 ton truck crane XCT20L4 Chinese telescopic boom lifting crane truck price

Category	Item	Unit	XCT12L4
Dimension	Overall length	mm	10900
	Overall width	mm	2500
	Overall height	mm	3550
Weight	Total weight in travel	kg	16000
Power	Engine model		SC7H230Q4/WP6.220E40
	Engine rated power	kW/(r/min)	170/2300 162/2300
	Engine rated torque	N.m/(r/min)	900/1400 850/1400-1600
Travel	Max. travel speed	km/h	90
	Min. turning diameter	m	18
	Min. ground clearance	mm	250
	Approach angle	°	21
	Departure angle	°	13
	Max. grade ability	%	41
	Fuel consumption for 100km	L	25
Main performance	Max. rated total lifting capacity	t	12
	Min. rated working radius	m	3
	Turning radius at turntable tail	m	2.57
	Max. lifting torque	kN.m	482.5
	Base boom	m	9.5
	Max.main boom	m	30.9
	Max.main boom+jib	m	38.1
Turning radius at turntable tail	Counterweight	mm	2570
Turning radius at turntable tail	Auxiliary winch	mm	2910
Max. load moment	Base boom	t.m	48.25
Max. load moment	Fully-extended boom	t.m	27.6
Outrigger span(fully-extended)	Longitudinal	m	4.57
Hoist height	Lateral	m	5.5
	Base boom	m	9.5
	Fully-extended boom	m	30.9
Boom length	Fully-extended boom + Jib	m	38.1
	Base boom	m	9.45
	Fully-extended boom	m	30.5
	Fully-extended boom + Jib	m	30.5+7

XCMG optimized 20 ton truck crane XCT20L4 Chinese telescopic boom lifting crane truck price
