XCMG Official 220 Ton Mobile Lifting Crane XCT220 China Mobile Crane Price, MACHMALL

Engineering & Construction Machinery > Engineering & Construction Crane > Truck Crane

XCMG Official 220 Ton Mobile Lifting Crane XCT220 China Mobile Crane Price

View All >

Model： XCT220

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official 220 Ton Mobile Lifting Crane XCT220 China Mobile Crane Price

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XCT220

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

XCT220

XCMG

China

8.5m

107m

6820kNm

220t

Construction

CE/ISO9001

+ Add a Product

Summary

Model Number:XCT220
Brand Name:XCMG
Place of Origin:China
Span:8.5m
Max. Lifting Height:107m
Rated Lifting Moment:6820kNm
Rated Loading Capacity:220t
Application:Construction
Certification:CE/ISO9001

Specifications

weight:220000.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG Official 220 Ton Mobile Lifting Crane XCT220 China Mobile Crane Price

XCMG Official 220 Ton Mobile Lifting Crane XCT220 China Mobile Crane.

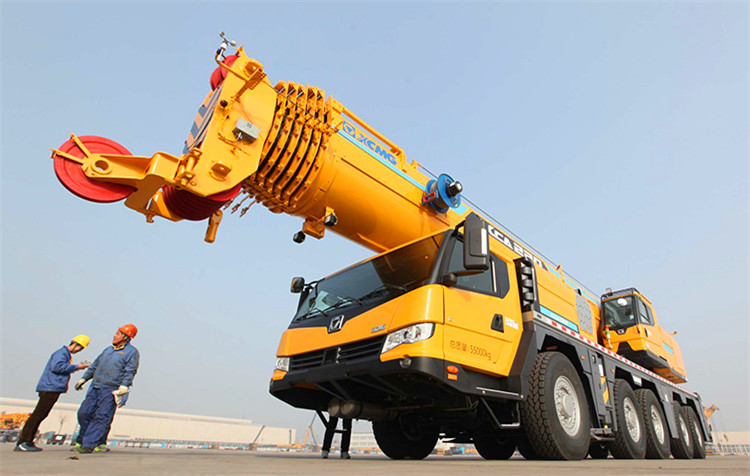

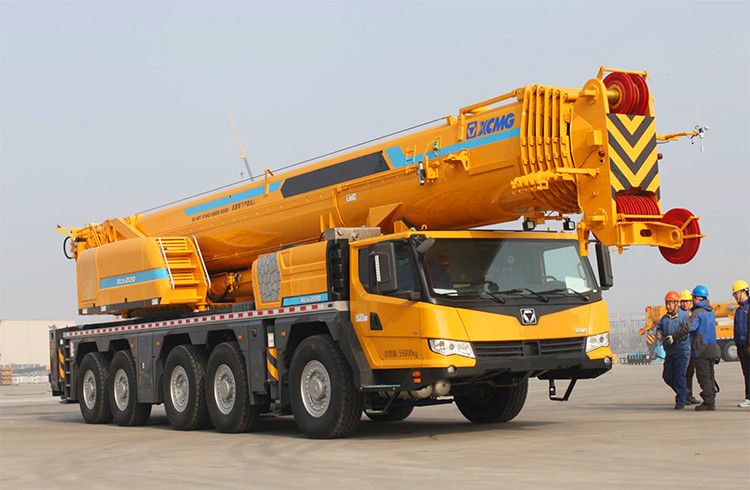

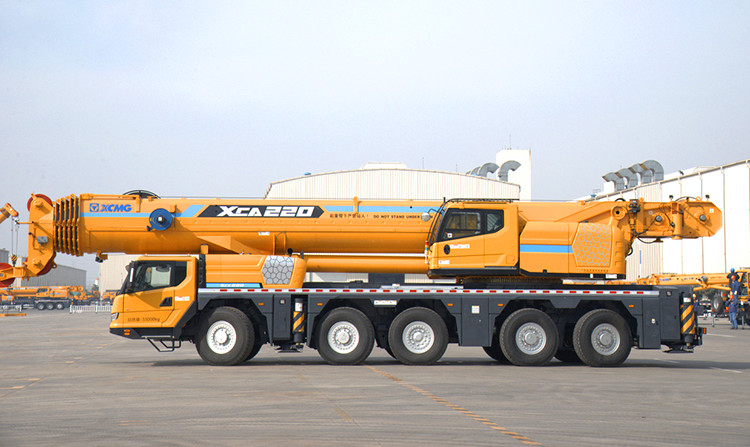

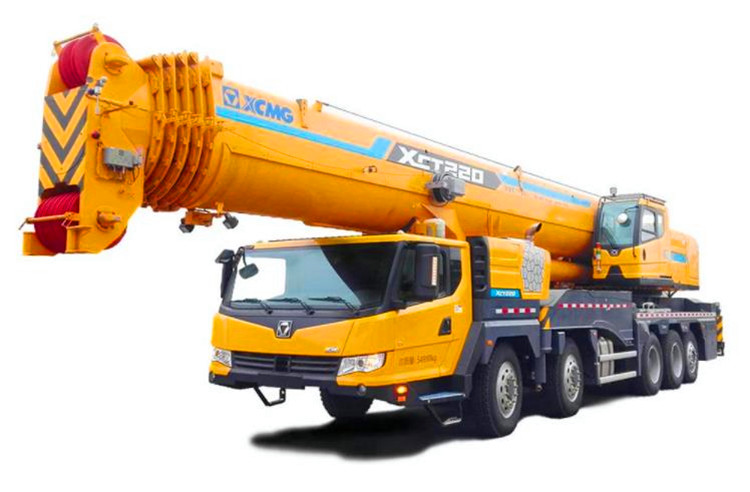

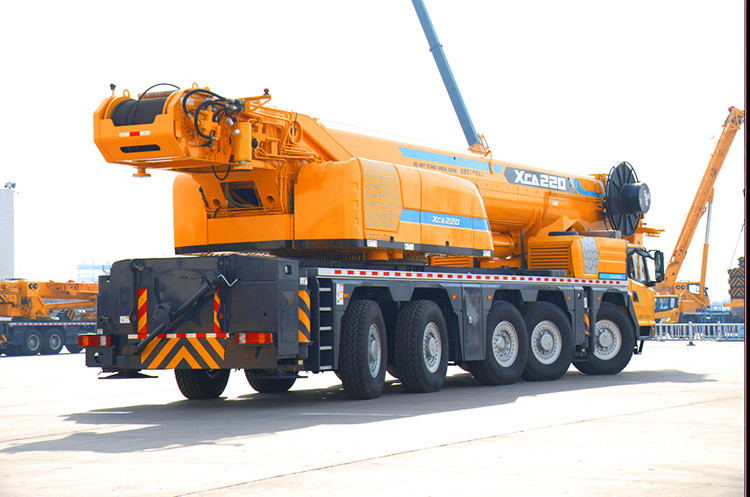

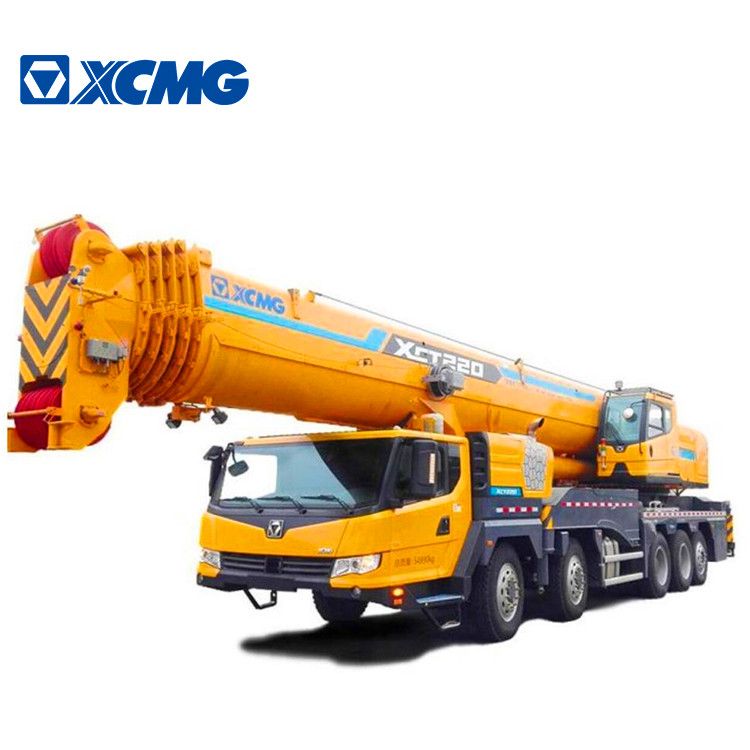

The crane is a five-axle 220 t All Terrain Crane with leading lifting performance.

Advantages and highlights:

1. Power and traveling performance * Diesel engine, rated power 360kw, max. torque 2200N.m. * 12-speed ZF automatic gearbox. * Max. travel speed 84Km/h, Max. grade ability 67%.

2. Large tonnage crane's mono-engine system * The whole vehicle shares the chassis engine. The power is transferred via the mechanic transmission to the upper body and supplies it with the power. * Maintenance is to be carried out only on the mono-engine chassis system thus reducing the workload of maintenance. The annual maintenance cost of dynamic system is saved for more than 40%.

3. New highly efficient energy-saving hydraulic system * Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly. * Mature double-variable mechanism with fine control tactic, matching perfectly stably. * Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.

XCMG Official 220 Ton Mobile Lifting Crane XCT220 China Mobile Crane Price

Item		Specification	Unit
Overall Length		16721	mm
Overall Width		2990	mm
Overall Height		3930	mm
Total vehicle mass in travel configuration		54990	kg
Engine rated power		356/1900	kw/(r/min)
Engine rated torque		2300/1400	N.m/(r/min)
Max. travel speed		≥85	km/h
Min. turning diameter		≤24	m
Min. ground clearance		327	mm
Approach angle		18	°
Departure angle		13	°
Braking distance (at 30 km/h, full load )		≤10	m
Oil consumption per 100km		≤37	L
Exterior noise level during acceleration traveling		≤88	dB (A)
Noise level at seated position		≤90	dB (A)
Max. rated total lifting capacity		220	t
Min. rated working radius		3000	mm
Turning radius at turntable tail		3065	mm
Max. load moment	Base boom	7431	KN.m
Max. load moment	Fully-extended boom	3423	KN.m
Outrigger Span	Longitudinal	8.1	m
Outrigger Span	Lateral	8.3	m
Boom Length	Base boom	14.4	m
	Fully-extended boom	68.2	m
	Fully-extended boom+Jib	106.8	m
Jib offset angle		0, 20, 40	°
Time for boom raising		≤60	s
Time for boom extending fully		≤660	s
Max. slewing speed		≥1.5	r/min
Exterior noise level		≤120	dB (A)
Noise level at seated position		≥130	dB (A)
