XCMG Official 50 Ton Hydraulic Crane Truck XCT50_Y China New Hydraulic Crane Price, MACHMALL

Engineering & Construction Machinery > Engineering & Construction Crane > Truck Crane

XCMG Official 50 Ton Hydraulic Crane Truck XCT50_Y China New Hydraulic Crane Price

View All >

Model： XCT50_Y

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official 50 Ton Hydraulic Crane Truck XCT50_Y China New Hydraulic Crane Price

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XCT50_Y

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

XCT50_Y

XCMG

China

7.1m

59.5m

50t

Construction

CE/ISO9001

+ Add a Product

Summary

Model Number:XCT50_Y
Brand Name:XCMG
Place of Origin:China
Span:7.1m
Max. Lifting Height:59.5m
Rated Loading Capacity:50t
Application:Construction
Certification:CE/ISO9001

Specifications

weight:50000.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG Official 50 Ton Hydraulic Crane Truck XCT50_Y China New Hydraulic Crane Price

XCMG Official 50 Ton Hydraulic Crane Truck XCT50_Y China New Hydraulic Crane.

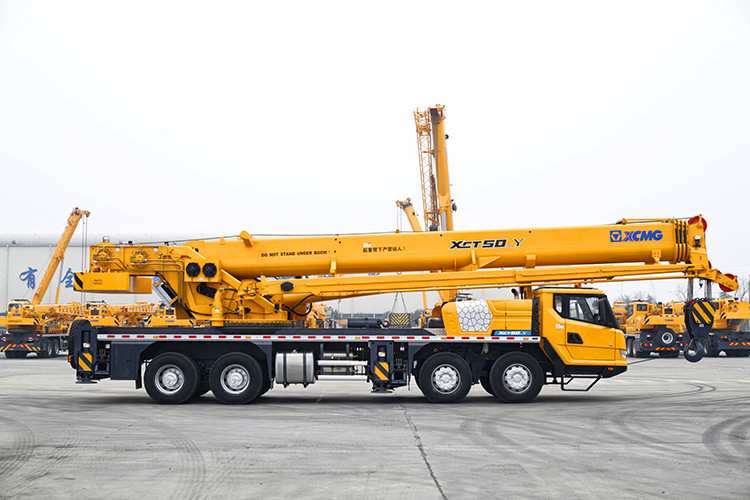

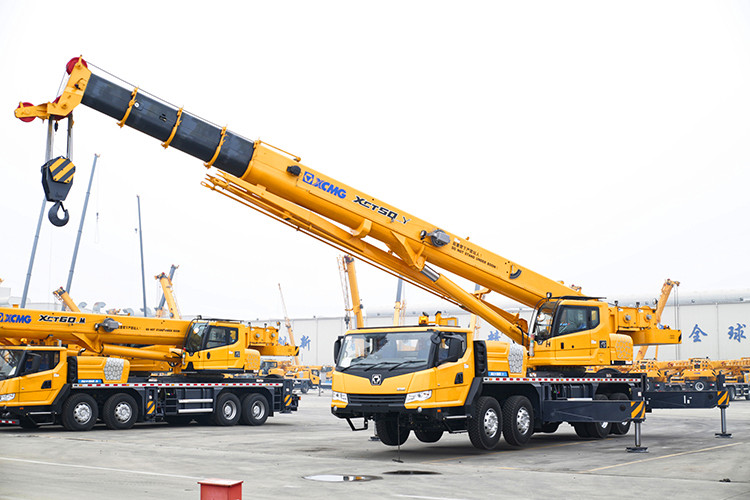

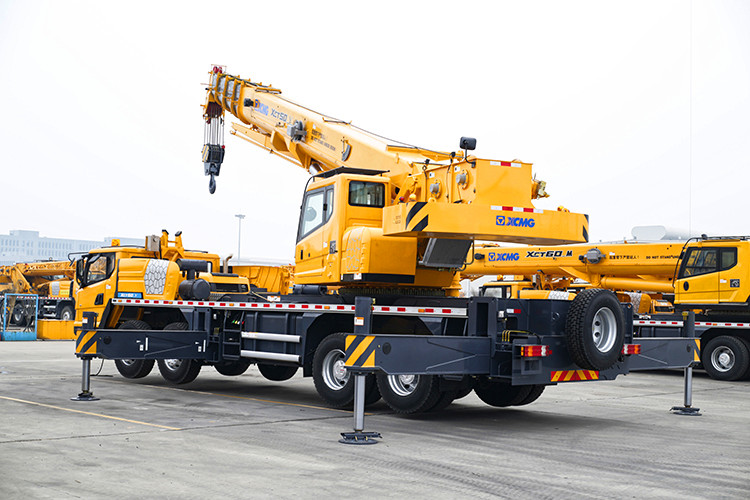

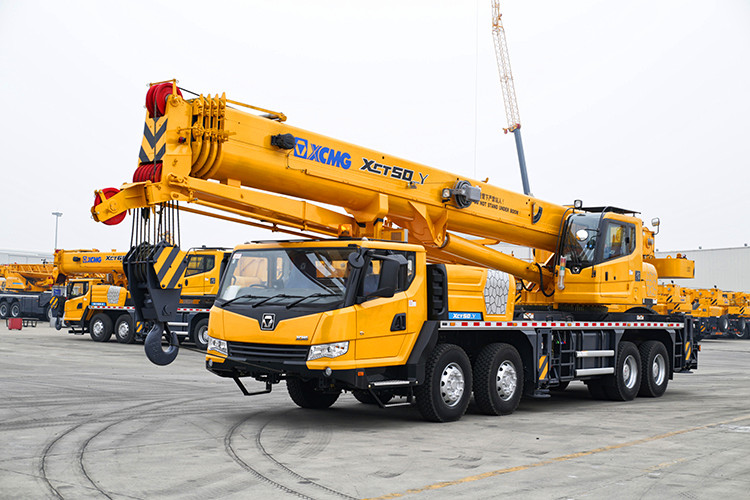

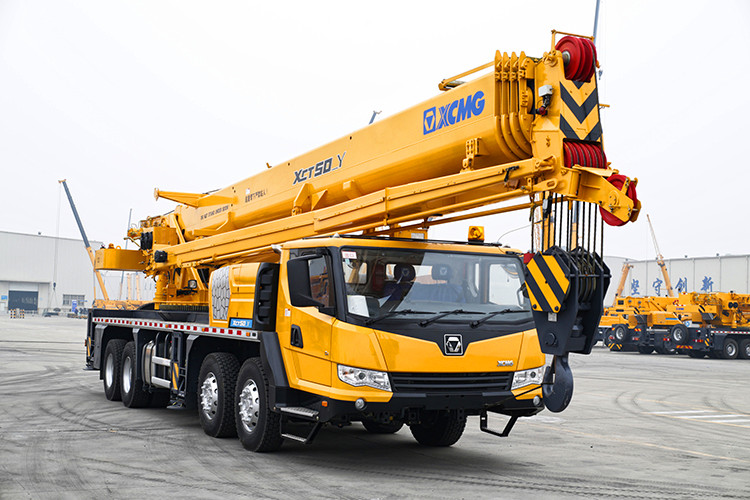

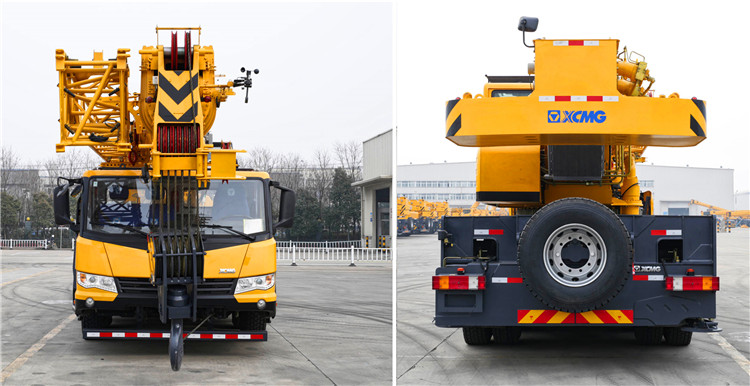

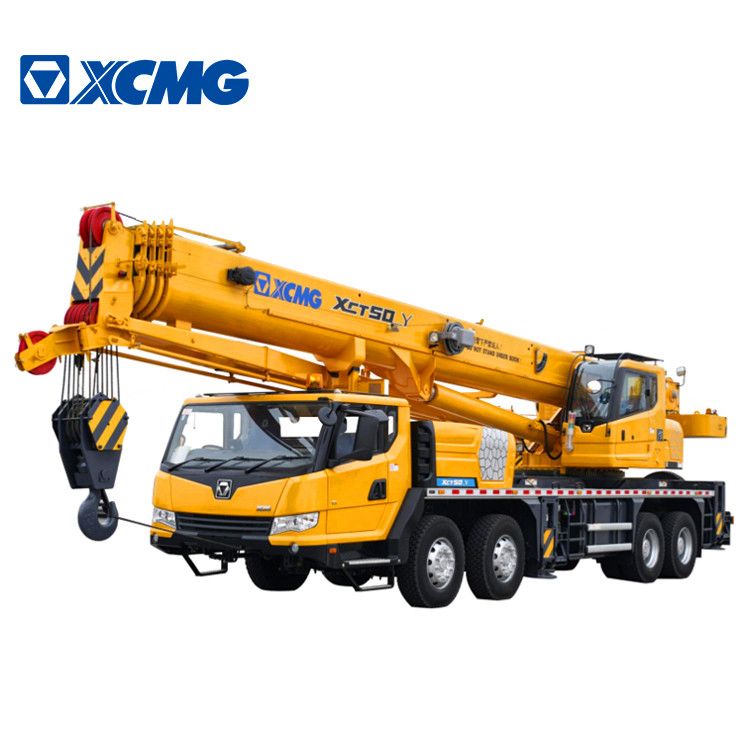

XCT50_Y Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Performance Characteristics:

* 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 50 t; the max. lifting height is 59.5 m; all capacities take the lead in its class.

* The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 45℃. The whole vehicle is also waterproof and corrosion resistant. The reliability and service life of parts are greatly improved.

* Abundant configurations of operating methods and jib types can meet the requirements of different customers.

XCMG Official 50 Ton Hydraulic Crane Truck XCT50_Y China New Hydraulic Crane Price

Item		Unit	Parameter
Dimensions (length x width x height)		mm	14045×2790×3615
Total vehicle mass in travel configuration		kg	40100
Axle load	1st and 2nd axle	kg	8500
Axle load	3rd and 4th axle	kg	11550
Engine rated power/rpm		kW/(r/min)	247/2200
Max. output torque/rpm		N.m/(r/min)	1350/1100-1600
Max. travel speed		km/h	90
Min. turning diameter		m	24
Min. ground clearance		mm	260
Approach angle		°	19
Departure angle		°	13
Max. grade ability		%	40
Fuel consumption per 100 km		L	38
Max. total rated lifting capacity		t	50
Min rated working radius		m	3
Max. load moment	Base boom	kN.m	2009
Max. load moment	Fully-extended boom	kN.m	933
Outrigger span	Longitudinal	m	6.1
Outrigger span	Lateral	m	7.1
Hoist height	Base boom	m	11.2
Hoist height	Fully-extended boom	m	43.3
Boom length	Base boom	m	11.4
Boom length	Fully-extended boom	m	43.5
Jib offset angle		°	0, 15, 30
Boom raising time		s	≤40
Boom fully extending time		s	≤90
Hoistin Hoisting speed (single line, 4th layer, no load)	Main winch	m/min	≥128
Hoistin Hoisting speed (single line, 4th layer, no load)	Auxiliary winch	m/min	≥128

XCMG Official 50 Ton Hydraulic Crane Truck XCT50_Y China New Hydraulic Crane Price
