XCMG Official 8 Ton Hydraulic Truck Crane XCT8L4 China Small Hydraulic Crane Price

View All >

Model： XCT8L4

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official 8 Ton Hydraulic Truck Crane XCT8L4 China Small Hydraulic Crane Price

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XCT8L4

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

XCT8L4

XCMG

Jiangsu,China

9.375m

25.5m

302kN.m

Construction

CE/ISO9001

+ Add a Product

Summary

Model Number:XCT8L4
Brand Name:XCMG
Place of Origin:Jiangsu,China
Span:9.375m
Max. Lifting Height:25.5m
Rated Lifting Moment:302kN.m
Rated Loading Capacity:8t
Application:Construction
Certification:CE/ISO9001

Specifications

weight:8000.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

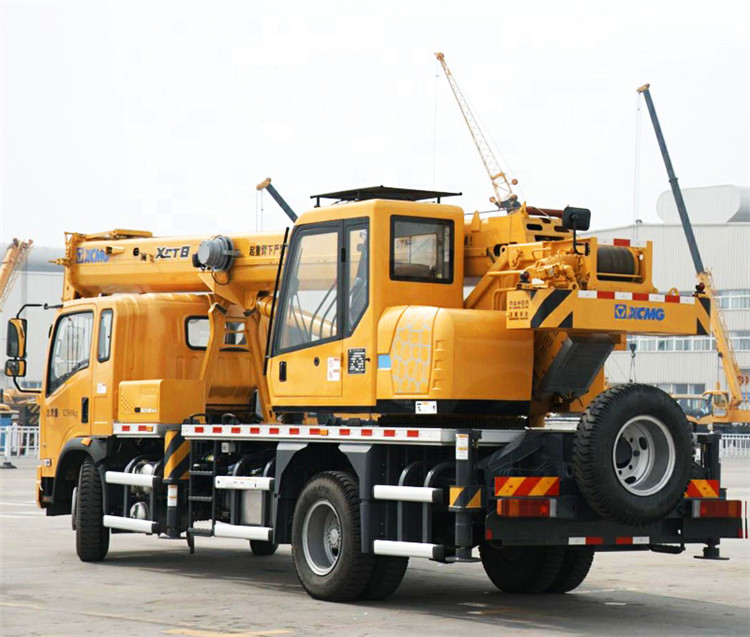

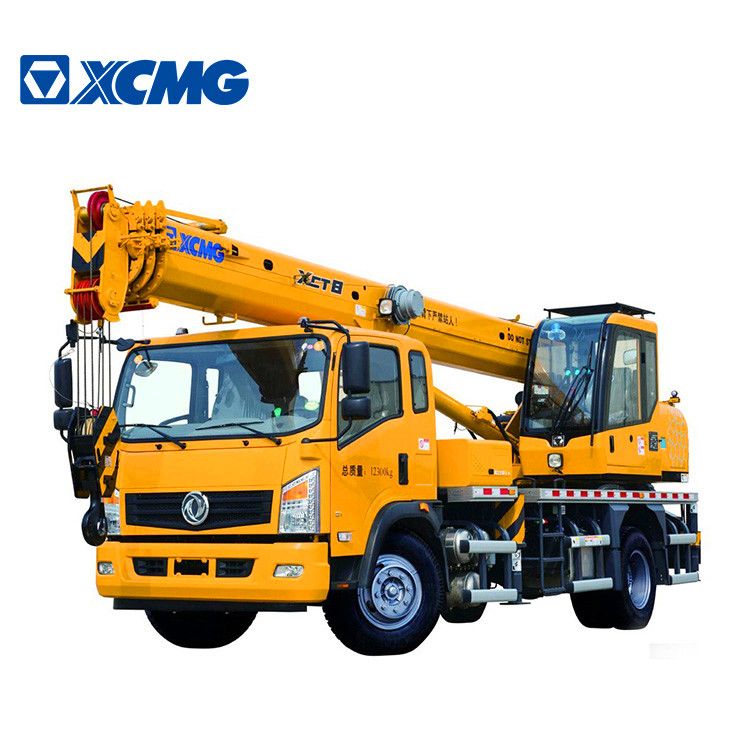

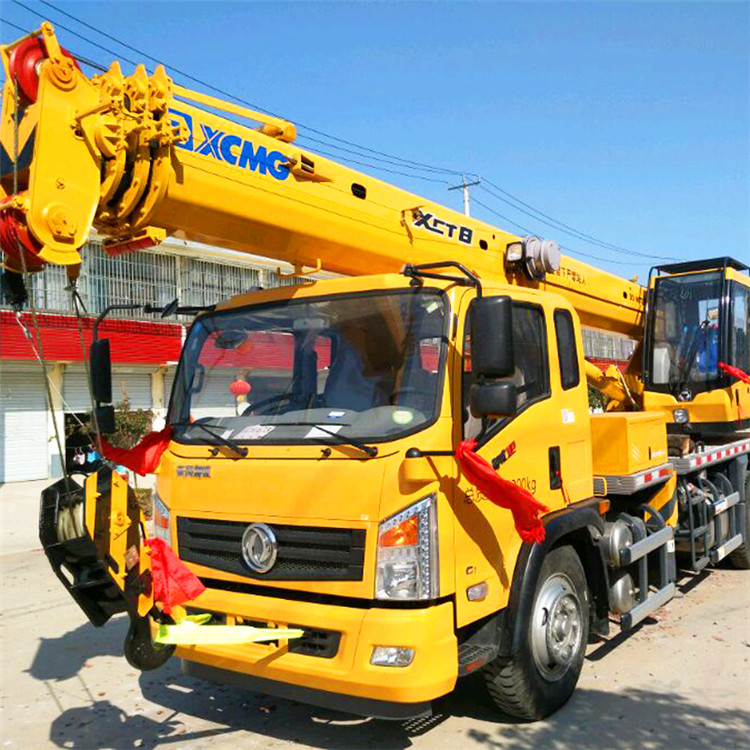

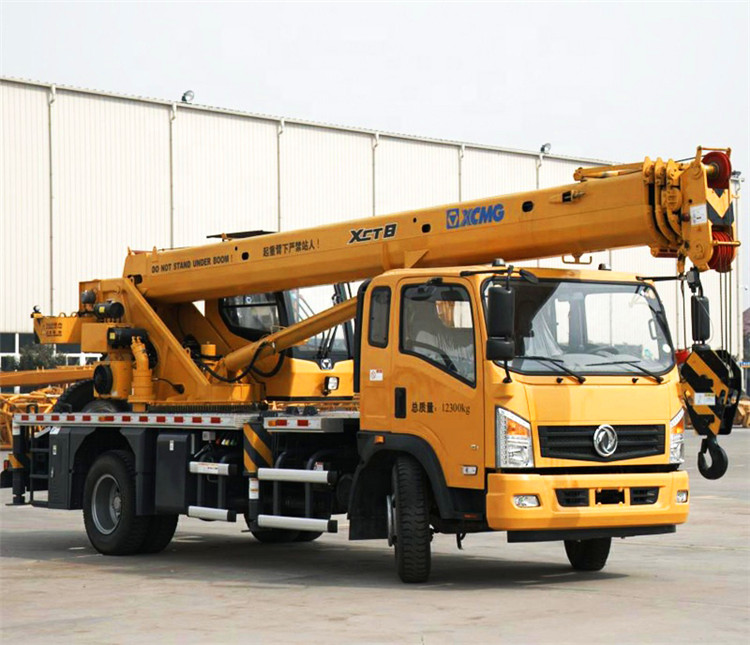

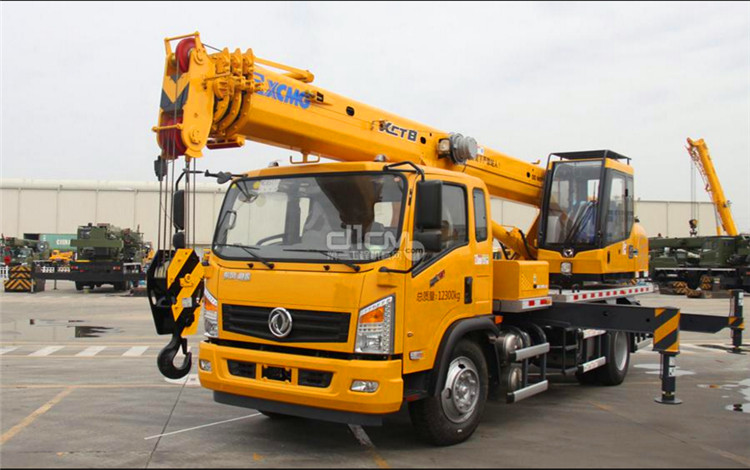

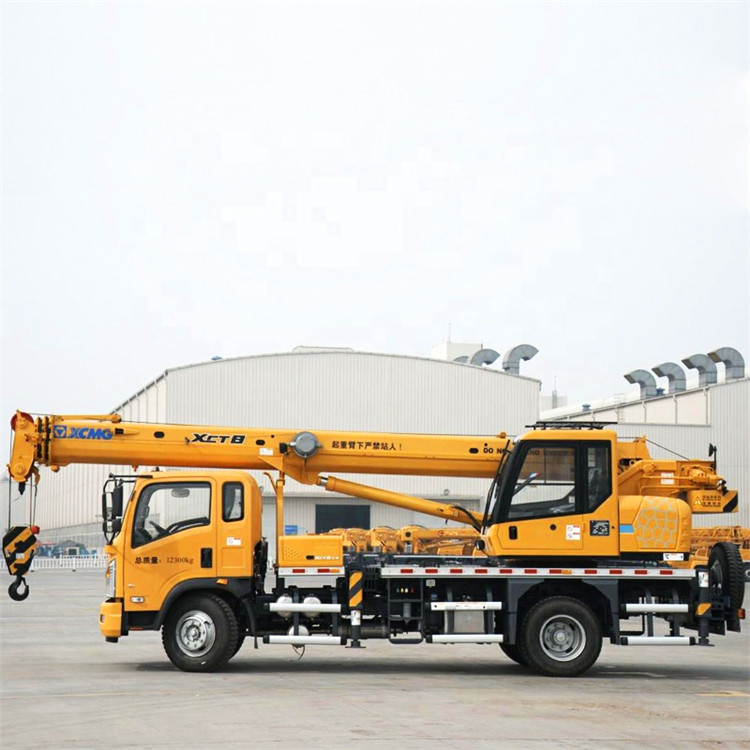

XCMG Official 8 Ton Hydraulic Truck Crane XCT8L4 China Small Hydraulic Crane Price

XCMG Official 8 Ton Hydraulic Truck Crane XCT8L4 China Small Hydraulic Crane.

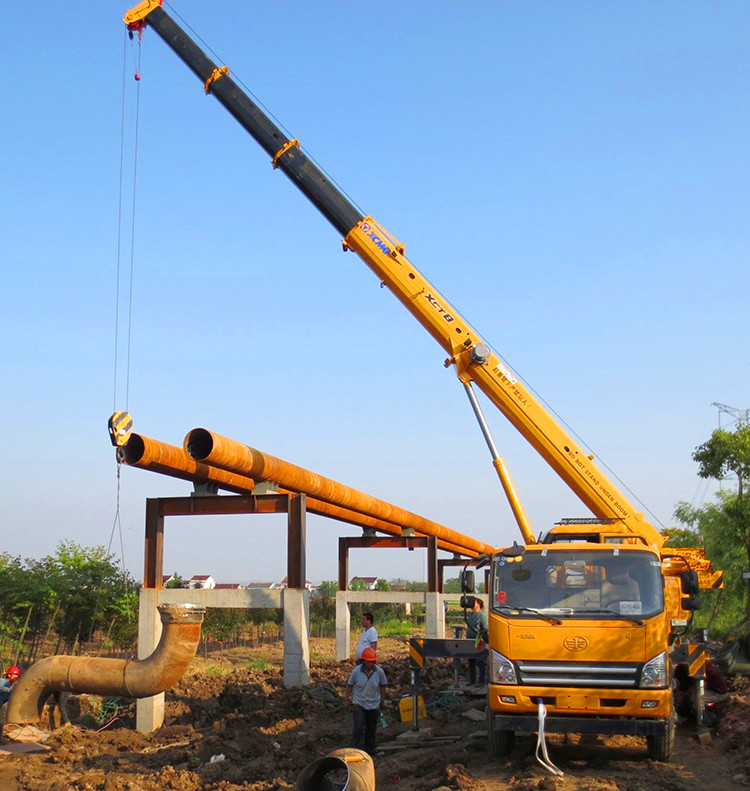

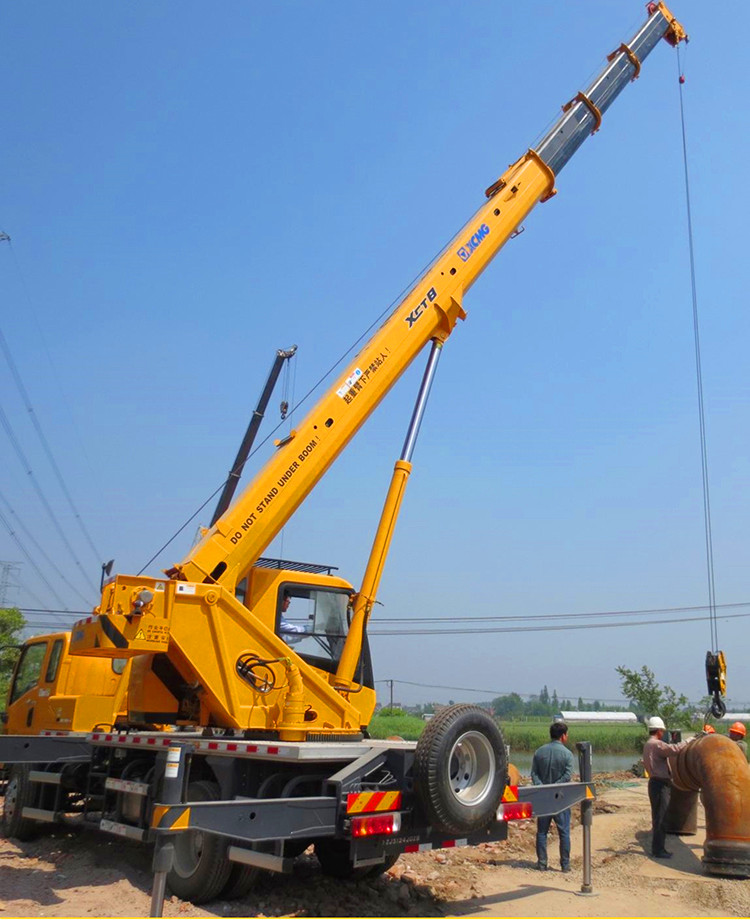

XCT8L4 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

* Super lifting performance

4-section boom of 25.5 m with Octagon-type profile is the longest of the same class in the industry; the max. parts of line is 6 for the main hook block. The performance is 20% higher than that of the competitors, the performance of medium-long boom is higher.

* New energy-saving hydraulic system

The min. stable slewing speed is 0.3°/s. The min. stable lifting speed (drum) is 3.0m/min. Precise and safe lifting movements can be realized.

* Optimized power for universal chassis

Spiral spring clutch is upgraded by diaphragm spring clutch, torque transfer efficiency improves 10%; with large-ratio transmission adopted, max. grade ability is up to 35%; max. travel speed is 90km/h, ranking first in the industry.

XCMG Official 8 Ton Hydraulic Truck Crane XCT8L4 China Small Hydraulic Crane Price

Dimension	Unit	XCT8L4
Overall length	mm	9375
Overall width	mm	2400
Overall height	mm	3240/3170
Total weight in travel	kg	12300/12100
Engine model		YC4E140-42/BF4M2012-14E4
Engine rated power	kW/(r/min)	103/2600 106/2500
Engine rated torque	N.m/(r/min)	430/(1300-1600) 500/1500
Max. travel speed	km/h	90
Min. turning diameter	m	16
Min. ground clearance	mm	260
Approach angle	°	18
Departure angle	°	13
Max. grade ability	%	35
Fuel consumption for 100km	L	18
Max. rated total lifting capacity	t	8
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.327
Max. lifting torque	kN.m	302
Base boom	m	8.5
Max.main boom	m	25.6
