- Summary
- Details
- Dimension(L*W*H）:15310*8930*7380mm
- Weight:210000kg
- Model Number:XDE300
- Brand Name:XCMG
- Certification:ISO9001
- Place of Origin:China
- Power:2014kW
- Max.speed:60km/h
- Product Name:357636-XDE300
- Display online time:2020-11-28
- weight:210000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Rated Payload:300000kg(330 U.S.ton)
- Gross Vehicle Weight:510000kg
- Drive Style:4ⅹ2
- Max.Gradeability:0.18
- Min.Turning Diameter:30.24m
- Weight Distribution(empty):50%/50%
- Weight Distribution(loaded):33%/67%
- Service Capacities(fuel/hydraulic system):4500/1360L
- Service Capacities(cooling system/crankcase):910/280L
- Body Capacity（struck/heaped 2:1）:155/197m3
XCMG

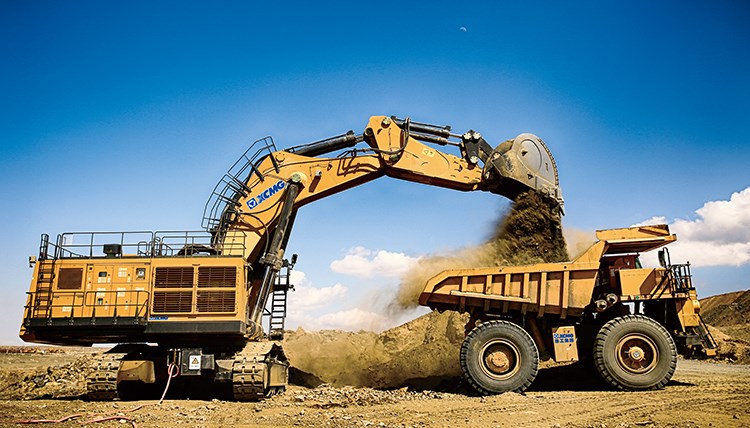

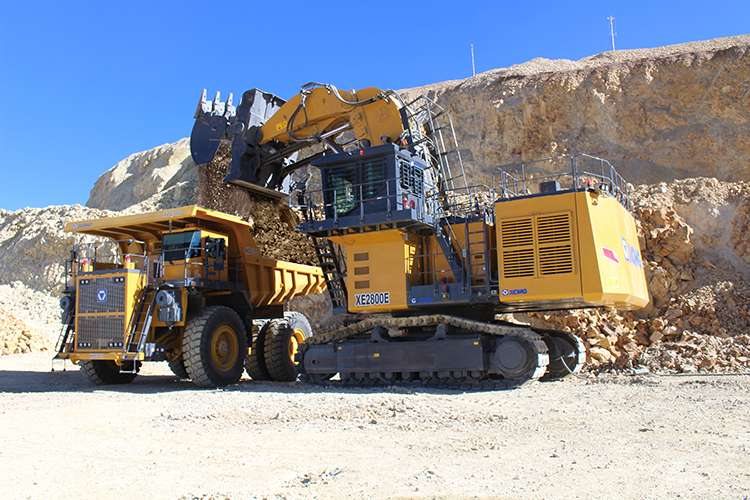

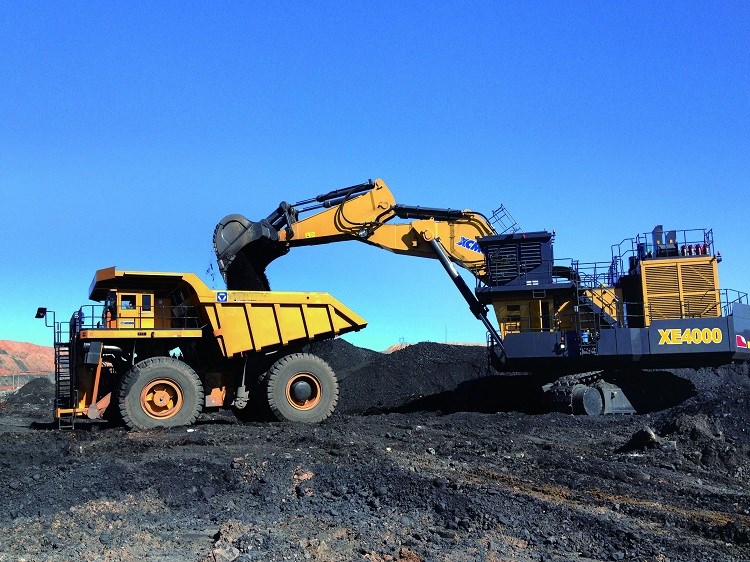

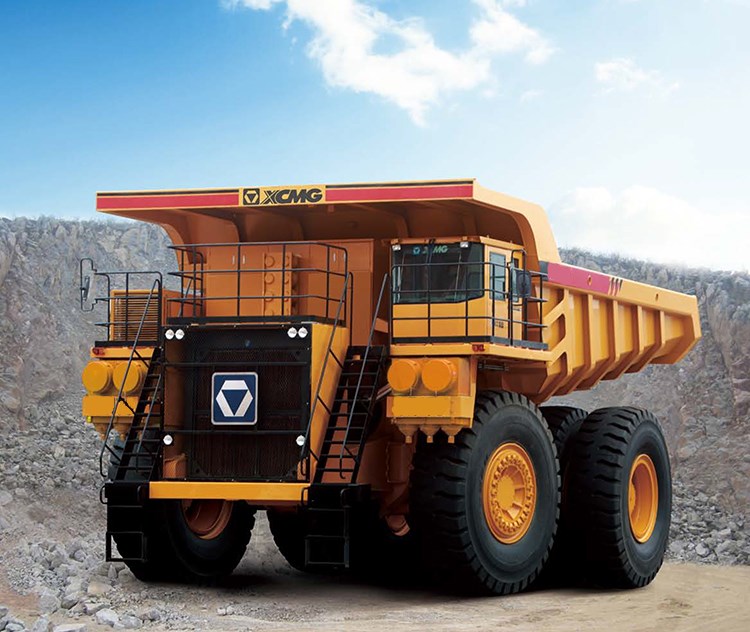

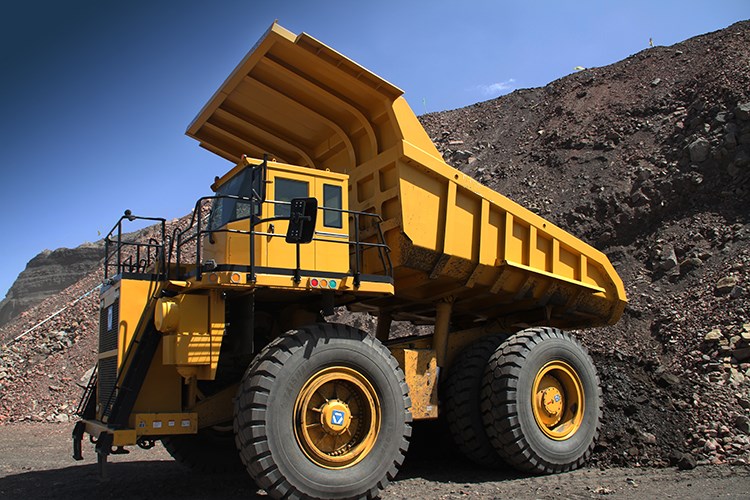

Official Dump Truck XDE300 China New Electric Driver Dump Truck.
1. Global first open-pit
articulated dump truck adopts AC electric drive technology.
2. Six-wheel independent drive/
brake technology can realize electric-hydraulic brake and thus adapts to
complicated road conditions.
3. Drive motor adopts water cooling system,
which has high cooling efficiency and low oil consumption.
4. Stepless speed regulation is
full-automatic, the traction performance is good, operation is smooth and
manipulation is convenient.
5. The whole machine has a
small number of drive parts, which is convenient for maintenance and is also
equipped with automatic lubrication system.
6. All-welded structure
compartment is made up of high strength wear-resistant steel plate and featured
with solidity and durability.
|
Description |
Parameter value |
|
|
Engine |
Model |
MTU 16V4000C23R Tier II |
|
Rated Power/Speed |
2014kw@/1900rpm |
|
|
Max.Torque/Speed |
11310Nm@1700rpm |
|
|
Optional |
Cummins QSK60 Tier II |
|
|
Electric Drive |
Drive System |
GE AC drive system |
|
Alternator |
GTA41B |
|
|
Traction Motor |
GDY114 |
|
|
Ratio |
32.62:1 |
|
|
Optional |
XCMG AC drive system |
|
|
Tires and Rims |
Standard Tire |
53/80R63Tubeless,all-steel radial tires |
|
Standard Rim |
36.00/5.0 |
|
|
Optional |
56/80R63 |
|
|
Cab |
Cab |
FOPS Cab |
|
Optional |
ROPS&FOPS Cab |
|
|
Brake System |
Service Brakes |
Oil-cooled, all hydraulically actuated
breaking system, multiple disc brake at each wheel |
|
Electric Dynamic Retarder |
Max.4026KW |
|
|
Front Suspension |
McPherson type,hydro-pneumatic suspension |
|
|
Hydraulic System |
Steering |
Flow amplified power
steering.Supplementary steering automatically supplied by accumulators |
|
Hoist Time(Power-up Loaded) |
24s |
|
|
Electric System |
24V |
|
