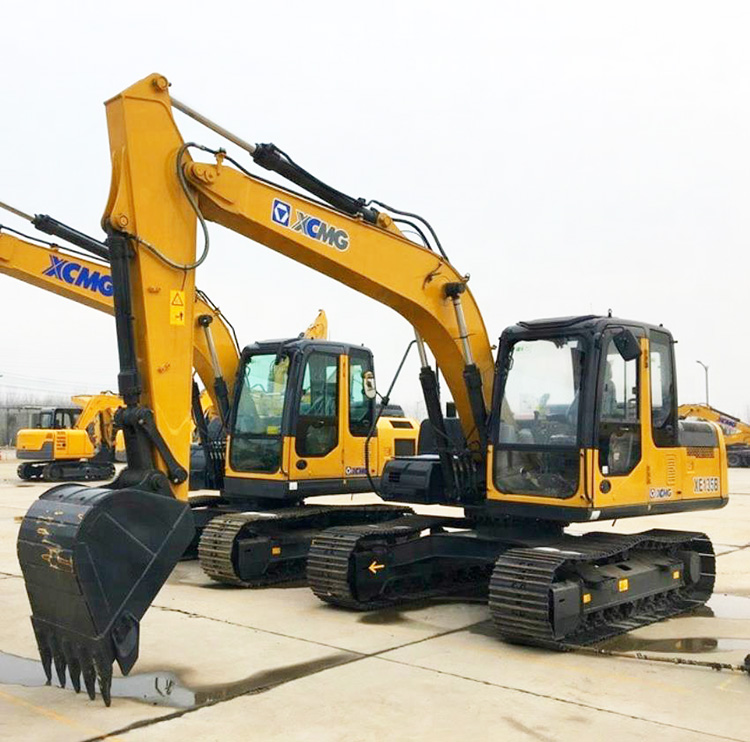

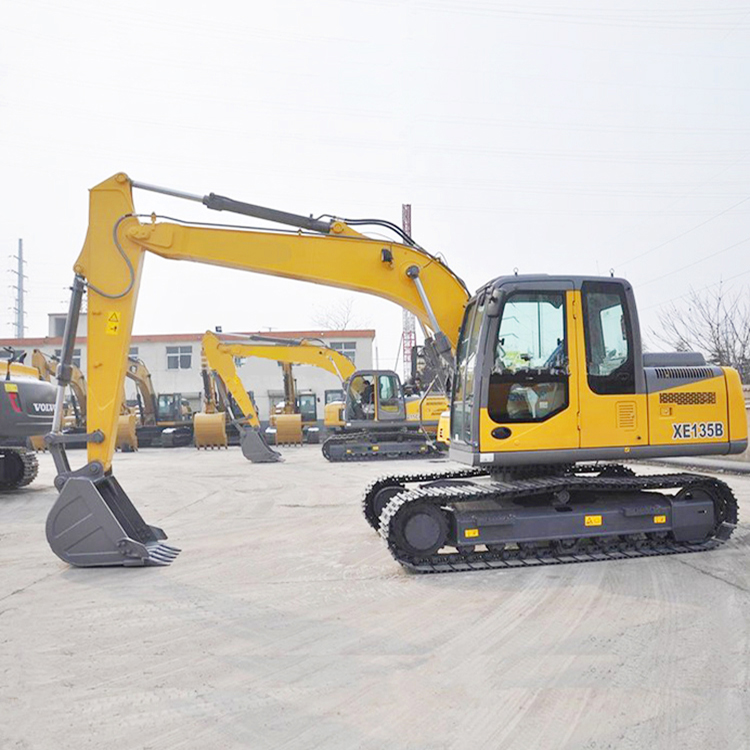

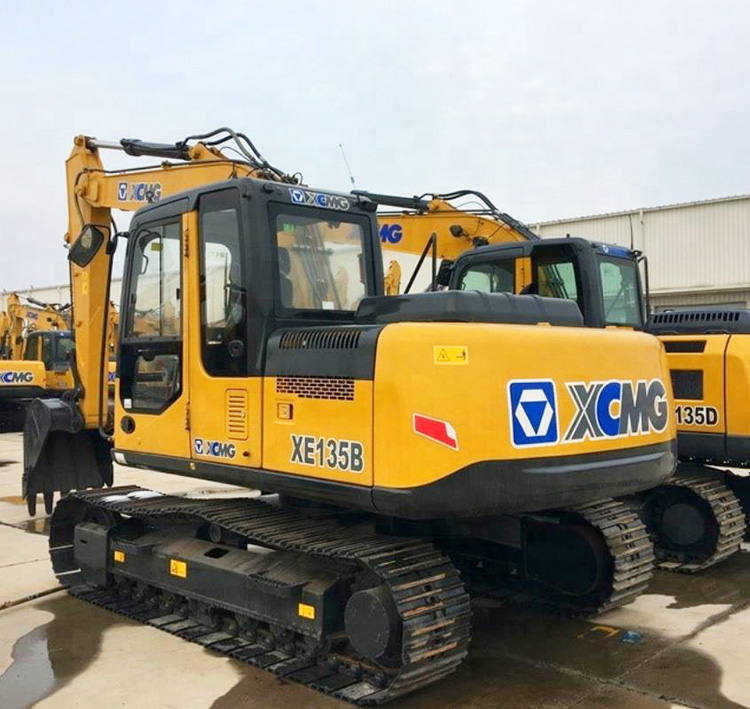

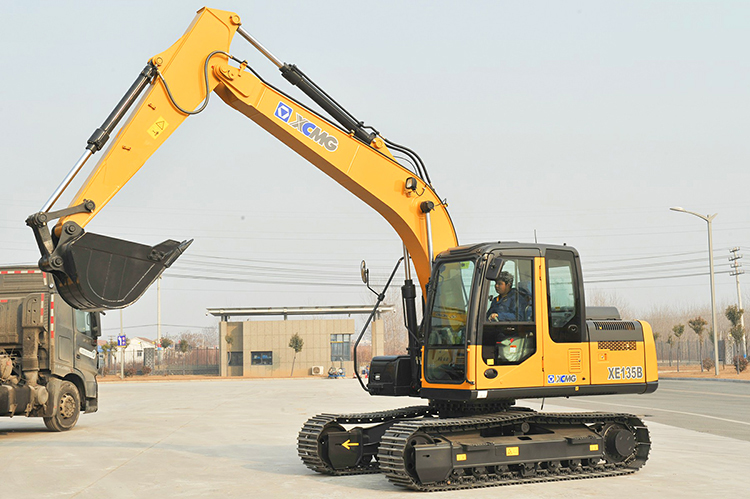

XCMG official 13 ton crawler escavatore earth-moving machinery XE135B price
Summary
- Rated Speed:12.3r/min
- Machine Weight:6010kg
- Maximum Digging Depth:5538mm
- Maximum Digging Height:13000kg
- Bucket capacity:0.4-0.52m3
- Model Number:XE135B
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:13000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official 13 ton crawler escavatore earth-moving machinery XE135B.

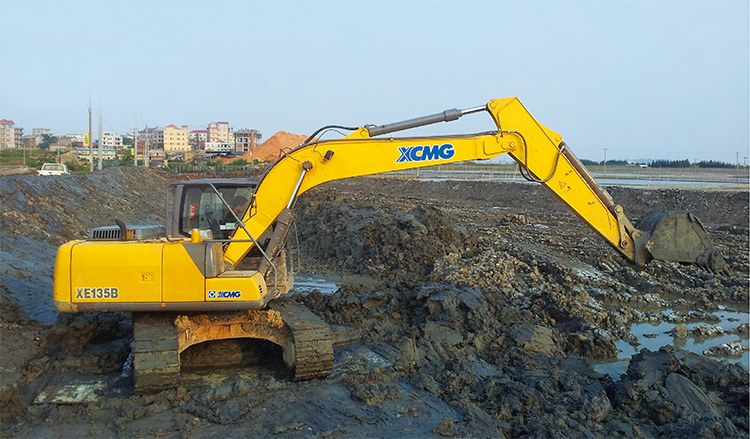

XE135B is a crawler excavator which is comprehensively upgraded and is applicable for a variety of working conditions. The product integrates energy saving, reliability and comfort, features flexible operation and low noise, and is widely used in mines, construction site, underground mining, landscape engineering, municipal construction.
1. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
2. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
3. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
4. The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
Kg |
13000 |
|
|
Bucket capacity |
m³ |
0.4-0.52 |
|
|
Engine |
Model |
/ |
BB-4BG1TRP |
|
No. of cylinders |
/ |
4 |
|
|
Output power |
kw/rpm |
72.7/2200 |
|
|
torque/speed |
N.m |
337.6/1600 |
|
|
Displacement |
L |
4.329 |
|
|
Hydraulic system |
Main pump |
/ |
2 |
|
Rated flow of main pump |
L/min |
2×123 |
|
|
Pressure of prime valve |
MPa |
31.4/34.3 |
|
|
Pressure of travel system |
MPa |
34.3 |
|
|
Pressure of swing system |
MPa |
25 |
|
|
Pressure of pilot system |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
250 |
|
Hydraulic tank capacity |
L |
130 |
|
|
Engine oil capacity |
L |
14 |
|
|
Appearance size |
Overall length |
mm |
7770 |
|
Overall width |
mm |
2512 |
|
|
Overall height |
mm |
2880 |
|
|
Width of platform |
mm |
2512 |
|
|
Length of crawler |
mm |
3660 |
|
|
Overall width of chassis |
mm |
2490 |
|
|
Width of crawler |
mm |
500 |
|
|
Track length on ground |
mm |
2910 |
|
|
Crawler gauge |
mm |
1990 |
|
|
Clearance under counterweight |
mm |
964 |
|
|
Min. ground clearance |
mm |
478 |
|
|
Min. tail swing radius |
mm |
1805 |
|
|
Height of track |
mm |
||
|
Working scope |
Max. digging height |
mm |
8641 |
|
Max. dumping height |
mm |
6181 |
|
|
Max. digging depth |
mm |
5538 |
|
|
Max. vertical wall digging depth |
mm |
4727 |
|
|
Max. digging reach |
mm |
8296 |
|
|
Min. swing radius |
mm |
2335 |
|
