XCMG Official 20 ton crawler excavator XE215C China rc hydraulic excavator price
FOB for Excavator Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official 20 ton crawler excavator XE215C China rc hydraulic excavator price
  • Summary
  • Details
Summary
  • Rated Speed:3.3-5.5 km/h
  • Max Digging Radius: 9925mm
  • Machine Weight:22000 kg
  • Maximum Digging Depth:6680 mm
  • Maximum Digging Height:9620 mm
  • Bucket capacity:0.9-1m3
  • Operating Weight:21900 kg
  • Model Number:XE215C
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
Details
  • Product Name:G5EF1A0D49033A
  • Display online time:2020-08-01
  • weight:22000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other

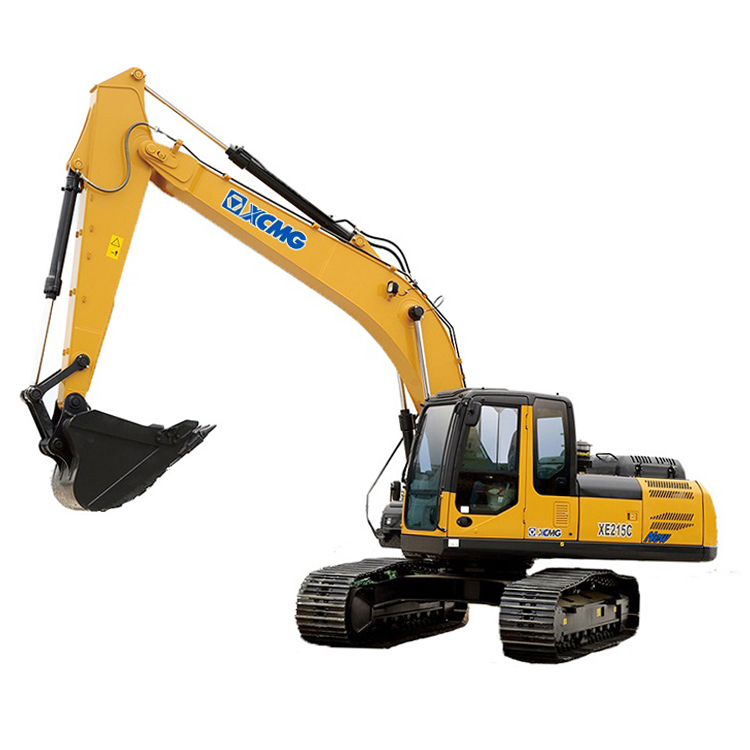

XCMG Official 20 ton crawler excavator XE215C China rc hydraulic excavator price

XCMG Official 20 ton crawler excavator XE215C China rc hydraulic excavator.

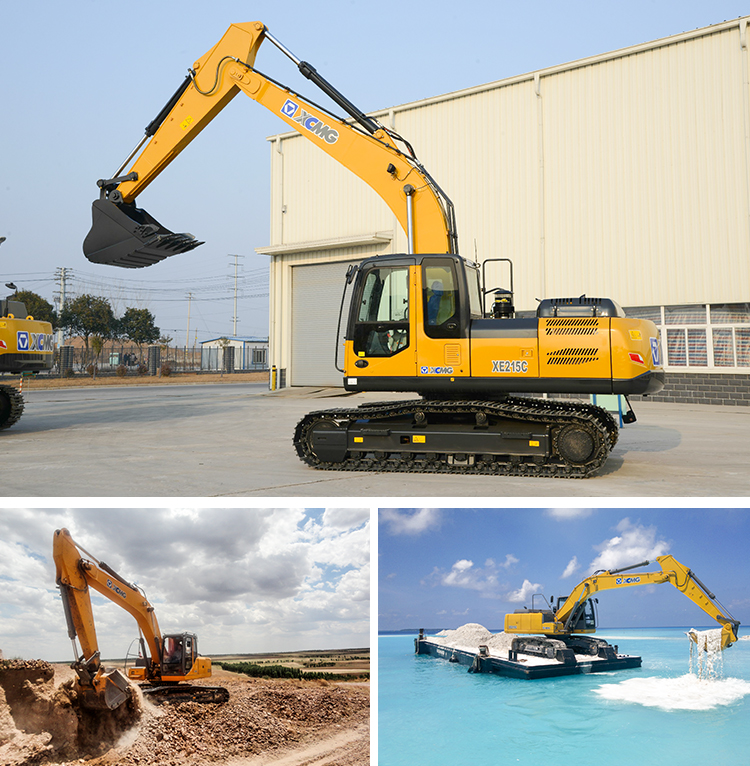

XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on. It has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.

Model Characteristics:

1. Original imported engine

An Imported Isuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.

2. Latest fuel filter

The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.

3. Hydraulic system

Original imported high-end hydraulic components are configured to match capabilities for excellent performance.

4. Structure

Finite element analysis is used in the structural design to strengthen key components so that they can withstand greater stress. This ensures that the machine stays durable under different harsh operating conditions.

5. Optional match

Optional tools include a breaker, a cold temperature activation device, and falling object protection, all to increase the capabilities of the machine.

XCMG Official 20 ton crawler excavator XE215C China rc hydraulic excavator price

Engine

Model

ISUZU CC-6BG1TRP

Equipped

Electronic fuel injection

Four strokes

Water cooling

Turbo-charging

Air to air intercooler

No. of cylinders

6

Output power

128.5/2100 kW/rpm

Torque/speed

637/1800 N.m/rpm

Displacement

6.494 L

Operation Weight

21700 kg

Bucket Capacity

0.9—1.0 m ³

Main performance

Travel speed(H/L)

5.5/3.3 km/h

Rotating speed

13.3 r/min

Gradeability

≤35°

Ground pressure

47.2 kPa

Bucket digging force

149 kN

Arm digging force

111 kN

Maximum traction

184 kN

Working scope

Max. digging height

9620 mm

Max. dumping height

6780 mm

Max. digging depth

6680 mm

Excavation depth of 8 feet level

6500 mm

Max. vertical wall digging depth

5715 mm

Max. digging reach

9940 mm

Min. swing radius

3530 mm

XCMG Official 20 ton crawler excavator XE215C China rc hydraulic excavator price
