XCMG official 21 ton amphibious excavator XE215S crawler wetland swampy excavator equipment for sale
Summary
- Rated Speed:3.2km/h
- Max Digging Radius:9950mm
- Machine Weight:34260kg
- Maximum Digging Depth:5745mm
- Maximum Digging Height:10595mm
- Bucket capacity:0.93m3
- Operating Weight:21ton
- Model Number:XE215S
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- weight:34260.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

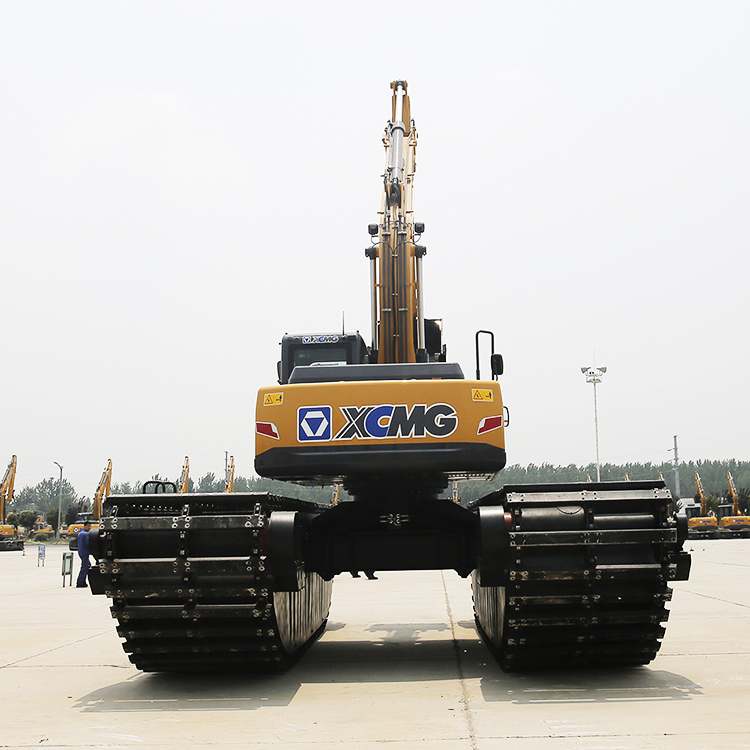

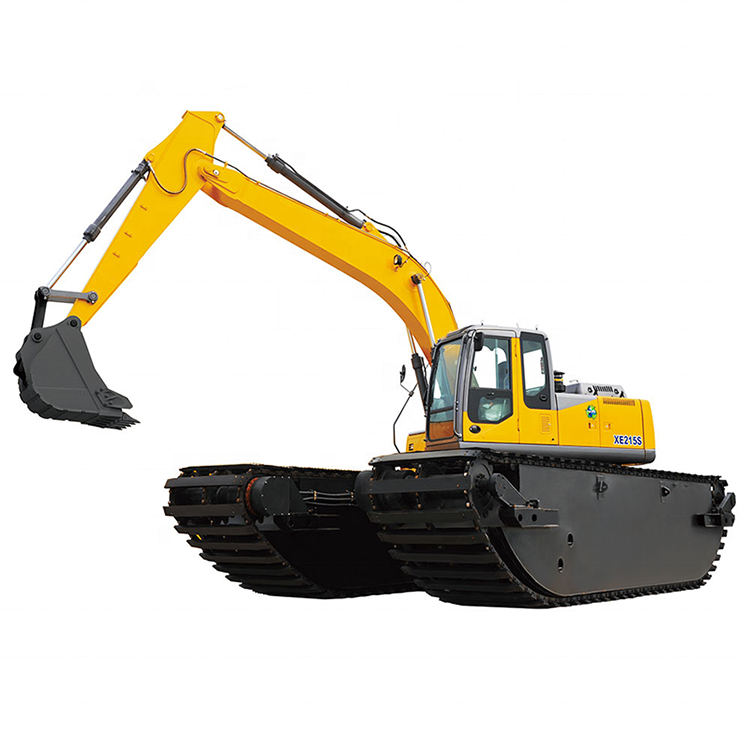

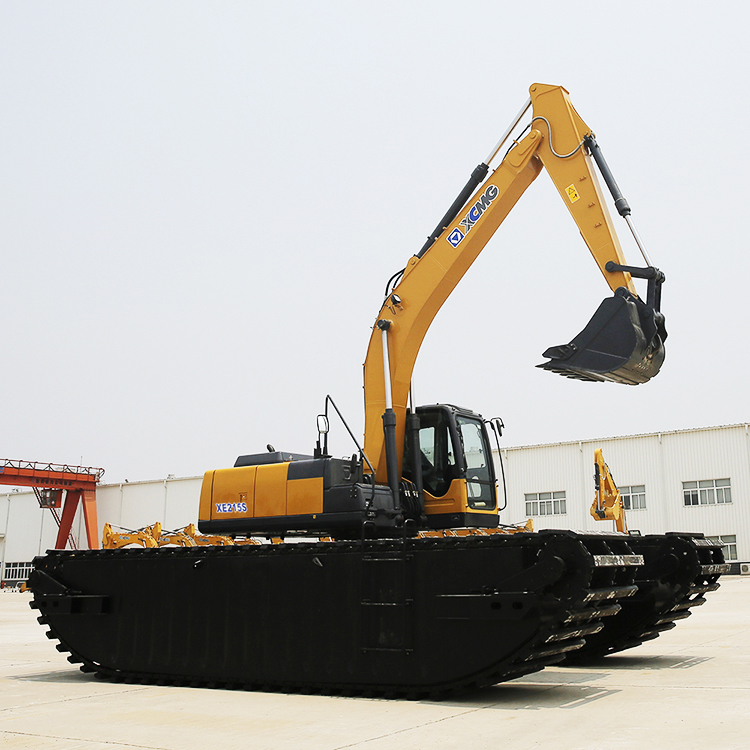

20 ton amphibious excavator XE215S crawler wetland swampy
excavator equipment.

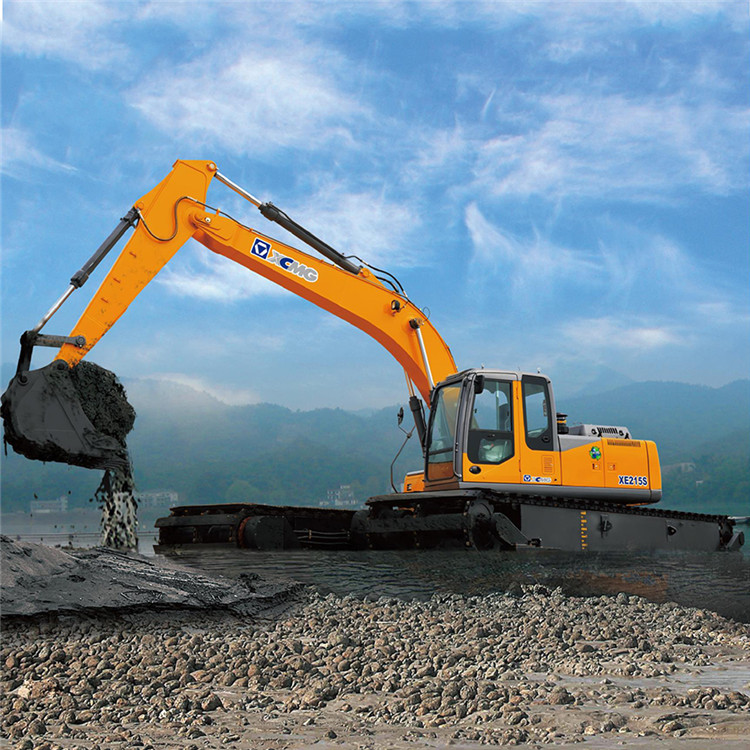

XE215S amphibious excavators are widely used in river
dredging, watershed management, wet embankment and other work, on the river,
river, lake, sea, beach resources development and environmental remediation
operations are of great help. The vehicle is equipped with imported engine and
hydraulic system, and the operation efficiency and reliability are higher.
Walking device with sealed box, 5 times the conventional excavator grounding
area can be adapted to very soft ground, wetlands, swamps. Three rows of
walking chains ensure safe and reliable walking in the water.
|
Operating weight |
34260kg |
|
|
Bucket capacity |
0.93m³ |
|
|
Engine |
Model |
CC-6BG1TRP-08 |
|
Max.Rated power |
128.5kw/2100rpm |
|
|
Max.Torque |
551N.m/1600rpm |
|
|
Displacement |
6.494L |
|
|
Main |
Speed |
3.2km/h |
|
Slewing speed |
13.3r/min |
|
|
Gradeability |
49%（26°） |
|
|
Ground pressure |
13.7KPa |
|
|
Buet digging
force |
149KN |
|
|
Arm digging force |
111KN |
|
|
Max.Traction
force |
189KN |
|
|
Hydraulic system |
Main pump flow |
2×206L/min |
|
Main safety
valve pressure |
34.3/37.0MPa |
|
|
Walking system pressure |
34.3MPa |
|
|
Slewing system
pressure |
28MPa |
|
|
Pilot system pressure |
3.9MPa |
|
|
Tank |
Fuel tank |
360L |
|
Hydraulic tank |
220L |
|
|
Engine tank |
25L |
|
|
Dimension |
Overall length |
11335mm |
|
Overall width |
5768mm |
|
|
Overall height |
3925mm |
|
|
Turntable
width |
2710mm |
|
|
Track shoe length |
9425mm |
|
|
Carrier
ovarall width |
5768mm |
|
|
Tumblers distance |
8528mm |
|
|
Track gauge |
3640mm |
|
|
Pontoon width |
1500mm |
|
|
Pontoon height |
1800mm |
|
|
Pontoon length |
9425mm |
|
|
Counterweight
ground clearance |
1990mm |
|
|
Min.Ground clearance |
1030mm |
|
|
Rear slewing
radius |
2728mm |
|
|
Operating |
Max.Digging reach |
10595mm |
|
Max.Dumping
reach |
7710mm |
|
|
Max.Digging depth |
5745mm |
|
|
8-inch
horizontalplane digging depth |
5560mm |
|
|
Max.Vertical diggingdepth |
4790mm |
|
|
Max.Digging
radius |
9950mm |
|
|
Min.Slewing radius |
3530mm |
|
