XCMG XE260CLL Brand New 27 Ton Long Reach Arm Hydraulic Excavator for Sale
Summary
- Rated Speed:5.5/3.3km/h
- Max Digging Radius:18258mm
- Maximum Digging Depth:14915mm
- Maximum Digging Height:13800mm
- Bucket capacity:0.4m3
- Operating Weight:27500kg
- Model Number:XE260CLL
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:27500.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

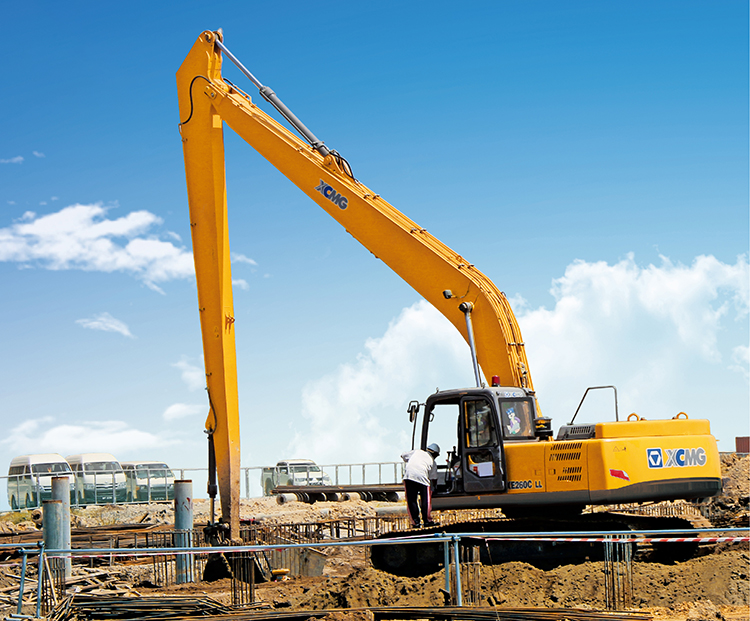

XCMG XE260CLL Brand New 27 Ton Long Reach Arm Hydraulic Excavator.
XE260CLL hydraulic excavator with super long reach is a new self-developed product by adopting the latest technology and the advanced technology of similar products abroad. The maximum digging radius is 18 meters, which can be widely used in working conditions restricted by ground environment such as river dredging, bank protection, slope construction and subway construction.
XE260CLL hydraulic excavator has more power, lower fuel consumption and stronger working performance. It can be widely applied to farmland water conservancy, river dredging, municipal construction and small mine construction. It can also realize different operations such as digging, breaking and dismantling, and the adaptability of working conditions is further strengthened.
The whole machine adopts imported 128.5kW high-power engine, XCMG proprietary and special technology, featuring low speed and high torque, high-pressure injection, stronger power and better fuel economy. New high-efficiency main pump is fully upgraded, with large displacement, which is 7% higher than that of the previous generation.
|
Model |
Unit |
XE260CLL |
|
|
Operating weight |
Kg |
27500 |
|
|
Bucket capacity |
m³ |
0.4 |
|
|
Engine |
Model |
/ |
ISUZU CC-6BG1TRP-08 |
|
Rated power/speed |
kw/rpm |
128.5/2100 |
|
|
Maximum torque/speed |
N.m |
637/1800 |
|
|
Displacement |
L |
6.494 |
|
|
Main performance |
Travel speed（H/L) |
km/h |
6.0/4.0 |
|
Swing speed |
r/min |
12.1 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
40.8 |
|
|
Bucket digging force |
kN |
76.3 |
|
|
Arm digging force |
kN |
44.5 |
|
|
Maximum tractive force |
kN |
193 |
|
|
Hydraulic system |
Main pump |
/ |
/ |
|
Rated flow of main pump |
L/min |
2×246 |
|
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Swing system pressure |
MPa |
23 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
400 |
|
Hydraulic tank capacity |
L |
240 |
|
|
Engine oil capacity |
L |
25 |
|
|
Appearance size |
Overall length |
mm |
13900 |
|
Overall width |
mm |
3390 |
|
|
Overall height |
mm |
3360 |
|
|
Width of platform |
mm |
2830 |
|
|
Track length |
mm |
4640 |
|
|
Overall width of chassis |
mm |
3390 |
|
|
Track shoe width |
mm |
800 |
|
|
Wheel base of crawler |
mm |
3842 |
|
|
Track gauge |
mm |
2590 |
|
|
Counterweight clearance |
mm |
1050 |
|
|
Min. ground clearance |
mm |
470 |
|
|
Min. tail swing radius |
mm |
2985 |
|
|
Track height |
mm |
927 |
|
|
Working scope |
Max. digging height |
mm |
13800 |
|
Max. dumping height |
mm |
11414 |
|
|
Max. digging depth |
mm |
14915 |
|
|
Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
- |
|
|
Max. vertical wall digging depth |
mm |
13917 |
|
|
Max. digging radius |
mm |
18258 |
|
|
Min. swing radius |
mm |
6740 |
|
