XCMG Official XE900D Crawler Excavator for sale

  • XCMG Official XE900D Crawler Excavator for sale

Share:
XCMG Official XE900D Crawler Excavator for sale
FOB for Excavator Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official XE900D Crawler Excavator for sale
  • Summary
  • Details
Summary
  • Dimension(L*W*H):13570×4580×5380mm
  • Weight:89600kg
  • Model Number:XE900D
  • Brand Name:XCMG
  • Place of Origin:China
  • Power Type:Diesel
  • Type:Crawler Excavator
  • Certification:CE/ISO9001
Details
  • Product Name:XE900D
  • Display online time:2019-11-07
  • weight:89600.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Operating weight:89600Kg
  • Bucket capacity:3.5~6.0m³
  • Rotating speed:6.3r/min
  • Ground pressure:120.9kPa
  • Bucket digging force:480kN
  • Max. digging height:12060mm
  • Max. dumping height:8070mm
  • Max. digging depth:7250mm
  • Max. digging reach:12330mm
  • Min. swing radius:5200mm


XCMG Official XE900D Crawler Excavator for sale


XCMG Official XE900D Crawler Excavator for sale

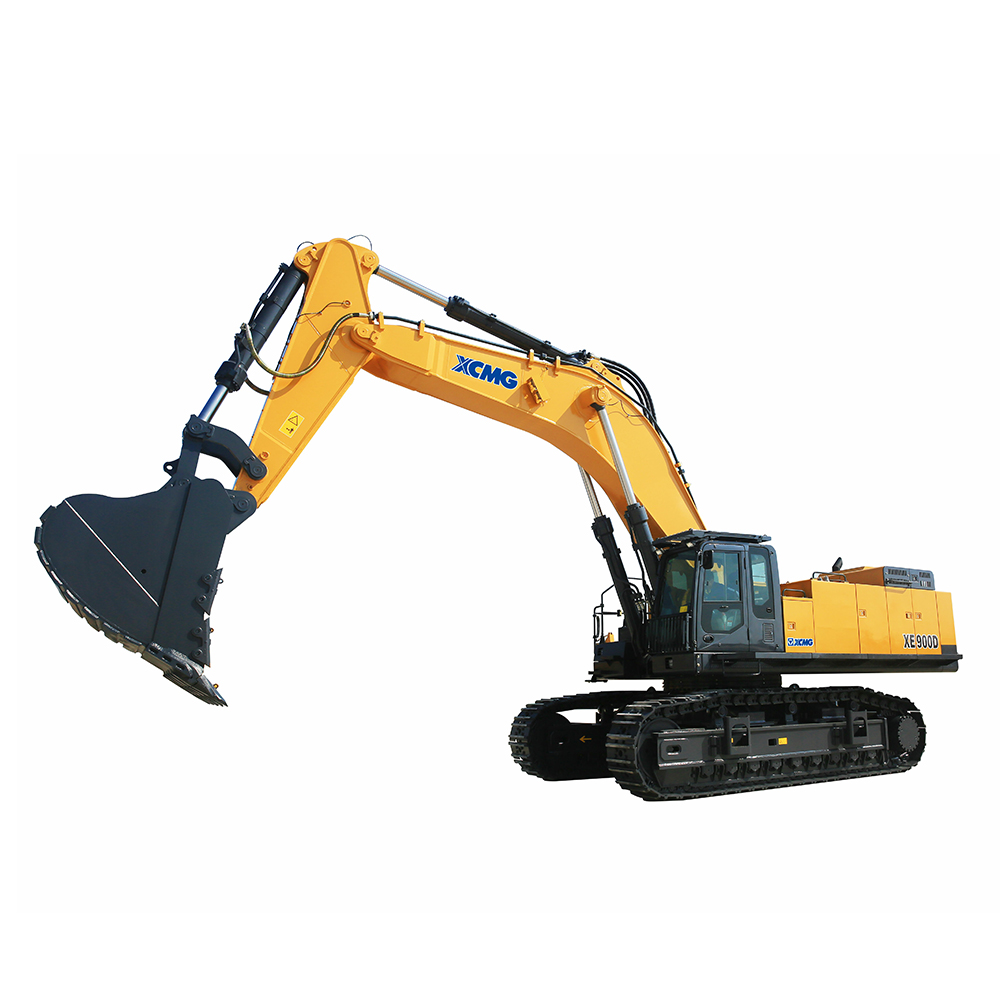

XE900D Crawler Excavator
1The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4The advanced structure and hinge points on the digging end and the industrys largest rotating angle of the bucket ensure strong soil holding capacity.
XCMG Official XE900D Crawler Excavator for sale

XCMG Official XE900D Crawler Excavator for sale

XCMG Official XE900D Crawler Excavator for sale

Description

Unit

Parameter value

Operating weight

kg

89600

Bucket capacity

m³

3.5-6.0

Engine

Model

Engine

QSX15

Style

Direct injection

---

Four strokes

---

Water cooling

---

Turbo-charging

---

Air to air intercooler

---

No. of cylinders

---

6

Output power

kW/ r/min

399/2100

torque/speed

N.m

2539/1400

Displacement

L

15.0


Main performance

Travel speedH/L)

km/h

4.2/2.8

Gradeability

%

35

Rotary speed

r/min

6.3

Ground pressure

kPa

120.9

Bucket digging force

kN

480

Arm digging force

kN

370

Travel traction force

kN

656

Hydraulic system

Main pump

--

2

Rated flow of main pump

L/min

2×549

Pressure of prime valve

MPa

31.4/34.3

 Pressure of travel system

MPa

34.3

 Pressure of swing system

MPa

24.5

Pressure of pilot system

MPa

3.9

Oil Capacity

Fuel tank capacity

L

1230

Hydraulic tank capacity

L

760

Engine oil capacity

L

48


Appearance size

Overall length

mm

13570

Overall width

mm

4580

Overall height

mm

5380

Width of platform

mm

3370

Length of crawler

mm

6350

Overall width of chassis

mm

4150

Width of crawler

mm

650

Wheel base of crawler

mm

5070

Crawler gauge

mm

2960/3500

Clearance under counterweight

mm

1685

Min. ground clearance

mm

870

Min. tail swing radius

mm

4700


Working scope

Max. digging height

mm

12060

Max. dumping height

mm

8070

Max. digging depth

mm

7250

Max. digging depth at the range of level 8 feet

mm

7100

Max. vertical wall digging depth

mm

4200

Max. digging reach

mm

12330

Min. swing radius

mm

5200


Worker

Standard

Length of boom

mm

7100

Length of arm

mm

2945

Bucket capacity

m³

5.1

Optional

Length of boom

m³

/

Length of arm

m³

/

Bucket capacity

m³

3.5/3.5/4.0/4.6/6.0
