XCMG 20m articulated boom lift XGA20AC China new electric mobile aerial work platform price

Chat Now 1 / EA (Min. Order)
Model: XGA20AC
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 20m articulated boom lift XGA20AC China new electric  mobile aerial work platform price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:9100kg
  • Overall Dimension:8.49×2.49×2.38m
  • Table Size:1.8×0.76×1.1m
  • Max Lifting Height:18.7m
  • Rated Loading Capacity:256/350 kg
  • Lift Drive / Actuation:Electric Motor
  • Lift Mechanism:Articulated Lift
  • Model Number:XGA20AC
  • Brand Name:XCMG
  • Place of Origin:Jiangsu,China
  • Certification:CE/ISO

Specifications

  • Weight:9100.000kg
  • Condition:New
  • Moving Type:Other

XCMG 20m articulated boom lift XGA20AC China new electric  mobile aerial work platform price

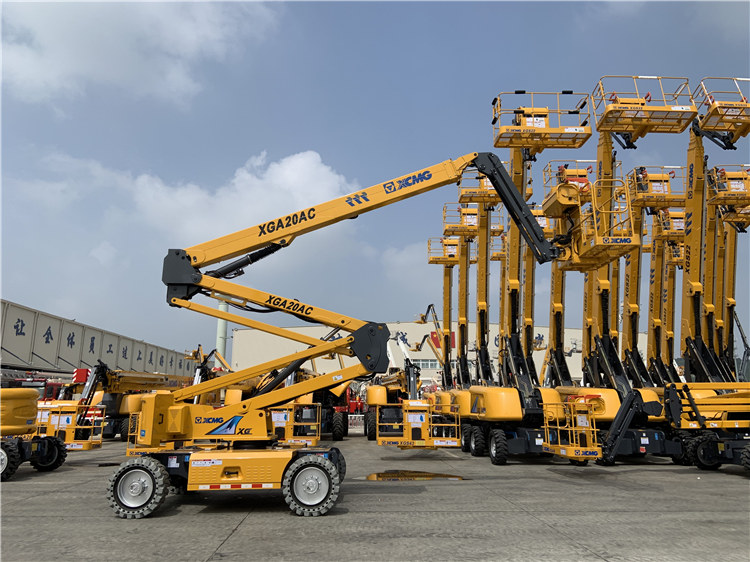

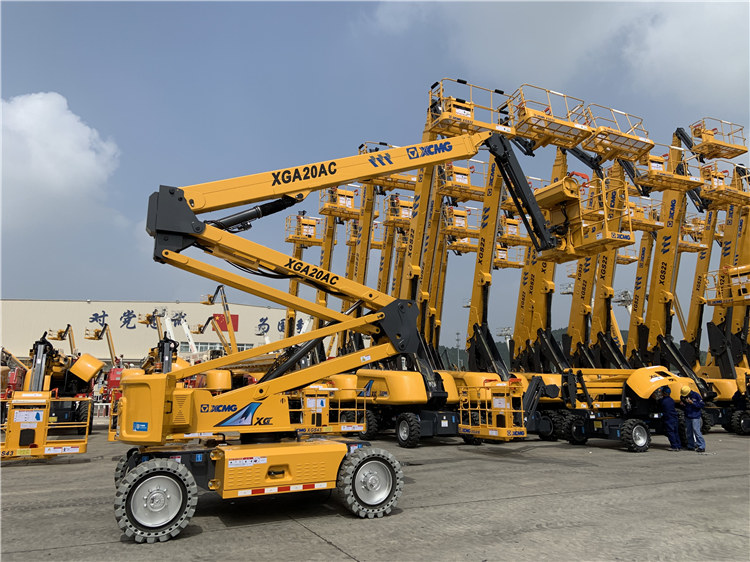

20m articulated boom lift China new electric mobile aerial work platform XGA20AC.



XGA20AC Electrical Articulated Mobile Elevating Work Platform, the compact whole machine structure, the strong load capacity and driving ability, the long endurance, the energy conservation environmental protection, suits the indoor and outdoor working condition to use.



Advantages and features:

1. The load capacity of 256kg/350kg is leading in the industry.

2. The overall dimensions are small in the industry and convenient for transportation.

3. Σ combined boom improves working efficiency.

4. Turning radius as low as 5m, flexible, challenging tight space operation.

5. It is equipped with 48V,420Ah large-capacity battery, providing longer endurance.

6. Lower dead weight of boom, stable energy saving.

7. Advanced four-wheel AC drive walking technology, steering differential control technology, strong power, smooth movement, climbing ability to reach 45%.

8. AC pump control and proportional control technology combined application, to provide users with more safe and smooth operation experience.

8. Environmental protection, zero emission, low noise, non-trace driving, suitable for indoor clean environment construction.

XCMG 20m articulated boom lift XGA20AC China new electric  mobile aerial work platform price

Item

Parameter

Parameters of running state

Overall dimensions (L × W × H)

8.49×2.49×2.38 m

Working platform overall dimensions

1.8×0.76×1.1 m

Max. speed

4.8 km/h

Max. gradeability

≥45

Min. external turning radius

≤5 m

Ground clearance/m (center)

0.3 m

Wheelbase

2.5 m

Total mass

9100 kg

Main Operation Performance Parameters

Rated working height

20.7 m

Max. platform height

18.7 m

Max. working range

11.98 m

Max. net spanning height

8.0 m

Scope of luffing of No. 1 arm

72°

Scope of luffing of No. 2 arm

73°

Fly Jib Luffing Range

-64°70°

Scope of platform swing

160°

Slewing angle

360°

Max. load capacity

256/350 kg

Max. rearward slewing

0.66 m

Control system

12V DC proportional control

Tire

830*285835*29533×12-20

Power parameters

Power source

420 Ah/48 V  DC

Power unit

12 kw/32 V AC

Auxiliary power unit

12 V  DC

Traveling motor

3.3 kw/32 V AC
