XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale

  • XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale
  • XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale
  • XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale
  • XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale
  • XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale

Share:
XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale
FOB for OEM Reference Price:Get Latest Price
$10000.00-$1000000.00 1 / EA (Min. Order)
Model: XGA20K
Engine: YUCHAI
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale
XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Weight:9900kg
  • Overall Dimension:8520*2300*2400mm
  • Table Size:1830×760×1150mm
  • Max Lifting Height:20.63m
  • Rated Loading Capacity:256/350kg
  • Power:36.8kw
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Articulated Lift
  • Model Number:XGA20K
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001
Details
  • weight:9900.000kg
  • Condition:New
  • Moving Type:Other

XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale

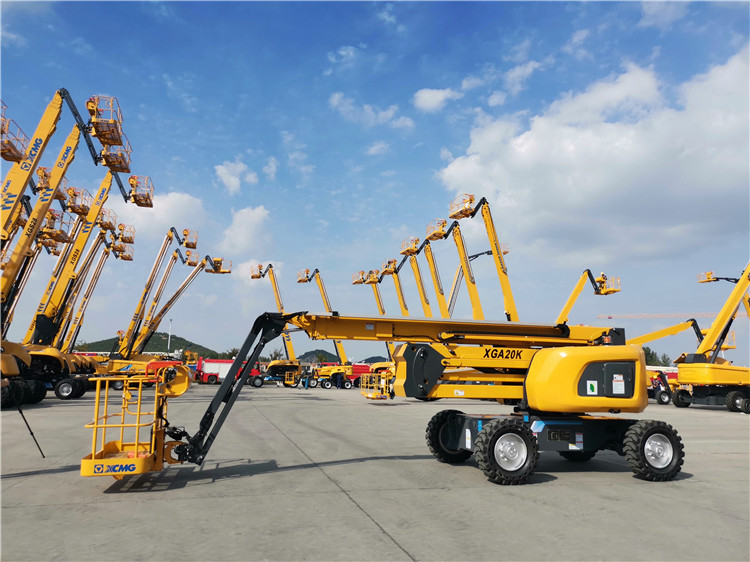

XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K.



AWP articulated aerial work platform XGA20K is a kind of layout is compact, the obstacle-surmounting efficiency and design precision, driving strong and simple operation of the crank arm type mobile elevating work platform. The machine is easy to operate, safe and reliable, accurate and efficient, and can widely meet the needs of users in construction, steel structure, petrochemical industry, venue and lease, etc.



Advantages and features:



1. 256/350 kg of double load and big load design, load performance in the industry advanced level.



2. Multi-directional precise positioning up, down and across functions as well as excellent stretch functions.



3. Electrical system USES a distributed PLC control technology, adaptive proportional valve control method, make the product environment adaptability with lead.



4. Full hydraulic pressure drive, 360 °angular free rotation, there is no Angle limits in full operation and simple operation, high reliability.



5. Compact clever, vehicle layout is compact, convenient for container transportation.

XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale

Item

Unit

Parameters

Overall length

mm

8520

Overall width

mm

2300

Overall height

mm

2400

Wheelbase

mm

2500

Max. working height

m

20.63

Max. platform height

m

18.63

Max. working range

m

12.08

Max. carrying weight

kg

256(unlimited)/350(limited)

Scope of luffing of No. 1 arm

°

0+72

Scope of luffing of Boom No.2

°

0+73

Crank arm luffing range

°

-6470

Slewing angle of turntable

°

360

Max. Tail swing

mm

0.54

Dimension of platform

mm

1830×760×1150

Slewing angle of platform

°

160

Overall weight

kg

9900

Max. traveling speed

km/h

5.5

Min. turning radius

m

5.0

Min. ground clearance

mm

330

Max. gradeability

%

45

Specification of tire

/

355/55D625

Engine model

/

YCF3050-T302

Engine rated power

kW/(r/min)

36.8/(2400)

XCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for saleXCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for saleXCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for saleXCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for saleXCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for saleXCMG official AWP 20m hydraulic articulated aerial work platform XGA20K for sale
