  • weight:16400.000kg
  • Condition:New
  • Moving Type:Wheel

XCMG 60 ton Heavy Dump Truck XGA3250D3WC Trucks Dump 6*4 Dump Truck Loading Capacity

XCMG 60 ton Heavy Dump Truck XGA3250D3WC Trucks Dump 6*4 Dump Truck Loading Capacity.

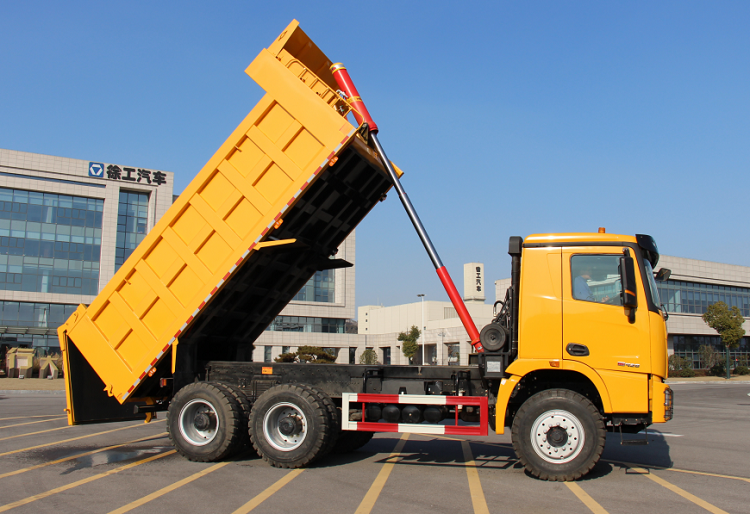

XCMG dump truck is designed for sand, stone, ore, ore powder, iron powder, construction slag and other different loads. Based on the construction site and urban road driving, it has a series of products of heavy load type, composite type and urban construction slag type.



This kind of product is characterized by strong power and efficient transportation, and has passed thousands of industrial verification experiment.After three years of practice and improvement, the power system, steering system and braking system have been comprehensively optimized and improved, which is more suitable for all kinds of heavy loads and complex working conditions.It has the obvious advantages of high bearing capacity, high reliability, high safety and high economy.



Advantages and Highlights:

Comfortable Driving, Pleasant Enjoyment

* Symmetrical, refined, excellent and ergonomic design, facilitates your driving operation; covering fttings adopt leather package, strong light absorption, no high-light points, reduce visual fatigue.

* Multi-functional configuration, large storage space; strictly control the gap and chromatism, meticulous work; silkstocking airbag seats.



Maximum Supporting capacity and practicability

* Golden power assembly-For the economic and reliabilit, reliable brands engine, Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power output are from 280hp to 420hp to achieve multi-working-condition.

* Modular designed chassis, neat arrangement highly universalizable. Meanwhile, the reliability and convenience of maintenance have been improved.

* HANVAN is the industry leader of Chinese heavy- -duty truck market, we provide standard model, composite model, heavy model, super -duty model for your personal needs.

* The key part have been optimized by CAE and passed relative quality test, the reliability of vehicle can be guaranteed.

XCMG 60 ton Heavy Dump Truck XGA3250D3WC Trucks Dump 6*4 Dump Truck Loading Capacity



Vehicle Model

 XGA3250D3WC

Mass parameter

Curb weight

16400kg

GVW

60000kg

Performances

Max Speed

78km/h

Min. turning diameter

20m

Grade ability

≥30%

Hill-hold ability

≥20%

Fuel Consumption

40L

Fuel Tank

400L

Dimensions

Overall dimensions

Length

8065mmChassis/8825mmTotal

Width

2500mm

Height

3192Chassis/3562Total

Wheelbase

4000+1400 mm

Wheel tread

Front

2060mm

Rear

1860mm

Min. Clearance

249mm

Approach angle

24°

Departure angle

23°

Front overhang

1500mm

Rear overhang

1165mmChassis/1925mmTotal

Cargo size

5800×2350×1300mm

Cabin

Model

G7SM

Passengers

2

Engine

Model

WP10.375

Displacement

9.726L

Output power

276kW

Mix torque speed

1460N·m

Clutch

Model

Φ430 Pull type diaphragm spring clutch

Operation

Hydraulic manual

Transmission

Model

12JSD160TPTO optional

Manipulation

Flexible shaft

Forward ratio

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1

Reverse ratio

14.86/3.33

Driven axle

Model

16T MAN

Ratio

5.73

Brake type

Drum type

Differential lock

Differential lock between axles and wheels

Front axle

Model

9.5t

Brake type

Drum type

Tire

Rim

9.75×22.5/8.50V-20

Tire

12.00R20-18PR

Frame

Type

Straight beam of equal width

Main beam

320×90×8 mm

Auxiliary beam

304×90×8 mm

Width of chassis structure

865mm

Suspension

Front

Type

Multi-spring

Amount of spring plate

10

Rear

Type

Multi-spring

Amount of spring plate

13

Steering

Steering type

Φ130 Circulating ball type hydraulic power

Ratio

23.27

Max pressure of pump

17MPa

Brake

Rated working pressure

1MPa

Driving brake

Dual circuit pneumatic braking

Parking brake

Spring energy storage air brake

Assistant brake

Engine exhaust brake

Electric System

Voltage

24V

Generator power

1.96kw

Battery voltage and Capacitance

2×12V/165Ah
