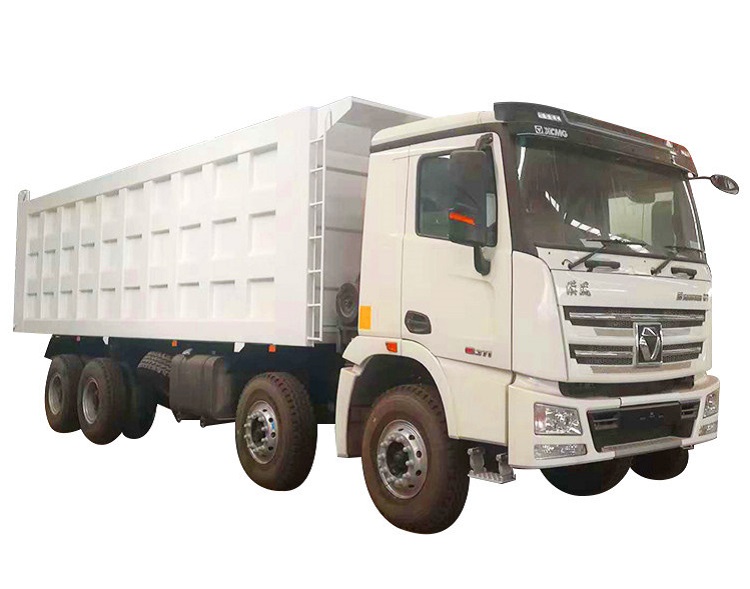

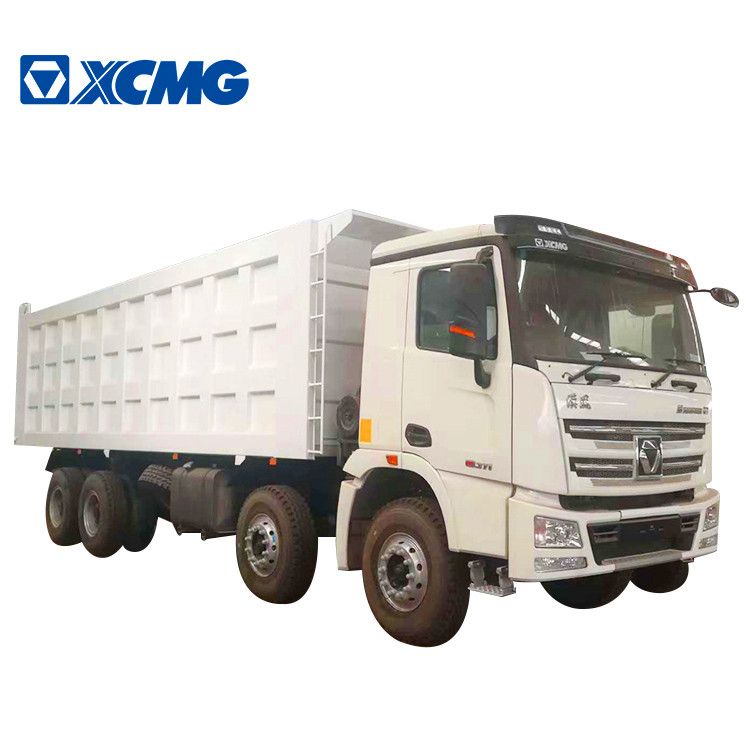

XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions

  • XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
  • XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
  • XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
  • XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
  • XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
  • XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
  • XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
  • XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions

Share:
XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
FOB for Heavy-duty truck Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XGA3310D2WE
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
Details
  • weight:17600.000kg
  • Condition:New
  • Moving Type:Other
  • Drive Wheel:8X4
  • Capacity (Load):40000
  • Horsepower:351 - 450hp
  • Fuel Type:Diesel
  • Transmission Type:Manual
  • Gross Vehicle Weight:17600
  • Dimensions (L x W x H) :11500*2550*3450mm
  • Max. travel speed:78km/h
  • Min. turning diameter:15m
  • Max. gradeability:32%
  • Brand Name:XCMG

XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions

XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions.



XCMG dump truck is designed for sand, stone, ore, ore powder, iron powder, construction slag and other different loads. Based on the construction site and urban road driving, it has a series of products of heavy load type, composite type and urban construction slag type.This kind of product is characterized by strong power and efficient transportation, and has passed thousands of industrial verification experiment.After three years of practice and improvement, the power system, steering system and braking system have been comprehensively optimized and improved, which is more suitable for all kinds of heavy loads and complex working conditions.It has the obvious advantages of high bearing capacity, high reliability, high safety and high economy.

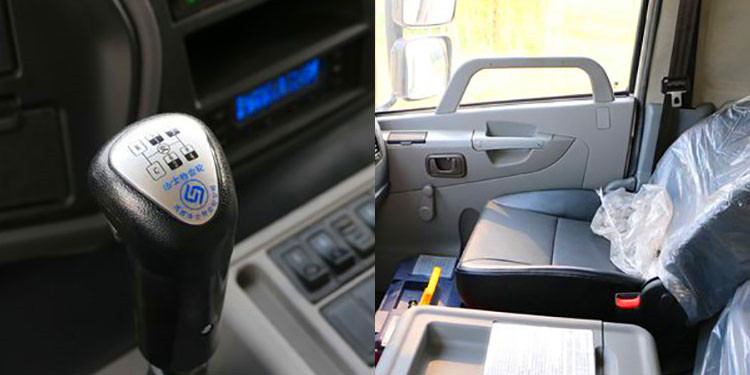

Comfortable Driving, Pleasant Enjoyment

* Symmetrical, refined, excellent and ergonomic design, facilitates your driving operation; covering fttings adopt leather package, strong light absorption, no high-light points, reduce visual fatigue.



* Multi-functional configuration, large storage space; strictly control the gap and chromatism, meticulous work; silkstocking airbag seats.



Maximum Supporting capacity and practicability

* Golden power assembly -- For the economic and reliabilit, reliable brands engine, Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power output are from 280hp to 420hp to achieve multi- -working-condition.



* Modular designed chassis, neat arrangement highly universalizable. Meanwhile, the reliability and convenience of maintenance have been improved.

XCMG official 8x4 20 ton dump trucks XGA3310D2WE China 24 cubic meter standard dump truck dimensions

Dimensions

Overall size (length×width×height)

11500×2550×3450mm

Cargobody size (length×width×height)

8600×2300×1800/2000mm

Wheelbase

3800+1450mm

Wheel tread (Front/Rear)

2060/1860mm

Min. ground clearance

285mm

Weight

Kerb mass

17600kg

Gross vehicle weight

60000kg

Rated loading capacity

40000kg

Performance

Max. travel speed

78km/h

Min. turning diameter

15m

Max. gradeability

32%

Approach angle

24°

Departure angle

23°

Fuel consumption

(48L/100 km)
