XCMG 350hp Trailer Truck Tractor 35 Ton XGA4181D5NA 4*2 Head Tractor Truck For Sale
Specifications
- Weight:6568.000kg
- Condition:New
- Moving Type:Other
- Driving Type:left
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

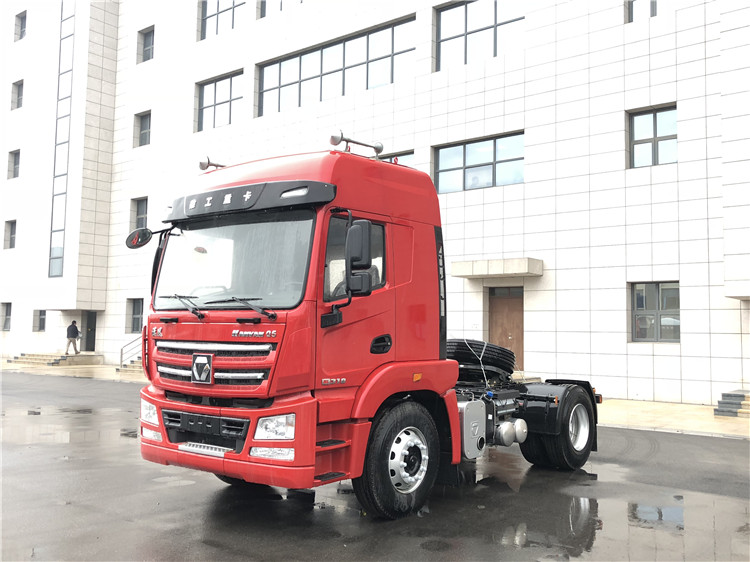

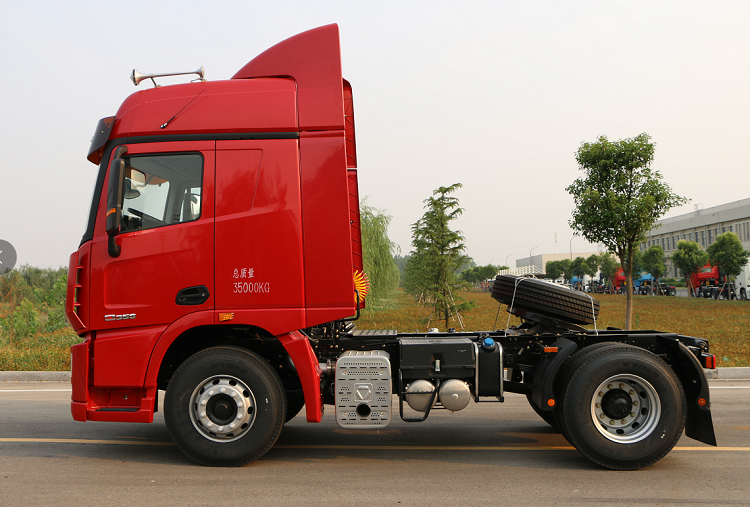

XCMG 350hp Trailer Truck
Tractor 35 Ton XGA4181D5NA 4*2 Head Tractor Truck For Sale.
XCMG
joint global advanced technology, widely used in the internationalization of
professional team, 3 years meticulously HANVAN han wind heavy card,
accumulative total examination of more than 200 kilometers, is more reliable
and safer, more comfortable, more economical, more environmental protection of
a new generation of high-end heavy card.
HANVAN
han wind heavy vehicle model, man-machine engineering, fine reached the
international advanced level, environmental protection, reliable safety,
durability, maneuverability and power performance, comfort, function and
configuration of domestic lead.
HANVAN
han wind tractor is mainly suitable for long-haul high-speed logistics, the
average distance of 300 km/h to 5000 km/h, can be widely used to transport the
following goods:
1,
daily industrial products: cold chain, valuables, tobacco, express delivery.
2,
daily industrial products: food, fruit, wood, stores, department stores,
container, bulk.
3,
iron powder, steel, iron powder, iron ore, finished product profile.
4,
bulk tank: cement, lime, fly ash and other industrial powder.
5,
dangerous goods: oil, natural gas, chemical liquid.
6,
ballast, sand, sand and gravel.
|
Vehicle Model |
XGA4181D5NA |
||
|
Mass parameter |
Curb weight |
6568kg |
|
|
GCW |
40000(With
Trailer）kg |
||
|
Traction Mass |
36370kg |
||
|
Performances |
Max Speed |
91（fully loaded）km/h |
|
|
Min. turning
diameter |
13m |
||
|
Grade ability |
≥30% |
||
|
Hill-hold
ability |
≥20% |
||
|
Fuel Tank |
400L |
||
|
Dimensions |
Overall
dimensions |
Length |
5985mm |
|
Width |
2547mm |
||
|
Height |
3785mm |
||
|
Wheelbase |
3600mm |
||
|
Wheel tread |
Front |
2047mm |
|
|
Rear |
1860mm |
||
|
Min. Clearance |
258mm |
||
|
Approach angle |
19° |
||
|
Departure angle |
45° |
||
|
Front overhang |
1485mm |
||
|
Rear overhang |
900mm |
||
|
Height of
traction base from the ground (no load) |
1242mm |
||
|

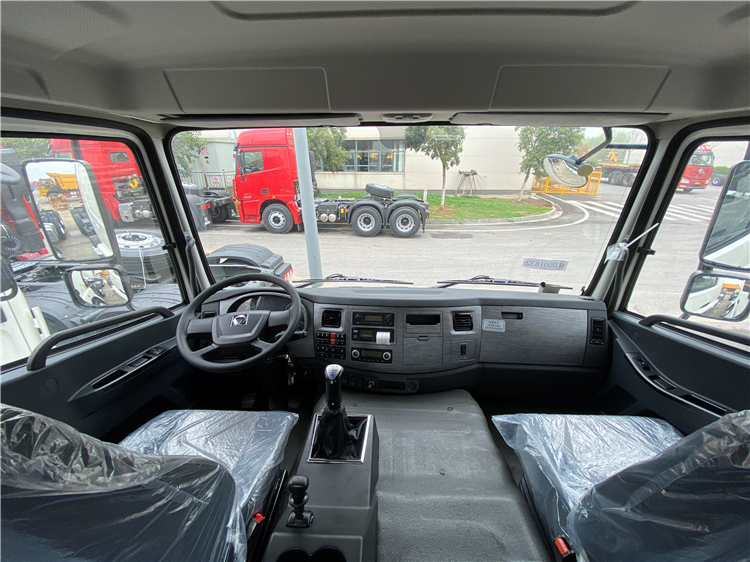

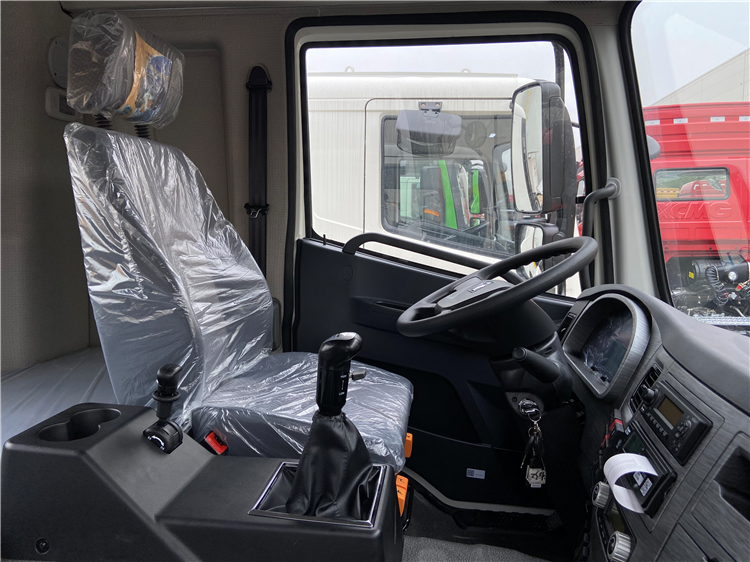

Cab |
Model |
G5LH |
|
|
Passengers |
2，3 |
||
|
Engine |
Model |
WP10.350E53 |
|
|
Displacement |
9.726L |
||
|
Output power |
257kW |
||
|
Mix torque speed
|
1600N·m |
||
|
Clutch |
Model |
Φ430 Pull type
diaphragm spring clutch |
|
|
Operation |
Hydraulic manual |
||
|
Transmission |
Model |
10JSD160 |
|
|
Operation |
Flexible shaft |
||
|
Forward ratio |
14.86/11.02/8.07/6.02/4.46/3.33/2.47/1.81/1.35/1.00 |
||
|
Reverse ratio |
14.24/3.19 |
||
|
Driven axle |
Model |
HANDE 485 |
|
|
Ratio |
3.7/3.364 |
||
|
Brake type |
Drum type |
||
|
Differential
lock |
Differential
lock between axles and wheels |
||
|
Front axle |
Capacity |
5.5T |
|
|
Brake type |
Drum type |
||
|
Wheel |
Rim |
22.5×9.00 |
|
|
Tire |
12R22.5-18PR |
||
|
Frame |
Type |
Rectangular beam |
|
|
Main beam |
280×80×8mm |
||
|
Auxiliary beam |
264×70×4mm |
||
|
Width of chassis
structure |
865mm |
||
|
Suspension |
Front |
Type |
Few leaf springs |
|
Amount of spring
plate |
3 |
||
|
Rear |
Type |
Multi-spring |
|
|
Amount of spring
plate |
4+3 |
||
|
Steering |
Steering type |
Φ100 Circulating
ball type hydraulic power |
|
|
Ratio |
23.27 |
||
|
Max pressure of
pump |
17Mpa |
||
|
Brake |
Rated working
pressure |
1Mpa |
|
|
Driving brake |
Dual circuit
pneumatic braking |
||
|
Parking brake |
Spring energy
storage air brake |
||
|
Assistant brake |
Engine exhaust
brake |
||
|
Electric System |
Voltage |
24V |
|
|
Generator power |
2.2kw |
||
|
Battery voltage
and Capacitance |
2×12V/165Ah |
||
