XCMG Official XGC650 Crawler Crane for sale

  • XCMG Official XGC650 Crawler Crane for sale

Share:
XCMG Official XGC650 Crawler Crane for sale
FOB for Cranes Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official XGC650 Crawler Crane for sale
  • Summary
  • Details
Summary
  • Model Number:XGC650
  • Brand Name:XCMG
  • Place of Origin:China
  • Max. Lifting Height:
  • Max. Lifting Load:650t
  • Rated Lifting Moment:7848t.m
  • Rated Loading Capacity:650t
  • Application:Construction
  • Certification:CE/ISO9001
Details
  • Product Name:357636-XGC650
  • Display online time:2019-11-07
  • weight:496000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Width of track shoe:130m/min
  • Travel speed with no load:0.7r/min
  • Min. clearance from the ground:0.8km/h
  • Max. gradeability:0.3
  • Ground pressure:0.146MPa
  • Rated power of engine:447kw
  • Hydraulic tank capacity:24m~108m
  • Min. rated radius:12m×3.3m×3.4m
  • Main boom hoisting time:65t


XCMG Official XGC650 Crawler Crane for sale

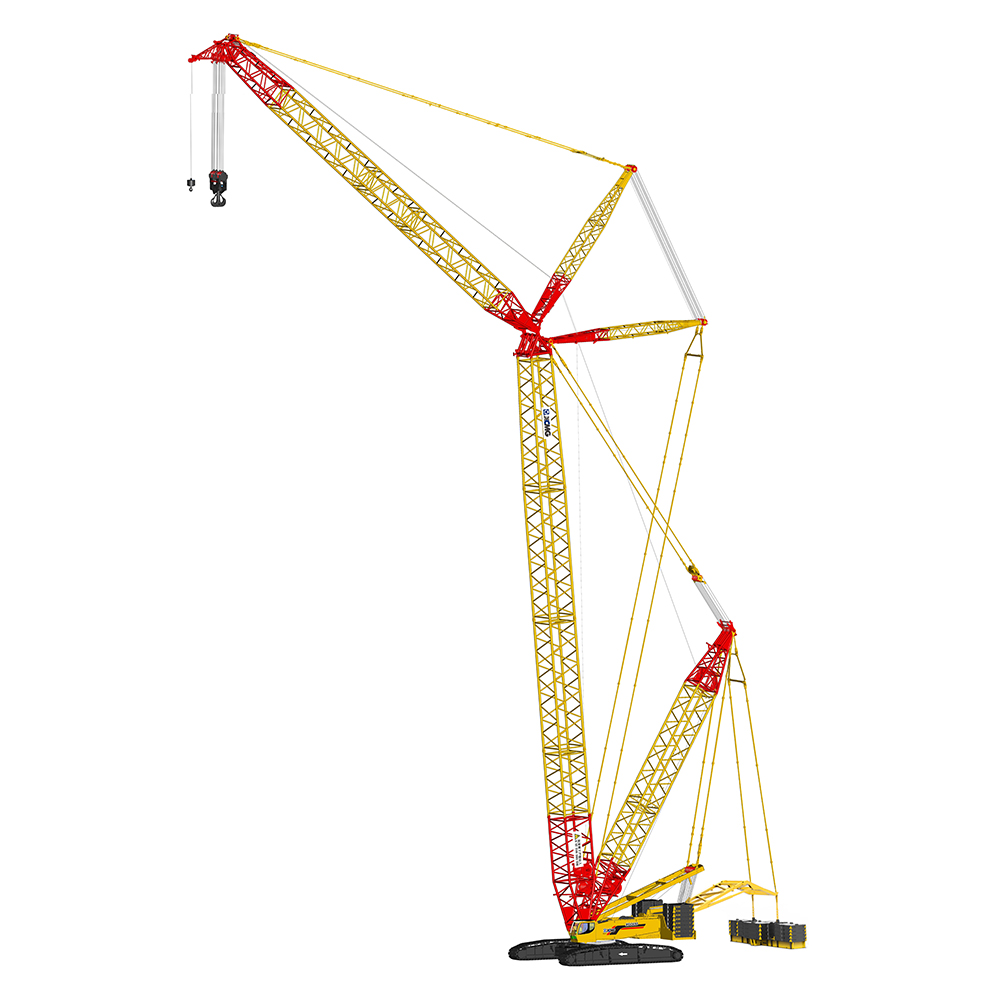

XCMG Official XGC650 Crawler Crane for saleXGC650 crawler crane
       XGC650 is a new generation crawler crane which is successfully developed by XCMG on the basis of QUY series product. The crane of this model has been improved from the aspects of assembly and disassembly convenience, operation comfort and lifting capacity, safer and more reliable. Equipped with various advanced technologies such as mast one-key erecting and stepless luffing, the crane’s performance is superior to that with other domestic brands in various aspects.
       Under the premise of conventional function realization, wind power working condition has been specially developed for XGC650 to meet the installation requirement of 2.0MW~3.0MW wind power equipment.
XCMG Official XGC650 Crawler Crane for sale


XCMG Official XGC650 Crawler Crane for sale


XCMG Official XGC650 Crawler Crane for sale

Item

Unit

Parameter value

Operation performance parameter

*

Max. rated lifting capacity for boom

(t)

650

Max. rated lifting capacity for fixed jib

(t)

                          Max. rated lifting capacity for luffing jib

(t)

330

Max. load moment

(t.m)

7848

Max. rated lifting capacity for tower jib

(t)

330

Max. rated lifting capacity for boom single top

(t)

30

Max. rated lifting capacity for special jib

(t)

170

Dimension parameter

*

Boom length

(m)

24108( heavy type)/
   66
138(light type)

Boom luffing angle

(°)

-385

Fixed jib length

(m)

Tower jib length

(m)

2496

Max. dimension of single unit in transport state(L×W×H)

(m)

12×3.3×3.4

Fixed jib offset angle

(°)

Special jib length

(m)

12

Speed parameter

*

Max. single line speed for hoist mechanism

(m/min)

130

Max. single line speed for boom luffing mechanism

(m/min)

2×58

 Max. single line speed for jib luffing mechanism

(m/min)

Max. slewing speed

(r/min)

0.7

Max. travel speed

(km/h)

0.8

Grade ability

(%)

30

Mean ground pressure

(MPa)

0.146

Max. single line speed for tower jib luffing mechanism

(m/min)

100

 Max. single line speed for super lift luffing

(m/min)

110

Engine

*

Model

-

QSX15

Engine power

(kW)

447

Emission

-

EU III

Mass parameter

*

Overall crane mass

(t)


496(main hook, 24m boom)

Max. mass of single unit in transport state

(t)

65
