- Summary
- Details
- Model Number:XGT7020-12
- Brand Name:XCMG
- Place of Origin:China
- Application:Building Construction
- Certification:ISO9001
- Product Name:357636-XGT7020-12
- Display online time:2019-11-12
- weight:16800.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:other
- Type:flat top
- Height:60M
- Jib:70M
- Tip Load:2.0T
- Max loading:12T
- Section size:2.0×2.0×3.0M

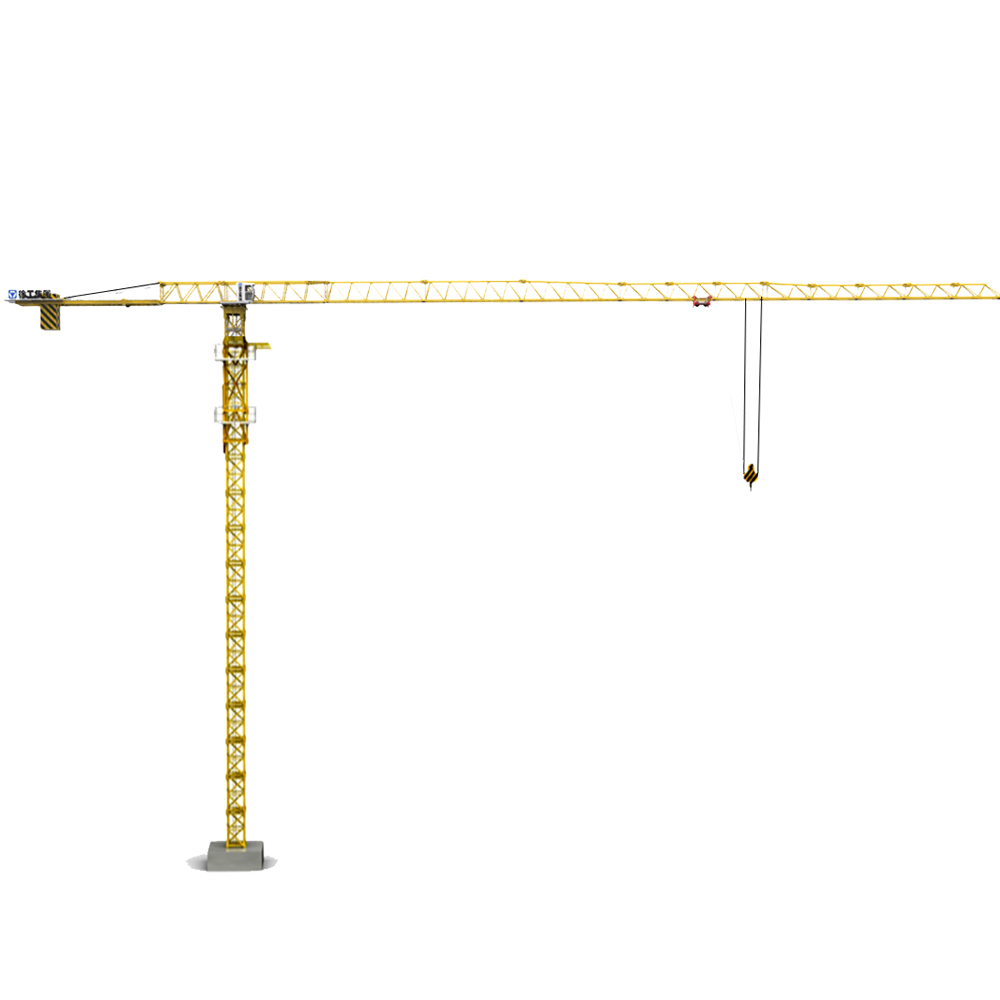

XCMG Official XGT7020-12 Tower Crane
1. The most secure high-end construction lifting machinery benchmark.
2. The lifting performance is better than competitors.
New XGT-AMCS intelligent management system.
3. With the speed control function, the position accuracy is up to millimeter; ensure that the hoisting is smooth and accurate.
4. Quick disassembly, easy and efficient, the platforms and booms are quick-assembly structures, which save 3.2 hours for installation.
Mechanisms | |||||||
Mechanisms | Example | Model | Speed | Hoist Weight | Rope Capacity | Power | |
Hoisting | 55JLF30A | 0-90 | 2.1 | 695m>695m* | 55 | ||
0-68 | 4.2 | ||||||
0-45 | 6.0 | ||||||
0-45 | 4.2 | ||||||
0-34 | 8.4 | ||||||
0-22.5 | 12.0 | ||||||
Trolleying | 6JXF5 | 0-63m/min | 5.5 | ||||
Slewing | JH12CT6 | 0-0.66r/min | 2x7.5 | ||||
Travelling | RT | 0-25m/min | 4 x4 | ||||
Main Supply ～380V（±10%） 50Hz | |||||||
Grossing Power（Excluding climbing and travelling） 75.5kW | |||||||

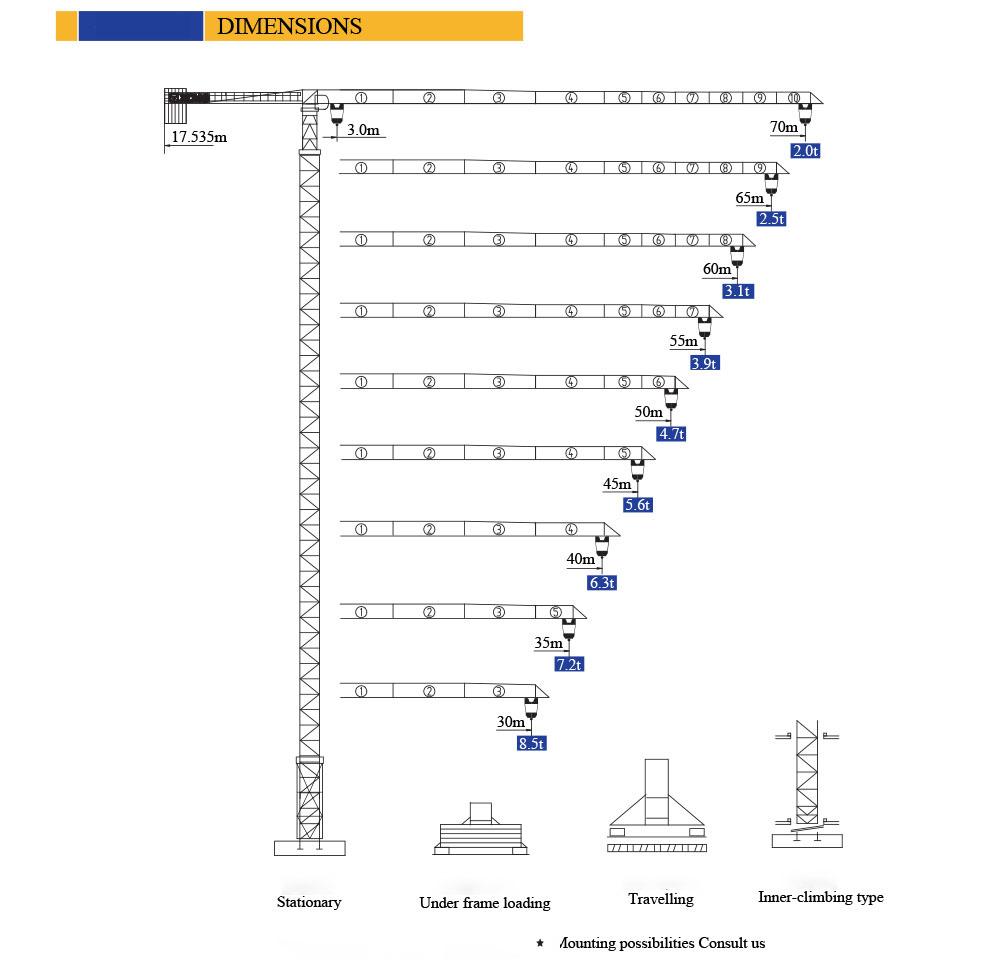

LOAD DIAGRAMS | |||||||||||||||||
Jib | Rmm | R(Cmax) | Cmax | Range | |||||||||||||
20 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | ||||||||
70m |
| 3 | 28.6 | 6.0t | 6000 | 5766 | 4825 | 4119 | 3569 | 3130 | 2770 | 2471 | 2217 | 2000 | |||
| 3 | 15.1 | 12t | 8836 | 5562 | 4626 | 3924 | 3379 | 2942 | 2585 | 2287 | 2035 | 1800 | ||||
65m |
| 3 | 31.6 | 6.0t | 6000 | 5334 | 4567 | 3970 | 3492 | 3101 | 2776 | 2500 |
| ||||
| 3 | 16.5 | 12t | 9760 | 6177 | 5154 | 4386 | 3769 | 3311 | 2920 | 2595 | 2300 |
| ||||
60m |
| 3 | 34.4 | 6.0t | 6000 | 5801 | 5053 | 4402 | 3881 | 3455 | 3100 |
|
| ||||
| 3 | 18 | 12t | 10733 | 6826 | 5710 | 4873 | 4221 | 3701 | 3274 | 2900 |
|
| ||||
55m |
| 3 | 38 | 6.0t | 6000 | 5665 | 4946 | 4371 | 3900 |
|
|
| |||||
| 3 | 19.9 | 12t | 11956 | 7642 | 6409 | 5484 | 4765 | 4190 | 3700 |
|
|
| ||||
50m |
| 3 | 40.4 | 6.0t | 6000 | 5312 | 4700 |
|
|
|
| ||||||
| 3 | 21.2 | 12t | 12000 | 8190 | 6879 | 5896 | 5131 | 4500 |
|
|
|
| ||||
45m |
| 3 | 42.3 | 6.0t | 6000 | 5400 |
|
|
|
|
| ||||||
| 3 | 22.2 | 12t | 12000 | 8623 | 7250 | 6220 | 5600 |
|
|
|
|
| ||||
40m |
| 3 | 40 | 6.0t | 6000 |
|
|
|
|
|
| ||||||
| 3 | 22.5 | 12t | 12000 | 8729 | 7340 | 6300 |
|
|
|
|
|
| ||||
35m |
| 3 | 35 | 6.0t | 6000 |
|
|
|
|
|
|
| |||||
| 3 | 22.2 | 12t | 12000 | 8564 | 7200 |
|
|
|
|
|
|
| ||||
30m |
| 3 | 30 | 6.0t | 6000 |
|
|
|
|
|
|
|
| ||||
| 3 | 22 | 12t | 12000 | 8500 |
|
|
|
|
|
|
|
| ||||
Any other lifting capacity, consult us! | |||||||||||||||||
BALLAST | |||||
Counter-jib ballast |
| ||||
|
|
| PZ3100 | PZ2000 | PZ1500 |
70m | 17 535m | 21000 | 5 | 2 | 1 |
65m | 17.535m | 21000 | 5 | 2 | 1 |
60m | 17.535m | 19500 | 5 | 2 | 0 |
55m | 17.535m | 19000 | 5 | 1 | 1 |
50m | 17.535m | 17900 | 4 | 2 | 1 |
45m | 17.535m | 16400 | 4 | 2 | 0 |
40m | 17535m | 14400 | 4 | 1 | 0 |
35m | 17.535m | 12400 | 4 | 0 | 1 |
30m | 17.535m | 10800 | 3 | 0 | 1 |
