- Summary
- Details
- Model Number:XGTT100CII(6013-8)
- Brand Name:XCMG
- Place of Origin:China
- Span:60m
- Rated Loading Capacity:6000kg
- Application:Building Construction
- Certification:ISO9001

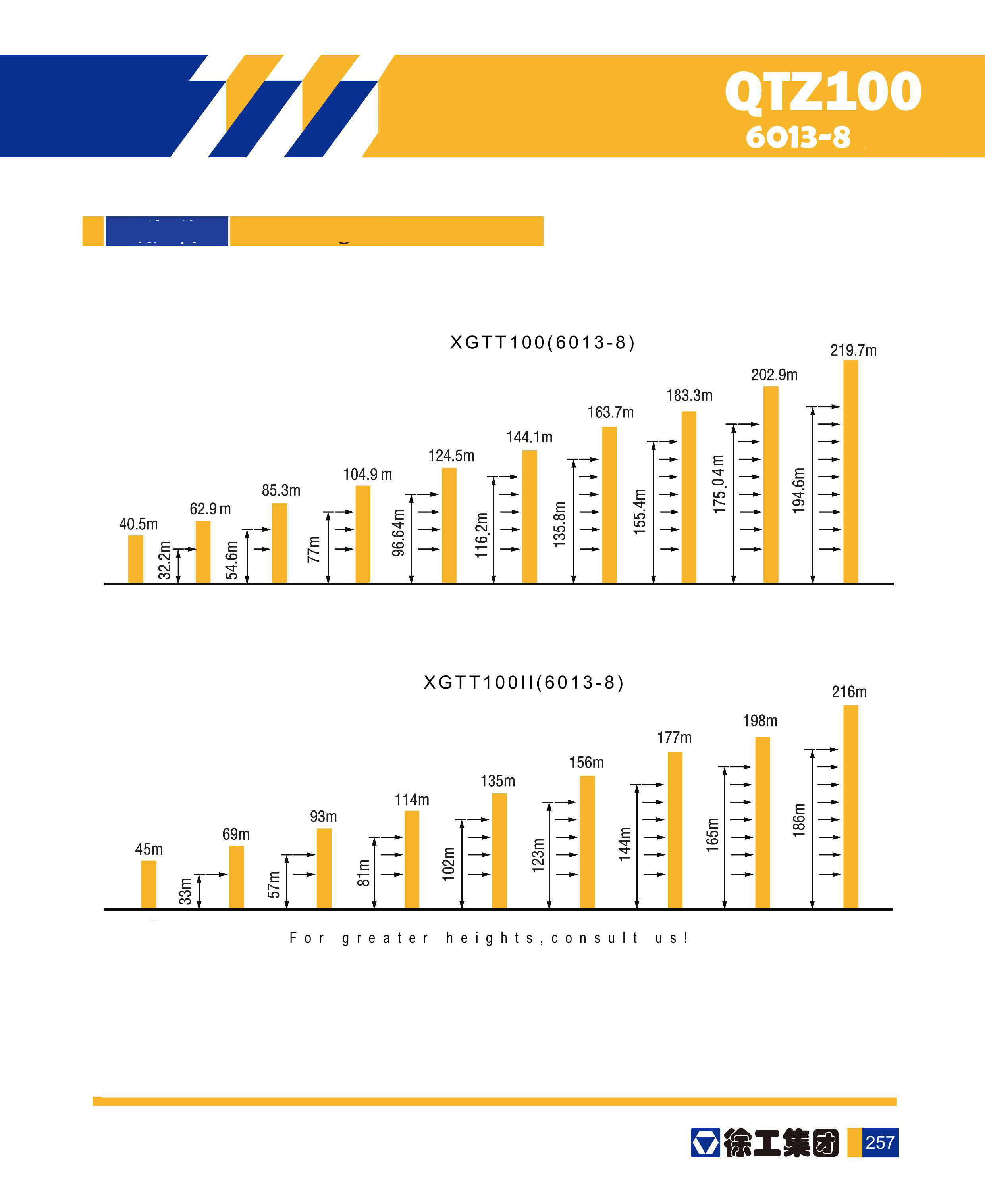

- Max. Lifting Height:216m
- Max. Lifting Load:6000kg
- Product Name:G5B63BB1BD707B
- Display online time:2019-11-12
- weight:80500.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:other

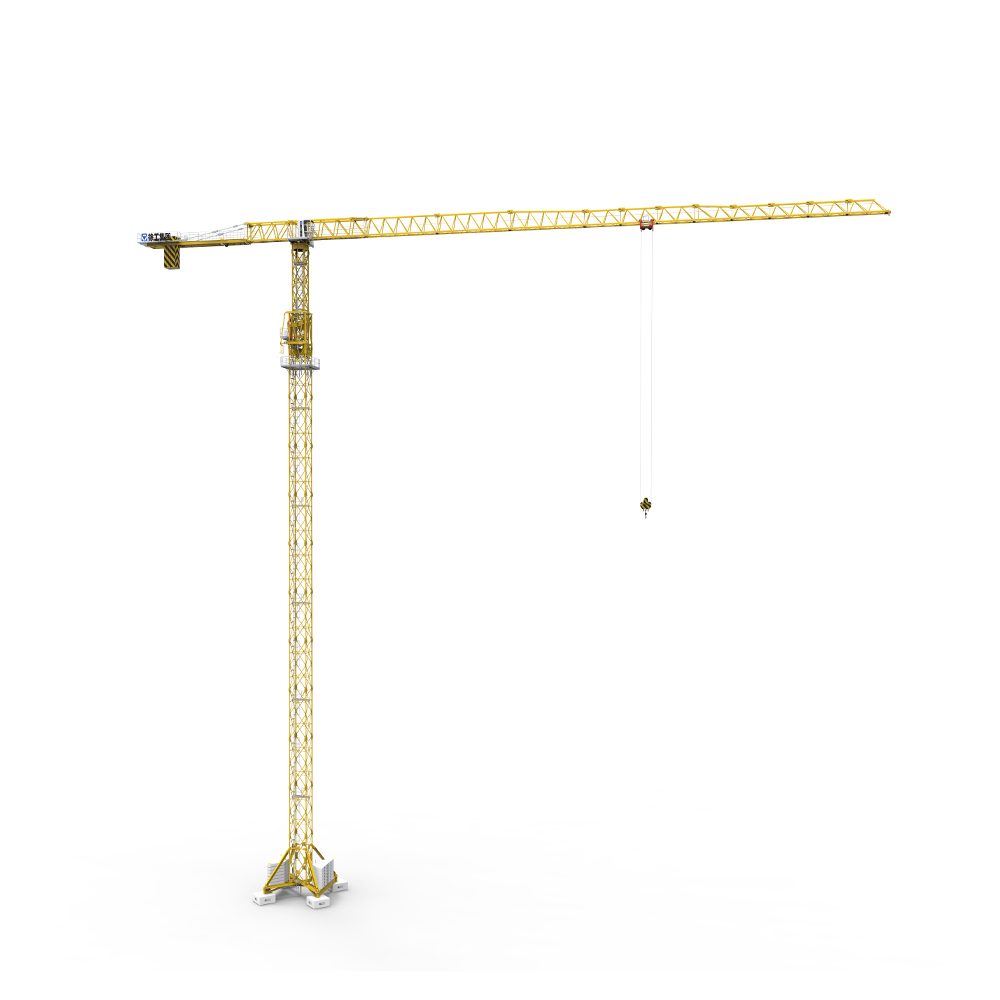

XGTT100CII(6013-8) Tower Crane:
XGTT100CⅡ(6013-8)
tower crane is a new generation of self-elevating tower crane developed and
manufactured by Xuzhou Construction Machinery Co., Ltd. of XCMG Group,
according to the national and industrial standards as well as relevant
international standards.
2. This crane can
operate in independent-stationary, under-frame-stationary, attached or
travelling modes which apply to various constructing objects.
3. The appearance of
this crane is internationally fashionable and beautiful, therefore popular with
customers both at home and abroad.
4. The crane is
characterized by its high operating speed, sound speed control performance as
well as stable and reliable operation.
5. The electrical system
is equipped with French Schneider components, featuring long service life,
small failure rate and simple maintenance. Also, it works steadily.
6. The safety devices
equipped, which are mechanical or mechanical-electrical integrated products,
can help to ensure the reliable work of tower crane.
_3.JPG)
_2.jpg)
 _1-.jpg)
Mechanisms | |||||||
Mechanisms | Example | Model | Speed | Hoist Weight | Rope Capacity | Power | |
Hoisting | 30QR20P | 40 | 4 | 450>450* | 30/30kw | ||
80 | 2 | ||||||
20 | 4 | ||||||
40 | 2 | ||||||
Trolleying | 50BT65 | 50/27/9m/min | 5/3.7/1.1kw | ||||
Slewing | 37HR100 | 0-0.6r/min | 2×3.7kw | ||||
Travelling | RT443 | 12.5/25m/min | 2×2.6/5.2kw | ||||
Main Supply ～380V（±10%） 50Hz | |||||||
Grossing Power（Excluding climbing and travelling） 42.4kW | |||||||
For more mechanisms optional,consult us! | |||||||

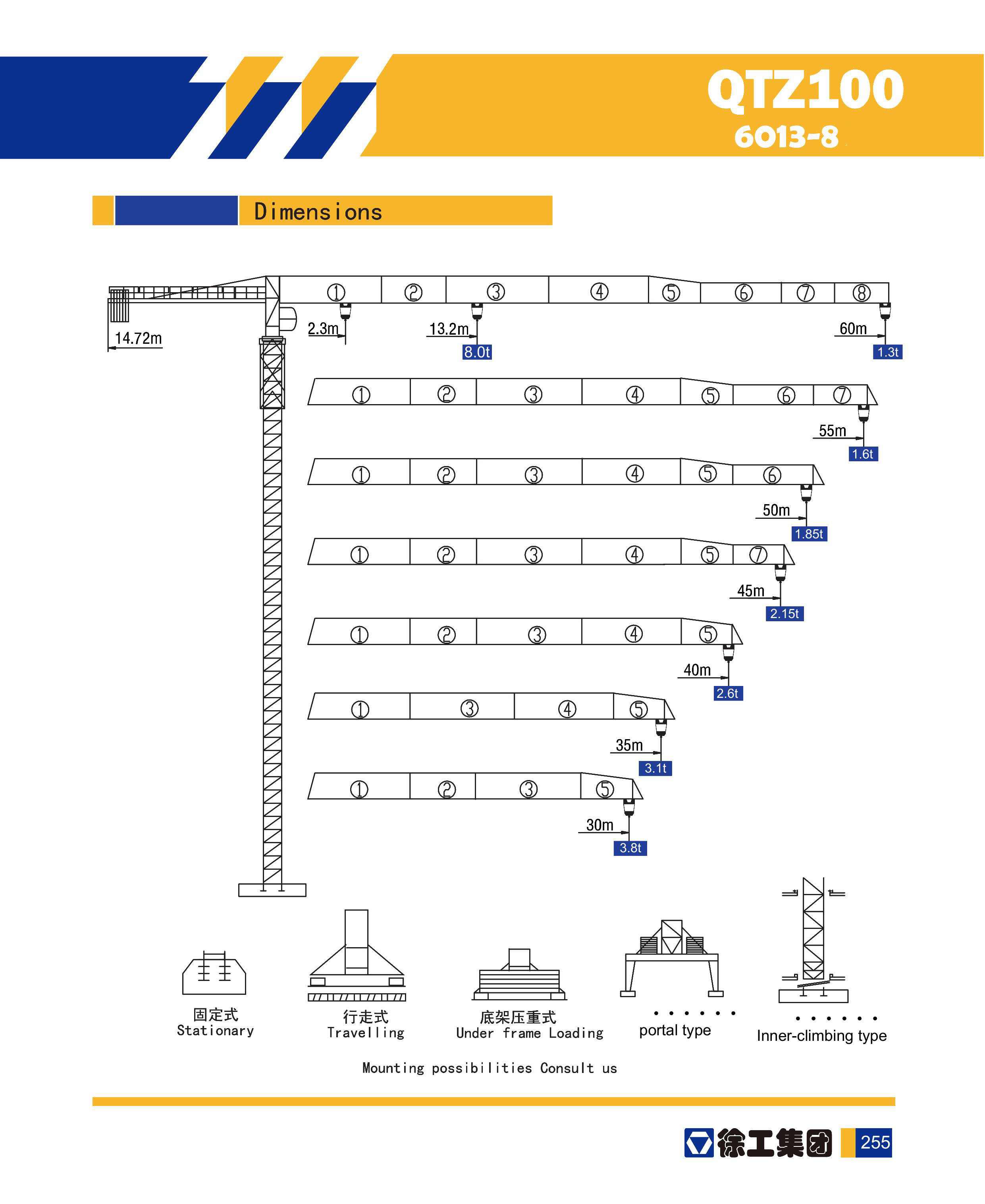

LOAD DIAGRAMS | ||||||||||||||||
jib | Rmin | R(Cmax) | Cmax | Range | ||||||||||||
10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||||||
60m |
| 2.3 | 24.1 | 4t | 4000 | 3074 | 2534 | 2131 | 1820 | 1571 | 1369 | 1300 | ||||
| 2.3 | 13.2 | 8t | 8000 | 6896 | 4926 | 3736 | 3005 | 2464 | 2062 | 1750 | 1501 | 1299 | 1130 | ||
55m |
| 2.3 | 25.7 | 4t | 4000 | 3318 | 2742 | 2313 | 1981 | 1716 | 1600 | |||||
| 2.3 | 14 | 8t | 8000 | 7395 | 5296 | 4061 | 3248 | 2673 | 2243 | 1911 | 1646 | 1430 | |||
50m |
| 2.3 | 26 | 4t | 4000 | 3375 | 2791 | 2356 | 2019 | 1850 | ||||||
| 2.3 | 14.2 | 8t | 8000 | 7512 | 5383 | 4130 | 3305 | 2721 | 2286 | 1949 | 1680 | ||||
45m |
| 2.3 | 26.3 | 4t | 4000 | 3423 | 2832 | 2391 | 2150 | |||||||
| 2.3 | 14.4 | 8t | 8000 | 7610 | 5455 | 4187 | 3353 | 2762 | 2321 | 1980 | |||||
40m |
| 2.3 | 27.3 | 4t | 4000 | 3569 | 2956 | 2600 | ||||||||
| 2.3 | 14.9 | 8t | 8000 | 7909 | 5677 | 4363 | 3499 | 2886 | 2430 | ||||||
35m |
| 2.3 | 27.6 | 4t | 4000 | 3620 | 3100 | |||||||||
| 2.3 | 15 | 8t | 8000 | 5754 | 4425 | 3550 | 2930 | ||||||||
30m |
| 2.3 | 28.1 | 4t | 4000 | 3800 | ||||||||||
| 2.3 | 15.3 | 8t | 8000 | 5876 | 4522 | 3630 | |||||||||
QTZ100 6013-8 | ||||||||||||||||
Ballast | |||||
Counter-jib ballast |
| ||||
|
|
| PZ2500 | PZ1300 | PZ1000 |
60m | 14.72m | 12300 | 4 | 1 | 1 |
55m | 14.72m | 11300 | 4 | 1 | 0 |
50m | 14.72m | 10000 | 4 | 0 | 0 |
46m | 14.72m | 8800 | 3 | 1 | 0 |
40m | 14.72m | 7500 | 3 | 0 | 0 |
35m | 14.72m | 6000 | 2 | 0 | 1 |
30m | 14.72m | 5000 | 2 | 0 | 0 |
QTZ100 6013-8 | |||||
