            XCMG official manufacturer pavement maintenance vehicle road machinery XLY103TB for sale




    Specifications
- Weight:16000.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

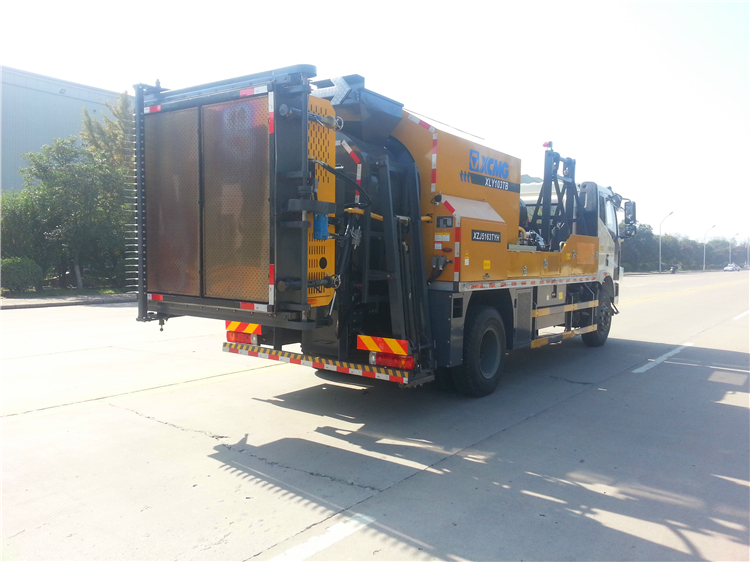

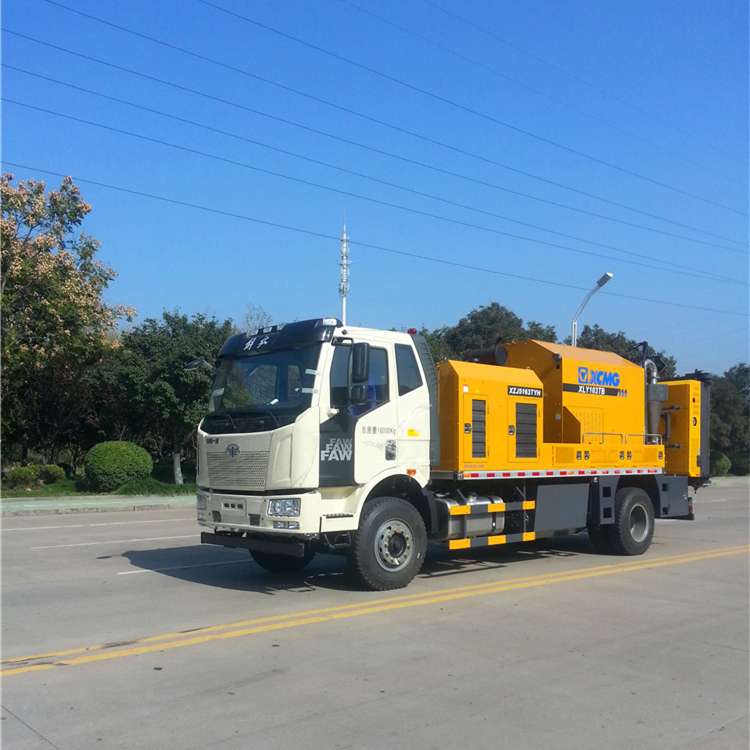

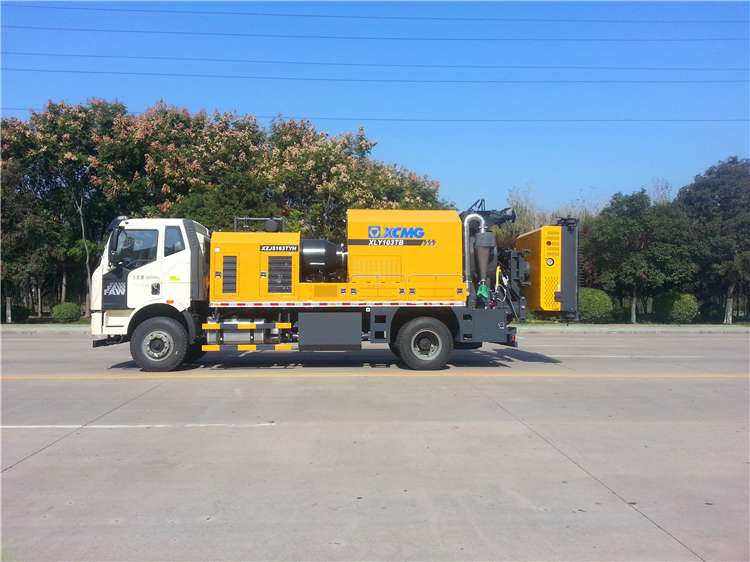

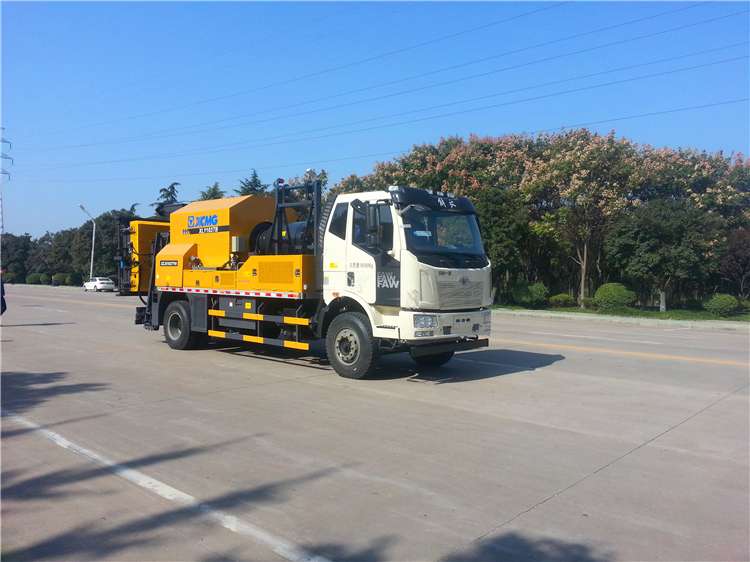

XCMG official manufacturer pavement maintenance vehicle road machinery XLY103TB.
Main performance and characteristics:
*Weichai up-mounted engine(45kw), chassis engine startup is not required during operation and has good usage economy.
*It is equipped with hydraulic feeding, asphalt mixture heating, asphalt spraying,discharging, waste storage and other functions.
*Heating system for variable power hot-air circulation drum bunker, which is characterized by quick heating and energy conservation and environmental protection.
*Optimized drum spiral discharging system, which is characterized by quick discharging speed and no residue.
*Three partition hot air type pavement heating wall achieves uniform heating without aging; hydraulic raking equipment can quickly scarify and harrow the heated pavement with low labor intensity, good loosen effect.
.jpg)
| Item | Unit | Parameter | |
| Product model | - | XZJ5163TYH (XLY103TB) | |
| Working performance parameter | |||
|



 Drum bunker | Effective capacity | m³ | 1 |
|
 | Screed heating mode | / | Heated air circulation |
|
 | Single heating time of mixing silo | min | 15~ 20 |
|
 | Feeding speed of rotary silo | kg/min | 380 |
|
 | Feeding mode | / | Hydraulic automation |
|
 | Upper hopper capacity | m3 | 0.13 |
| Volume of the waste box | m³ | 0.48 | |
| Chassis performance parameter | |||
| Type | - | FAW Jiefang CA1160P62K1L2A1E5Z | |
| Engine type | - | CA4DK1-22E51 | |
| Engine power/speed | kW/r/min | 165/2300 | |
| Overall dimension parameter | |||
| Overall dimension incl. heating wall(length× width× height) | mm | 9640×2495×3440 | |
