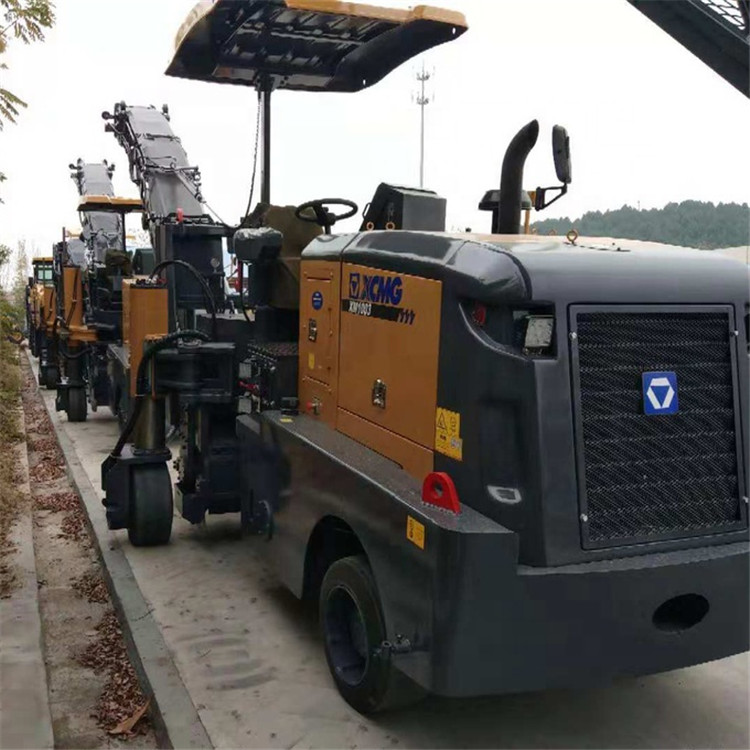

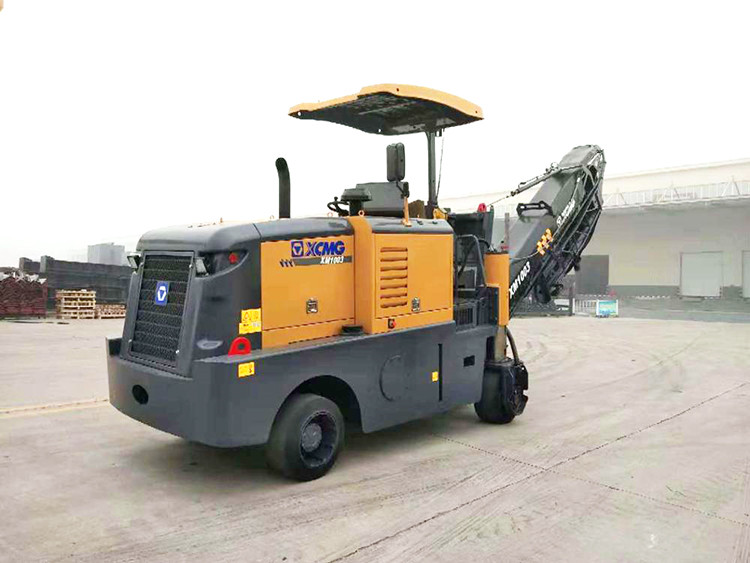

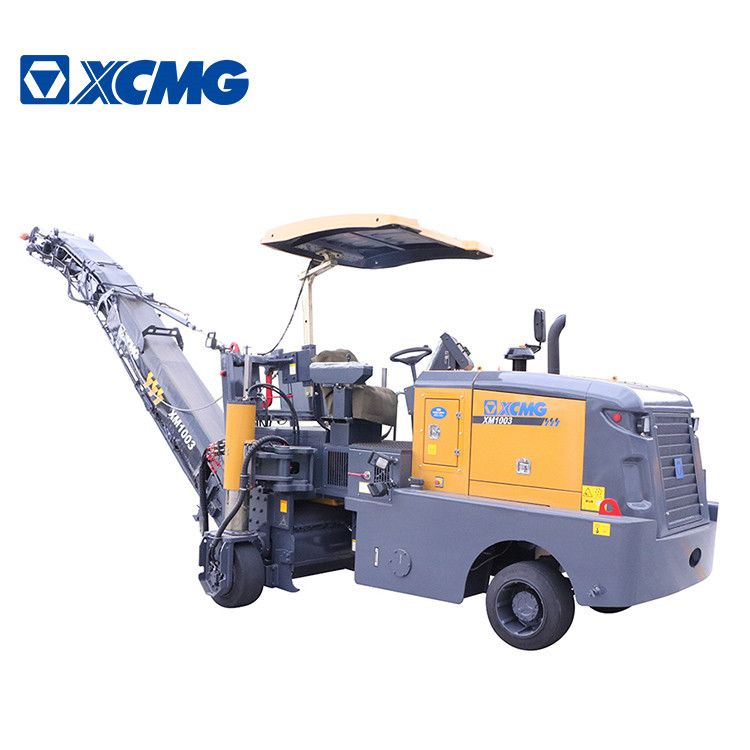

XCMG Official XM1003 Road Milling machine.

XM1003 road milling machine is a high-performance 1m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots.

Performance Characteristics:

* This machine is powered by Shangchai 162kW electronic injection engine is applied to achieve higher power reserve than domestic like products. With higher working power, this engine can be used to effectively handle the working conditions with harder material and higher milling depth.

* Engine complies with European III /American III /China III emissions standards, green construction, reduces environmental pollution. With the fuel consumption at 36.7L/h under rated power, this engine features lower fuel consumption and better operation economy.

* The full-hydraulic four-wheel drive traveling system is applied to provide powerful traction force.

* The 45m/min working speed is higher than the like products. Three working speeds are provided to achieve more accurate matching between working speed and working load.

* The super-high capacity water tank and fuel tank (800L and 350L respectively) guarantee longer continuous working time and reduce the down time.

* The limit load control technology is applied to automatically adjust the traveling speed based on the milling load and realize the maximum working efficiency on the precondition of protecting the machine systems.

* The intelligent sprinkling control technology is applied so that the sprinkling is turned off automatically at the stop of milling and is turned on automatically at the restart of milling to save the manual operation steps.
