XCMG Official XM1303K 1300mm Asphalt Cold Milling Machine for Sale
Summary
- Dimension(L*W*H):4837×2357×3745mm
- Weight:17500kg
- Power(W):177kw/2200rpm
- Model Number:XM1303K
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Milling width (mm):1300mm
- Milling depth (mm):300mm
- Certification:CE/ISO9001
Specifications
- weight:17500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

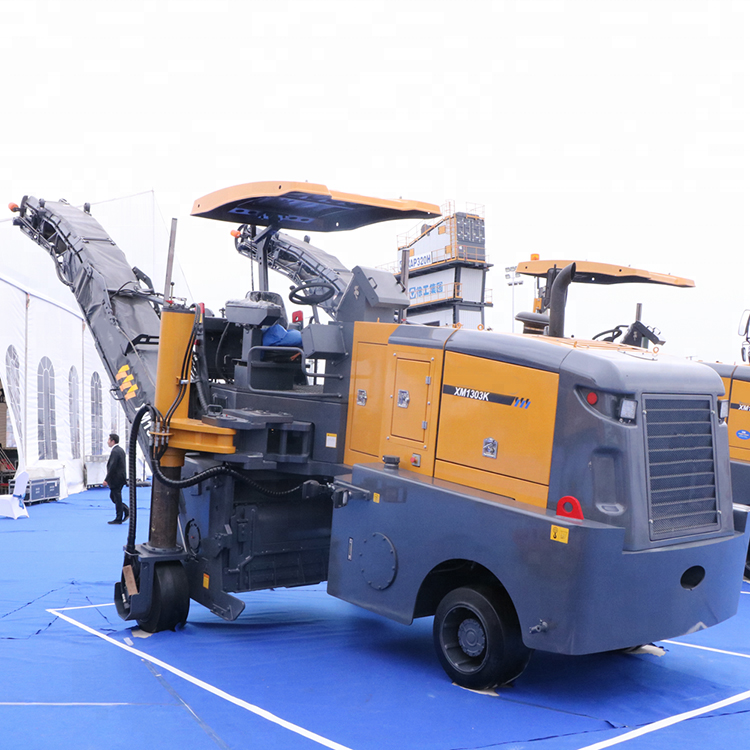

XCMG Official XM1303K 1300mm Asphalt Cold Milling Machine.
XM1303K road milling machine is a high-performance 1.3m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots.
Performance Characteristics:
* This machine is powered by Shangchai 177kW electronic injection engine is applied to achieve higher power reserve than domestic like products. With higher working power, this engine can be used to effectively handle the working conditions with harder material and higher milling depth.
* This engine conforms to the China III emission regulation to advocate environmental-friendly construction and reduce environmental pollution. With the fuel consumption at 40L/h under rated power, this engine features lower fuel consumption and better operation economy.
* The milling drum in diameter of 930mm is installed to achieve the 300mm maximum miling depth and remove the whole asphalt concrete pavement by single cycle.
* The 45m/min working speed is higher than the like products. Three working speeds are provided to achieve more accurate matching between working speed and working load.
* The milling drum is driven by mechanical belt to achieve higher drive efficiency than hydraulic drive. The super -high capacity water tank and fuel tank (860L and 450L respectively) guarantee longer continuous working time and reduce the down time.
* The intelligent sprinkling control technology is applied so that the sprinkling is turned off automatically at the stop of milling and is turned on automatically at the restart of milling to save the manual operation steps.
Item | Unit | XM1303K | |
Milling drum | Milling drum Milling width | mm | 1300 |
Milling depth | mm | 300 | |
Tool spacing | mm | 15 | |
Number of tools |
| 119 | |
Rotor diameter with tool | mm | 930 | |
Engine | Model |
| SC9DK240G3 |
Cooling method Water cooling |
| Water cooling | |
Number of cylinders |
| 6 | |
Rated power/speed | kW | 177 | |
Displacement | L | 8.8 | |
Rated power consumption | L | 40 | |
Comprehensive fuel consumption | L | 13.3 | |
Emission Standard |
| National Ⅲ | |
Electrical system | V | 24 | |
Box capacity | Box capacity Fuel tank | L | 450 |
Hydraulic oil tank | L | 130 | |
Water tank | L | 860 | |
Driving performance | Driving performance Maximum operating speed | m/min | 45 |
Maximum speed | km/h | 8 | |
Theoretical climbing ability | % | 75 | |
Ground clearance | mm | 180 | |
Tire | Tire Tire Form Solid Rubber Tire |
| Solid Rubber Tire |
Front tire size | mm | 645×300 | |
Rear tire size | mm | 645×300 | |
Milling material conveying | Milling material conveyor Belt width | mm | 500 |
Theoretical feeding capacity | m3/h | 127 | |
Transport size | Shipping Size Host Size (L×W×H) | mm | 4837×2846×3745 |
Host size (right leg swings into the frame) (L×W×H) | mm | 4837×2357×3745 | |
Folding conveyor size | mm | 7300×1085×980 | |
Machine weight | Machine Quality Work | kg | 17500 |
Front axle load (under working quality) | kg | 6000 | |
Rear axle load (under working quality) | kg | 11500 | |
