XCMG Official XR460D Rotary Drilling Rig for sale
  • Summary
  • Details
Summary
  • Certification:CE/ISO9001
  • Dimension(L*W*H):10750X5500X31060mm
  • Weight:158000kg
  • Power(W):447kW
  • Voltage:220V/380V
  • Usage:Water Well
  • Model Number:XR460D
  • Brand Name:XCMG
  • Place of Origin:China
  • Power Type:Electric
  • Type:Rotary Drilling Rig
Details
  • Product Name:357636-XR460D
  • Display online time:2019-12-27
  • weight:158000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Max. Drilling Diameter:3000mm
  • Max. Drilling Depth:120m
  • Allowable luffing scope:4700-5000mm
  • Max. working pressure of hydraulic system:35Mp
  • Max. torque:460kN •m
  • Rotational speed:5.5-20r/min
  • Rotary table slewing angle:360°
  • Max. climbable gradient:0.35
  • Width of crawler plate:1000mm
  • Engine model:CUMMINS QSX15-C600


XCMG Official XR460D Rotary Drilling Rig for sale

XCMG Official XR460D Rotary Drilling Rig for sale

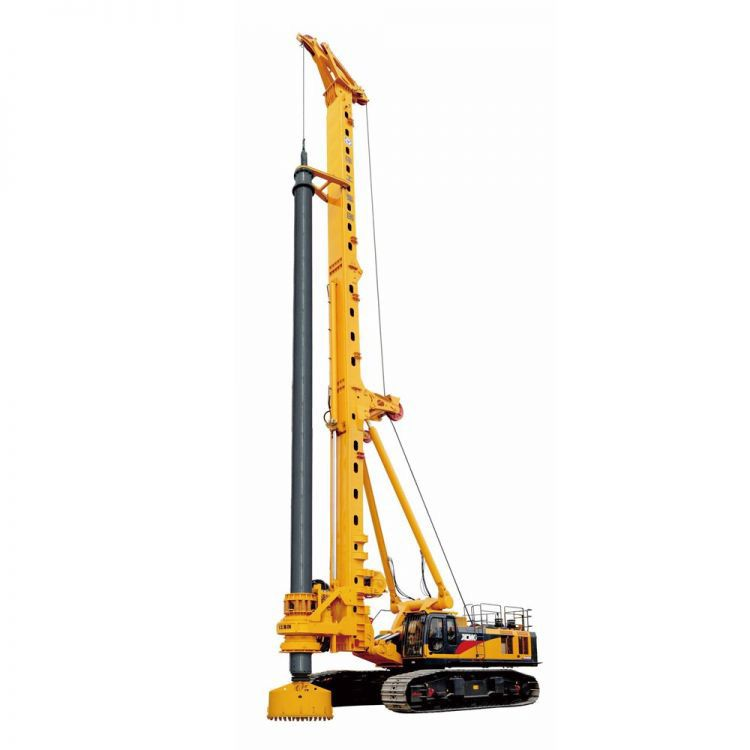

XR460D Rotary Drilling Rig

1Super stability and convenience of transportation, for use the special hydraulic and telescopic crawling chassis of rotary drilling rig.
2The Cummins engine provides strong power, and The noise and emission meet Europe Ⅲ standard.
3The design of big trigonal luffing mechanism bring a significant improvement in stability.
4The quality of work is enhanced by increase the mast section to reduce mechanical wobble of the mast.
5Ensure verticality of the hole by add a bracket for drill pipe.
6High-performance and more energy-efficient, due to the technology of load-sensing hydraulic system.
7It can be equipped with a variety of drilling tools to realize drought and wet working.
8The single winding roll of main winch enhance the life of rope and the precision of depth detection.
9It can choose winch pull-dowm.The travel is 16 m, The Max. force of winch pull-down is 500kN
10Highly effective drilling torques, due to the robust drilling head, which choose the import motor and reducer manufactured by internationally renowned company.
11The worker can observe the rope in cab day and night by infrared camera.
12Standard centralized lubricating system, allowing easier maintenance.
XCMG Official XR460D Rotary Drilling Rig for sale

XCMG Official XR460D Rotary Drilling Rig for sale

XCMG Official XR460D Rotary Drilling Rig for sale

Description

Unit

Parameter value

Max. drilling diameter

mm

3000

Max. drilling depth

m

120

Allowable luffing scope (from center of drill rod to slewing center)

mm

47005000

Drilling rig dimension in working condition (L × W × H)

mm

10750×5500×31060

Drilling rig dimension in transport condition (L × W × H)

mm

10750×5500×31060

Weight of overall unit (standard configuration, excluding drilling tool)

t

158

Engine

Model

CUMMINS  QSX15-C600

Rated power/speed

kW

447/2100r/min

Max. working pressure of hydraulic system

Mpa

35

Rotary drive

Max. torque

kN m

460

Rotational speed

r/min

5.520

Crowd  cylinder

Max. Pushing force

kN

300

Max. Pulling force

kN

400

Max.stroke

mm

6000

Crowd  winch

Max. Pushing force

kN

500

Max. Pulling force

kN

500

Max.stroke

mm

16000

Main winch

Max.pulling force

kN

520

Max. single-rope speed

m/min

60

Diameter of the steel wire rope

mm

42

Drilling mast

Left/right inclination of mast

°

3/3

5/5

Front/back inclination of mast

°

5/15

Rotary table slewing angle

°

360

Crawler

Width of crawler plate

mm

1000

External width of crawler (min.-max.)

mm

40505500

Center distance between two longitudinal wheels of crawler

mm

6050

Average ground pressure

kPa

121.3
