- Summary
- Specifications
- Rated Load:1100kg
- Dimension(Long*Breadth*High):3690*2000*1960mm
- Type:Skid Steer Loader
- Place of Origin:Xuzhou, Jiangsu, Chinax
- Model Number:XT760
- Brand Name:XCMG
- Certification:CE/ISO90001
- weight:3670.000kg
- Condition:New
- Moving Type:Other
- Machine Weight:3670kg
- Power:60KW
- Engine Brand:Deutz
- Bucket capacity:0.6m3
- Rated power/speed:60/2300Kw/rpm
- Max. travel speed:12km/h
- Ground clearance:182mm

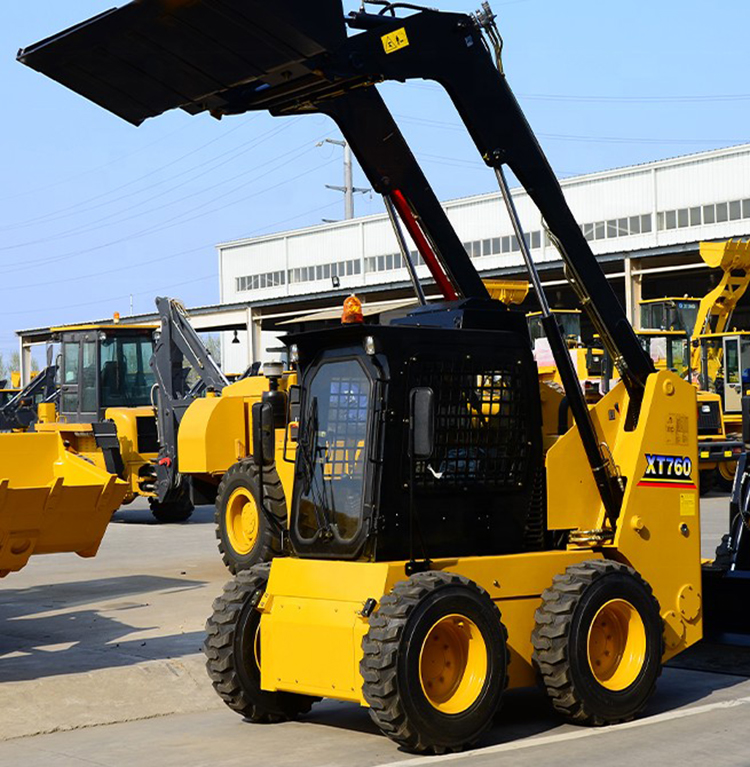

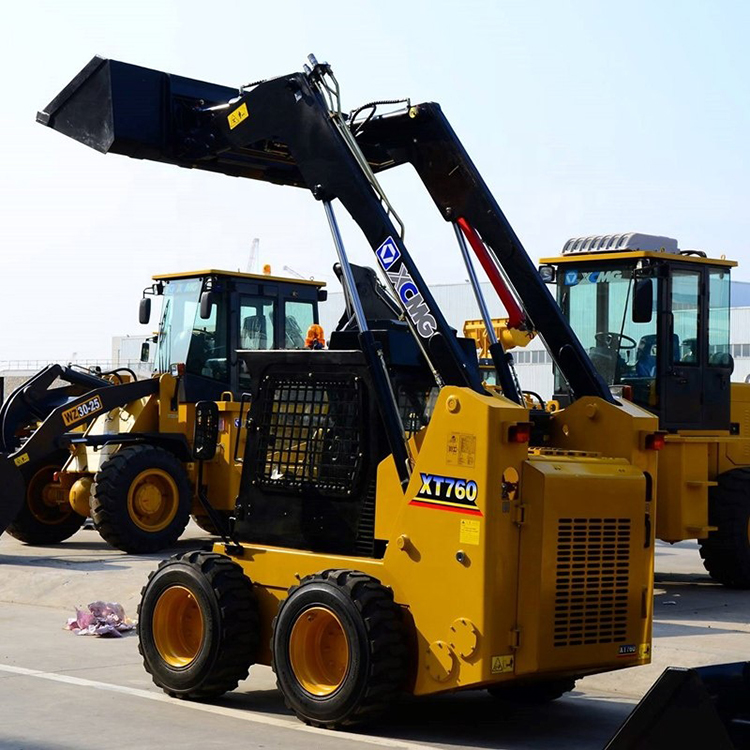

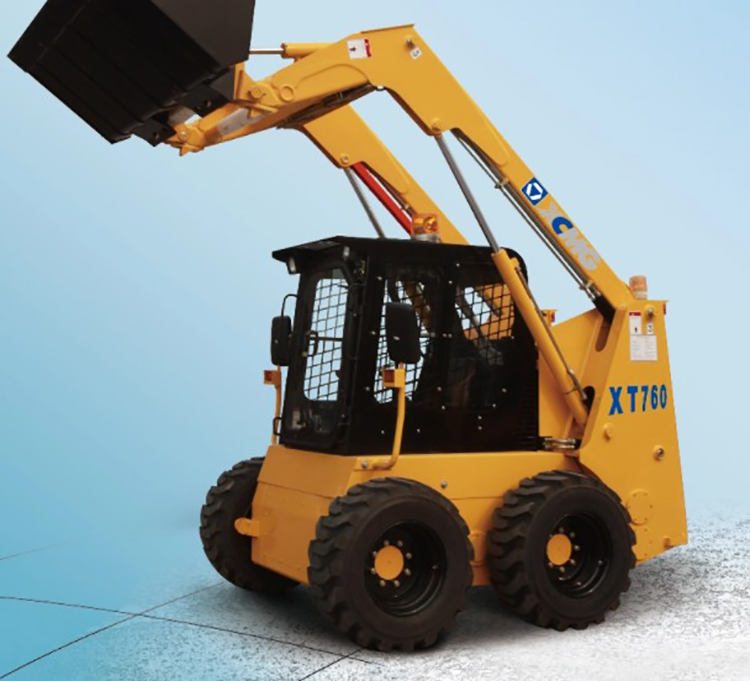

XCMG high quality skid steer loader XT760 China 1 ton
mini wheel skid steer loader.
With strong power and rich attachments, the XCMG skid
steer loader XT760 can better adapt to the operations in narrow space and is an
ideal tool for road construction, municipal maintenance, port handling, garden
maintenance, and pasture production, featuring low operation cost and
remarkable economic benefits.
Advantages and Highlights:
1. Prolong the machine using life.
2. Makes the machine environmental.
3. Optimum hydraulic system design grantee efficient
work.
4. The integral FOPS & ROPS and human-engineering
designed cabin make work comfortable.
5. Quick coupler can make changing attachments in few
minutes.
|
Description |
Specifications |
Unit |
|
Engine Model |
Deutz Weichai |
|
|
Rated power/speed |
60/2300 |
Kw/rpm |
|
Bucket capacity |
0.6 |
m3 |
|
Rated load |
1100 |
kg |
|
Operating weight |
3670 |
kg |
|
Dumping clearance |
2405 |
mm |
|
Dumping reach |
680 |
mm |
|
Max. travel speed |
12 |
Km/h |
|
Front turning radius without bucket |
1330 |
mm |
|
Front turning radius with bucket |
2290 |
mm |
|
Ground clearance |
182 |
mm |
|
Diesel fuel tank capacity |
80 |
L |
|
Tire model |
12.0-16.5 |
|
|
Overall dimensions (LXWXH) |
3690X2000X1960 |
mm |
