XCMG Official XTC80/60M Diaphragm Wall Grab Trench Cutter for sale
FOB for Piling Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XTC80/60M
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official XTC80/60M Diaphragm Wall Grab Trench Cutter for sale
XCMG Official XTC80/60M Diaphragm Wall Grab Trench Cutter for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Model Number:XTC80/60M
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Max. lifting power:567 kW
Details
  • Product Name:G5BEE86C739737
  • Display online time:2021-02-10
  • weight:115000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:3 Months
  • Condition:NEW
  • Moving Type:other
  • Trench Depth:60 m
  • Trench Width:800-1500 mm
  • Trench Length:2800 mm
  • Trench Cutter Max. Torque:2×80 kN·m
  • Trench Cutter Max. Speed of Rotation:0-25 r/min
  • Mud Pipe Diameter:Φ152 mm
  • Mud Pump Flow RateDischarge Capacity:450 m3/h
  • Max. Hoisting Force:630 kN
  • Winch Max. Speed:60 m/min
  • Winch Rope Diameter:Φ32 mm
  • Type of Base Machine:Special Machine
  • Engine Rated Power:567 kW
  • Engine Rotation Speed:2100 r/min
  • Machine Size Walking Working State:13.64×6.58×5.97 m
  • Machine Weight:115 t
  • Undercarriage Max. Travel Speed:1.3km/h
  • Undercarriage Max. Grade Ability:
  • Undercarriage Track Grouser Shoe Width:800 mm
  • Undercarriage Track Shoe Width:3500-4900 mm
  • Undercarriage Track Contact Length:5600 mm

XCMG Official XTC80/60M Diaphragm Wall Grab Trench Cutter for sale


XCMG Official XTC80/60M Diaphragm Wall Grab Trench Cutter for sale

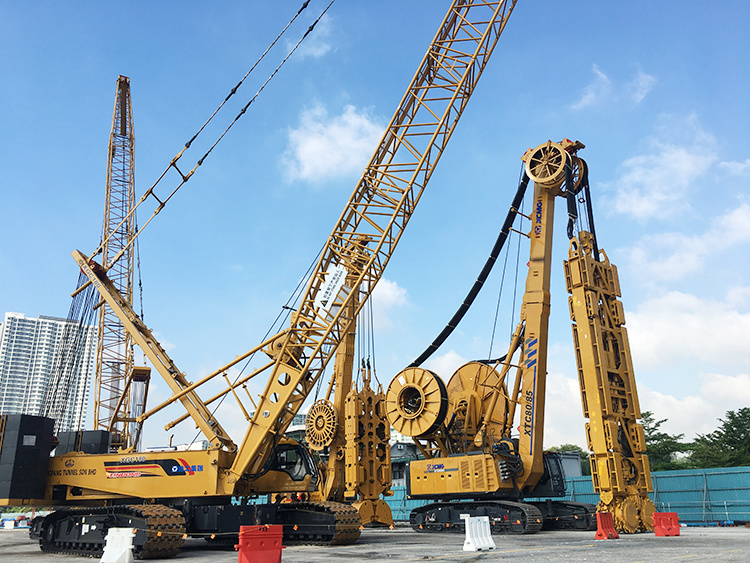

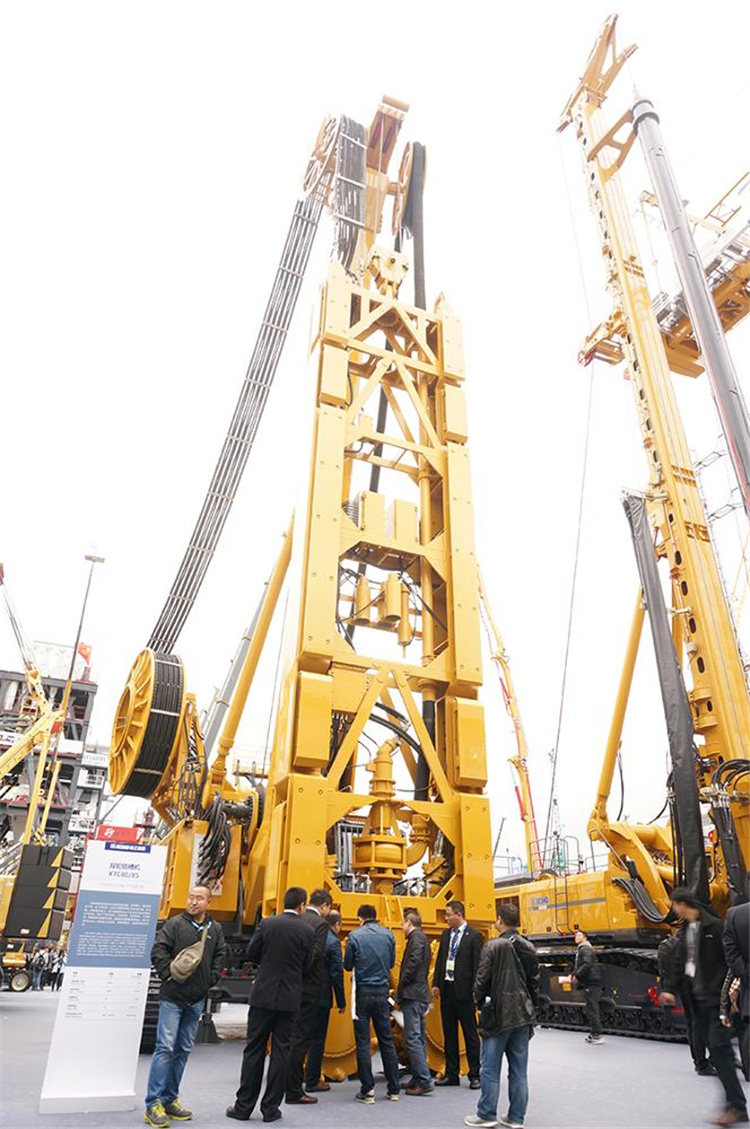

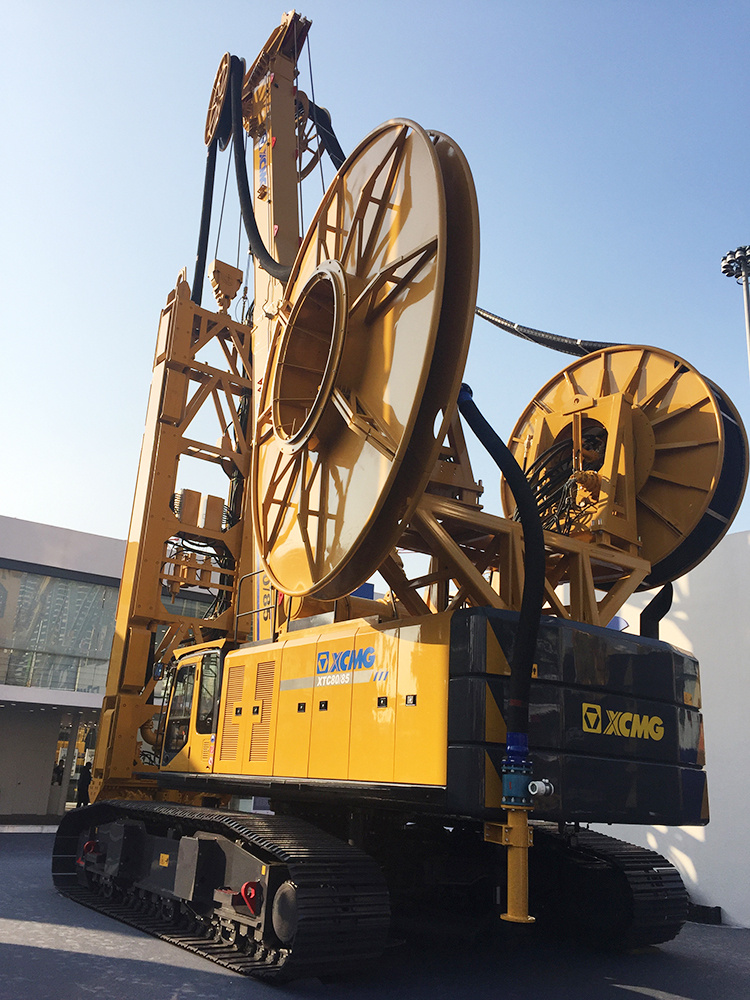

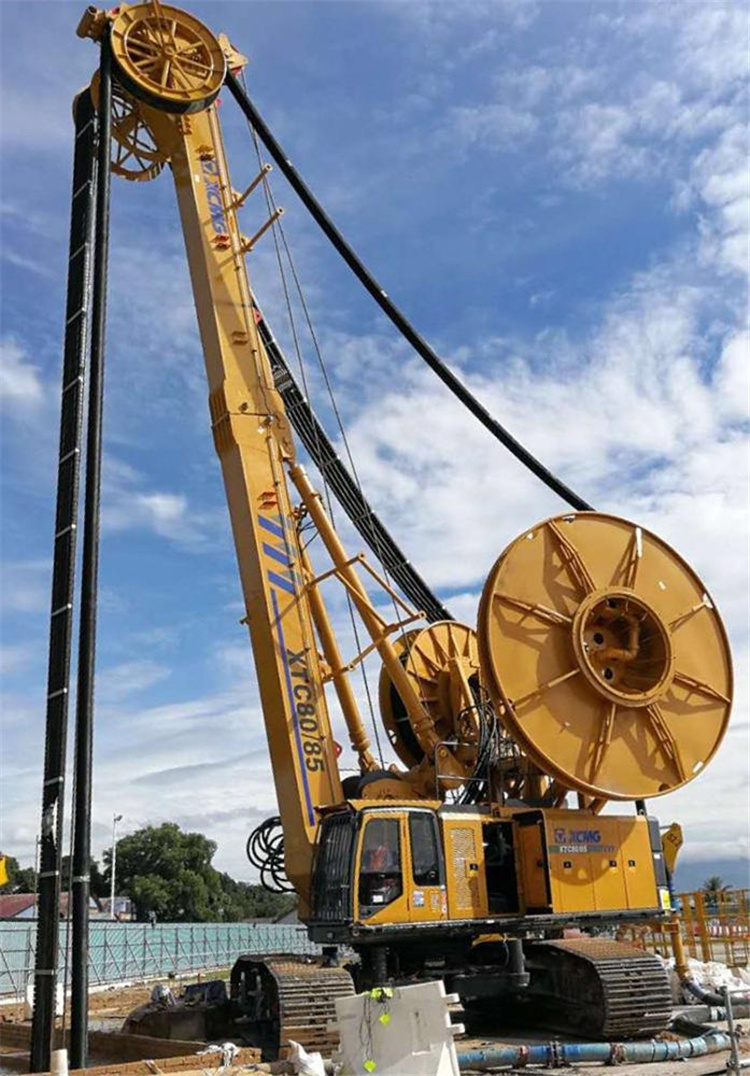

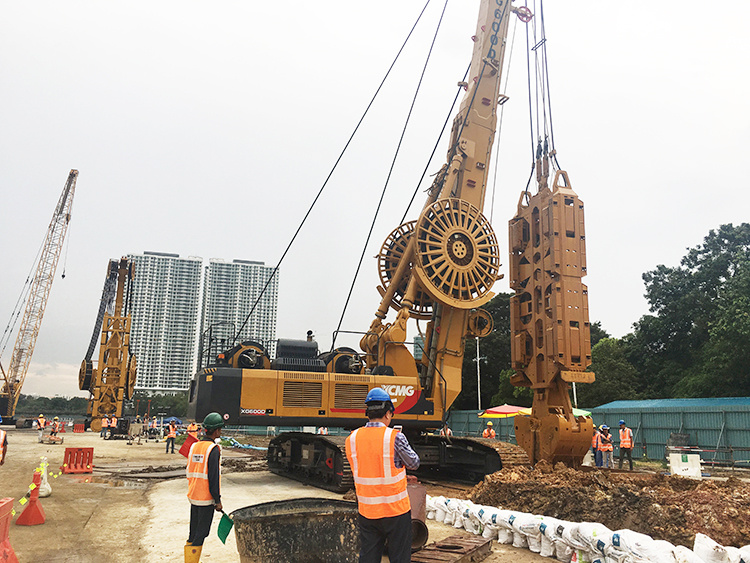

XTC80/60M Trench Cutter is designed for low construction space. It can be used in underground deep foundation engineering seepage wall, retaining wall, load-bearing wall construction for such as subway station, foundation pits buildings, high-rise building basement, underground commercial, reservoir dam, port, mine, environmental engineering, etc.



1,With merely 6 meters height, it can meet the low-altitude construction requirements under the bridge or inside the building.

2,Modular design allows the machine to switch its operation mode between low-altitude and normal-altitude;

3,Proprietary mechanical seal structure guarantees it’s sealing property when working in deep water with low failure rate.

4,For the first time, tThe fixed three-row mud winch structure is adopted initiativelyinnovatively, which is convenient for disassembly and transportation

5,The design of Cclosed shed design and overhead air cooling, it is makes it suitable for construction in the city with low noise.

6,With low barycentercenter of gravity、, modular design of cutter support, it has highly groove accuracy.


XCMG Official XTC80/60M Diaphragm Wall Grab Trench Cutter for sale

主要技术参数 参数值
Main Technical Parameters Parameters
铣槽参数
Trench
施工深度 Depth 60 m
成槽厚度 Width 800-1500 mm
单孔成槽长度 Length 2800 mm
铣轮参数
Trench Cutter
最大扭矩 Max. Torque 2×80 kN·m
最大转速  0-25 r/min
Max. Speed of Rotation
泥浆泵
Mud Pump
泥浆管管径 Mud Pipe Diameter 6寸/Φ152 mm
排渣能力 Mud Pump Flow RateDischarge Capacity 450 m3/h
卷扬机拉力 Max. Hoisting Force 630 kN
卷扬
Winch
最大速度 Max. Speed 60 m/min
钢丝绳直径 Rope Diameter Φ32 mm
主机类型 Type of Base Machine 专用主机 Special Machine
发动机
Engine
功率 Rated Power 567 kW
转速 Rotation Speed 2100 r/min
底盘
Undercarriage
最大行走速度 1.3km/h
Max. Travel Speed
最大爬坡度
Max. Grade Ability
履带板宽度 800 mm
Track Grouser Shoe Width
履带最大宽度 3500-4900 mm
Track Shoe Width
履带长度 5600 mm
Track Contact Length
整机尺寸
Machine Size
工作状态Walking Working State 13.64×6.58×5.97 m
整机重量* Machine Weight 115 t
