Summary
- Certification:ISO9001
- Dimension(L*W*H):11500×2900×3000mm
- Weight:23000kg
- Power(W):264kw
- Model Number:XZ1000A
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Horizontal Directional Drill
Details
- Product Name:357636-XZ1000A
- Display online time:2019-12-27
- weight:23000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:crawler
- Max.thrust-pull force:1075kN
- Max. thrust-pull speed:35m/min
- Max. spindle speed:100r/min
- Max. inclination angle:18
- Max. torque:43000N •m
- engine model(China II ):6BTAA8.9-C360
- rated power(China II ):264 /2200 kW/r/min
- engine model(China III EU Stage IIIA ):QSL8.9-C360
- rated power(China III EU Stage IIIA ):264 /2100 kW/r/min

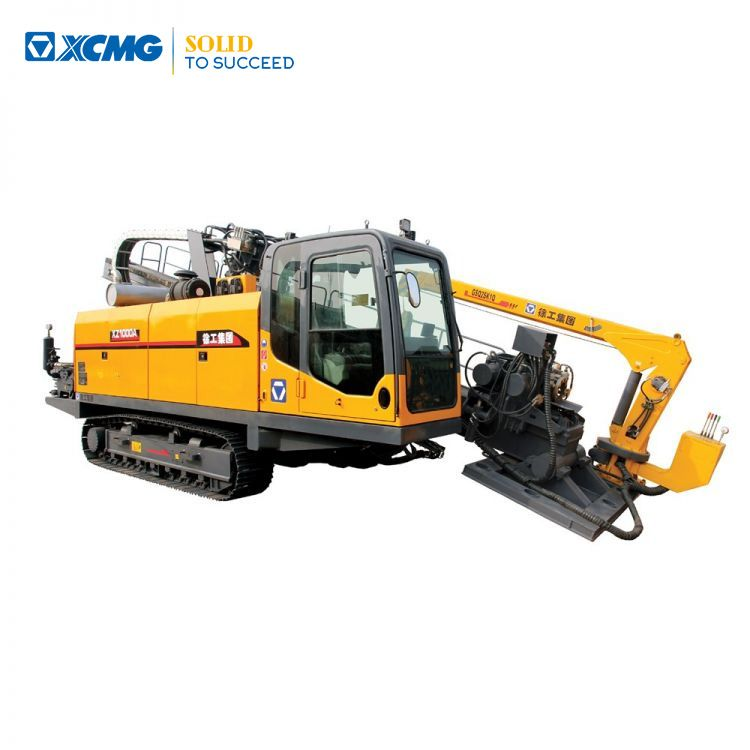

XZ1000A Horizontal Directional Drill
1、The gear and rack transmission makes stability and reliability, Carriagespindle floating toto protect the drill pipe thread and improve the service life of the rods.
2、Elastic equilibrium release technology is to avoid device damaging when pulling pipeline back, which increase the reliability.
3、Wire guided walking system makes moving safe.
4、Mud flux stepless speed regulation saves mud and reduce pollution.
5、Cab’s 45 ° rotation enhances comfortable operation.



Description |
Unit |
Parameter value |
||
Engine |
Manufacturers |
Cummins |
||
China III |
Model |
QSL8.9-C360 |
||
Rated Power |
kW /(r/min) |
264 / 2100 |
||
China II |
Model |
6BTAA8.9-C360 |
||
Rated Power |
kW /(r/min) |
264/ 2200 |
||
Thrust-Pull |
Max thrust-pull force |
kN |
1075 |
|
Max thrust-pull speed |
m/min |
35 |
||
Rotation |
Torque |
N·m |
43000 |
|
Max spindle speed |
r/min |
100 |
||
Loader Crance |
Max. Lifting weight |
t |
2 |
|
Loading capacity |
t·m |
4 |
||
Max inclination angle |
° |
18 |
||
Travel
driving |
Type |
Self-propelled crawler |
||
Traveling speed |
Km/h |
2.5 |
||
Pipe |
Diameter × Length |
mm×mm |
Φ127×6000 |
|
Mud pump |
Max Flow rate |
L/min |
600 |
|
Weight |
kg |
23000 |
