XCMG Official XZ120E Hdd Machine Horizontal Directional Drilling Rig for Sale, MACHMALL

Engineering & Construction Machinery > Trenchless Machinery > Horizontal Directional Drill

XCMG Official XZ120E Hdd Machine Horizontal Directional Drilling Rig for Sale

FOB Price: $30000.00-$40000.00

View All >

Model： XZ120E

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official XZ120E Hdd Machine Horizontal Directional Drilling Rig for Sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XZ120E

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Voltage

Usage

Model Number

Brand Name

Place of Origin

Power Type

Type

Engineering & Construction Machinery

XZ120E

CE/ISO9001

4500*1680*2170mm

4.5t

74/2200kW/r/min

XZ120E

XCMG

Jiangsu, China

+ Add a Product

Summary

Certification:CE/ISO9001
Dimension(L*W*H):4500*1680*2170mm
Weight:4.5t
Power(W):74/2200kW/r/min
Model Number:XZ120E
Brand Name:XCMG
Place of Origin:Jiangsu, China

Specifications

Weight:4500.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

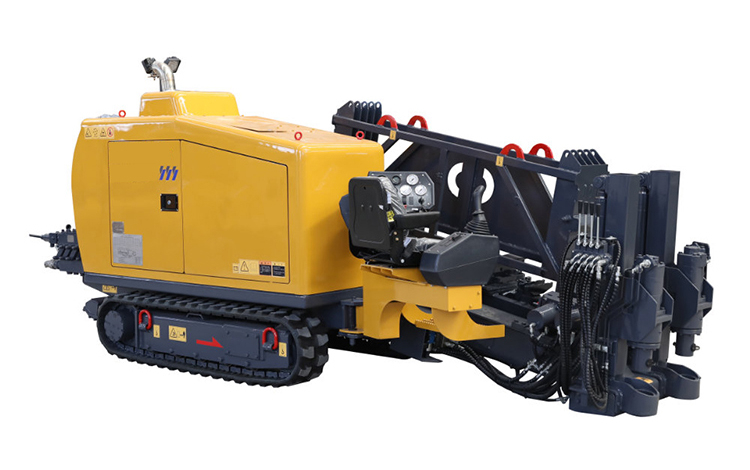

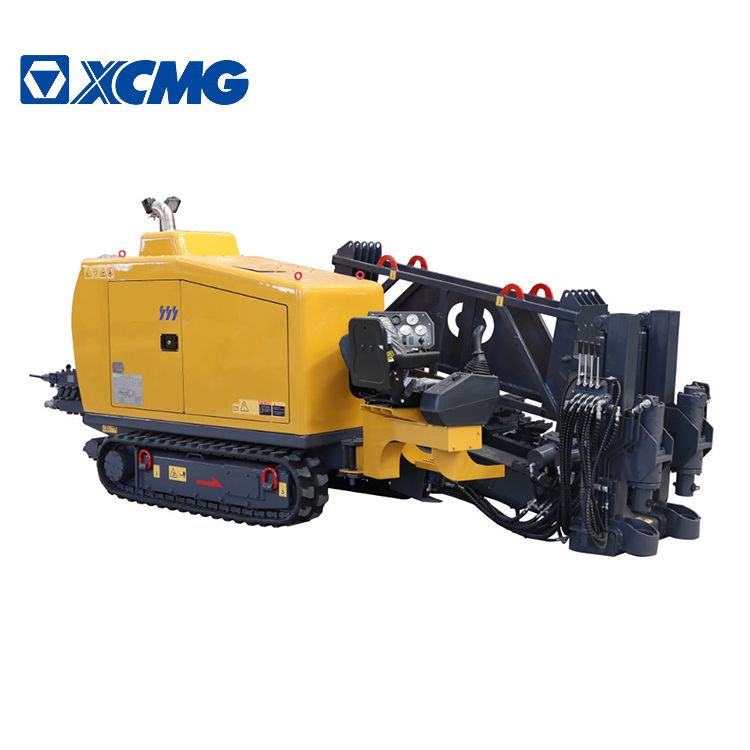

XCMG Official XZ120E Hdd Machine Horizontal Directional Drilling Rig for Sale

XCMG Official XZ120E Hdd Machine Horizontal Directional Drilling Rig.

XZ Series Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe.

The XZ Series Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.

Performance and characteristic:

1. Hydraulic pilot control, with comfortable operability and flexible adjustment ability, the first-class brand hydraulic components ensure the reliability of the whole hydraulic system;

2. High and low speed push-pull rotation system, plunger variable motor to push and pull high and low speed of power head, increase the adaptability of drilling rig working conditions, and improve the construction efficiency of drilling rig;

3. The machine can be equipped with automatic loading and unloading drill pipe device, automatic anchoring system, mud anti freezing device and mud cleaning device.

XCMG Official XZ120E Hdd Machine Horizontal Directional Drilling Rig for Sale

Project	unit	XZ120E
Engine
Model	-	Cummings 4BT3.9-C100
Rated power	kW/r/min	74/2200
Push and pull
Maximum pushing force	kN	130
Maximum push pull speed	m/min	37
Rotate
Torque	N·m	3000
Maximum speed	r/min	220
Mud pump
Maximum flow	L/min	100
Maximum pressure	MPa	4
Drill pipe	mm×m	φ52×1.8
Truck mounted crane
Lifting weight	t	——
Lifting torque	t•m	——
Maximum angle of penetration	°	18
Maximum diameter of back expansion	mm	φ400
Quality	t	4.5
Dimensions	mm	4500×1680×2170
Remarks	-	Overseas supply
