- Brand Name:XCMG
- Place of Origin:China
- Product Name:G5BEE95270FBBC
- Display online time:2019-12-27
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:3 Months
- Moving Type:other
- Power house Engine Manufacturers:Cummins
- Power house Engine Rated power:4×410/1900kW
- Mainframe Engine Manufacturers:Cummins
- Mainframe Engine Rated power:154/2200kW/r/min
- Thrust-Pull Max thrust-pull force:13600kN
- Thrust-Pull Max spindle speed:32m/min
- Rotation Torque:260000N·m
- Rotation Max spindle speed:100r/min
- PipeDiameter × Length:Φ219/Φ254×9600mm
- Max inclination angle:8～16°
- Loader Crane Lifting weight/ Loading capacity:10/25t/t·m
- Travel driving Type:Steel crawel self-propelled
- Travel driving Traveling speed:1km/h
- Mainmachine dimension:20000×3400×4700mm
- Mainmachine Weight:135t
- Power house dimension:9117×2438×2591mm
- Power house Weight:26t
- Handling room dimension:2991/5982×2438×2591mm
- Handling room Weight:3t

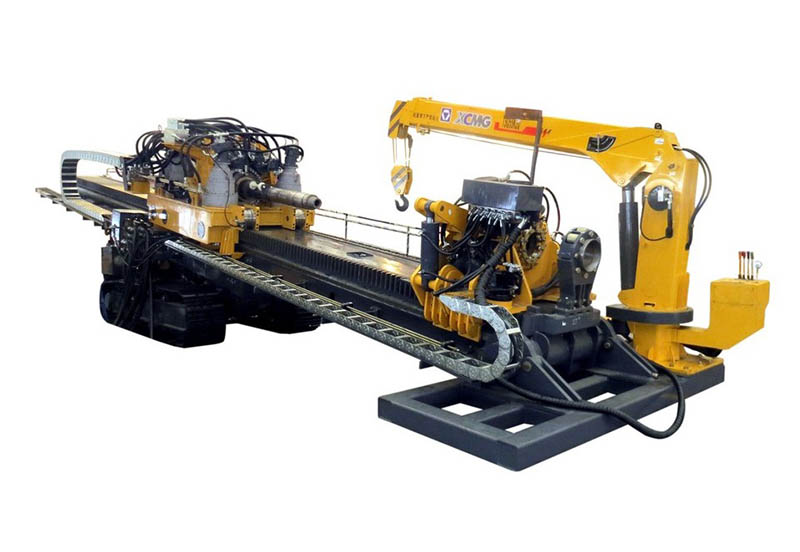

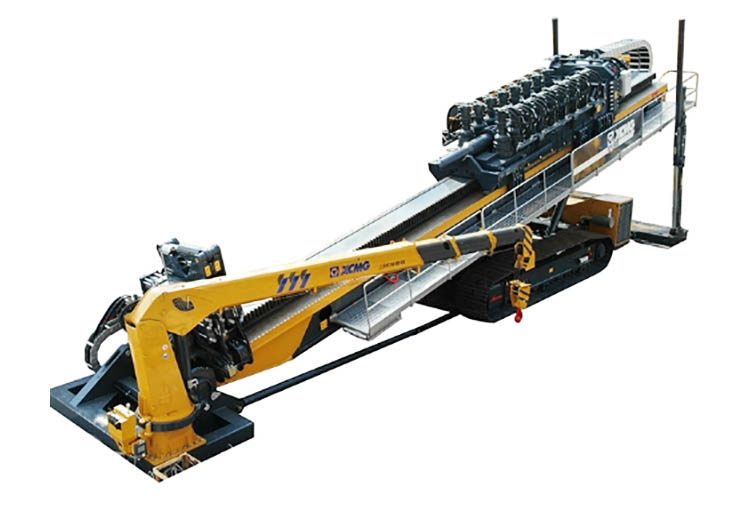

With the world's largest tonnage, XZ13600 horizontal directional drill is mainly used in the construction of underground pipelines with super-large caliber and ultra-long distance in complicated formations. The mainframe adopts the world's first modular combination technology, the world's leading intelligent control and power combination technology, and industry-leading complex condition adaptation technology to ensure the reliability, energy saving ability and safety of oversized drills. The construction capacity, intelligence level and performance indicators of the machine have reached the international leading level.
1,Numerical meter display the working torque, push or pull force and so on parametric in working conditions，the interface is concise and informative，Overcoming the disadvantages of traditional HDD using pressure gauge , simple operation.
2,The dynamic combination technology about multi-engine and multi-pump，enabling high efficiency of power output at different stages of construction，Improving system matching rationality，Multi gear stepless speed regulation technology，Strong adaptability of working condition;
3,Equipped with closed energy-saving circuit, load sensing control, electro-hydraulic proportional control and other advanced technology, Using the international?famous brand components,?reliable quality.
4,Single side with double cylinder synchronous flexible clamping technology, Reliable clamping of drill pipe and high torque of shackle; The vise is floating in the whole course, which is convenient for the construction process of casing pipe.
5,Adopting the electro-hydraulic proportional, fine tuning, fine feed and other advanced energy saving control technologies. The main part of hydraulic and electric and transmission are made of world first-class brand products, good performance, good reliability.
6,Modular combination and disassembly and transportation technology, chassis, drill frame, carriage can be disassembled. Power station, operating room meet container transport specifications, transport convenient, low cost.
Power house Engine
Max thrust-pull force
Max spindle speed
Max spindle speed
Diameter × Length
|入土角 Max inclination angle||°||8～16|
Lifting weight/Loading capacity
|Steel crawel self-propelled|
|动力站尺寸Power house dimension||mm||9117×2438×2591|
|动力站重量Power house Weight||t||26|
|操作房尺寸Handling room dimension||mm||2991/5982×2438×2591|
|操作房重量Handling room Weight||t||3|
