XCMG HDD Machine XZ200 Hydraulic Horizontal Directional Drilling Rig Best Selling Piling Machine
FOB for Piling Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XZ200
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG HDD Machine XZ200 Hydraulic Horizontal Directional Drilling Rig Best Selling Piling Machine
XCMG HDD Machine XZ200 Hydraulic Horizontal Directional Drilling Rig Best Selling Piling Machine
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
  • Product Brochure
Summary
Details
  • Product Name:G603771297F3A8
  • Display online time:2021-06-07
  • weight:8500.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Certification:ISO9001
  • Dimension(L*W*H):5900×2250×2400mm
  • Power(W):113KW
  • Weight:8500kg
  • Model Number:XZ200
  • Brand Name:XCMG
  • Place of Origin:China
  • Power Type:Diesel
  • Type:Horizontal Directional Drill

XCMG HDD Machine XZ200 Hydraulic Horizontal Directional Drilling Rig Best Selling Piling Machine

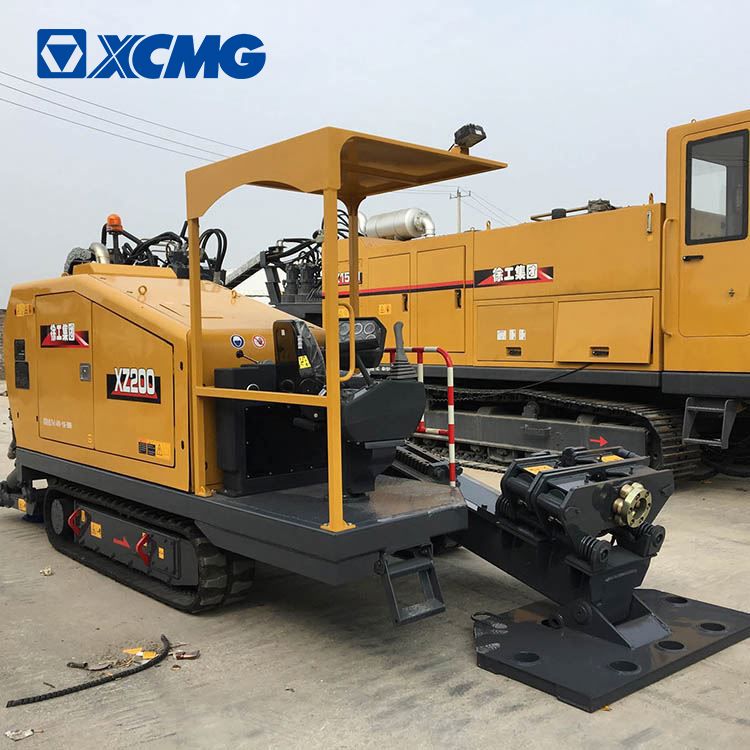

XCMG HDD Machine XZ200 Hydraulic Horizontal Directional Drilling Rig.



XZ200 horizontal directional drilling rig, which has compact structure and attractive appearance, adopts various advanced technologies and the proprietary technologies of the company, and its main performance parameters and control technologies have reached the world advanced level. The main components of hydraulic system, electrical system and transmission system are of top-grade domestic and international brand, and high reliability.



Technical Characteristics:

1.Strong Power

112kW horsepower engine is adopted to ensure that the drilling rig can complete pipe laying operations under all kinds of complicated geological conditions.



2. Two-Speed Unit Head

The unit head operates at a low speed during drilling and pullback to ensure smooth construction; and it can slide at an accelerating speed to reduce auxiliary time and improve work efficiency when the removable drill rod reciprocates with no-load.



3. Rubber Crawler

It has a minimal impact on roads, lawns and scenic spots.



4. Floating-Type Vise

It applies the proprietary floating-type vise of the company, which can effectively extend the service life of the drill rod.



5. Rotatable Control Desk

It widens the visual field and reduces the fatigue of the operator to make the drilling rig operation more simple and comfortable.



6. Automatic Handling Device of Drill Rod

This can improve efficiency, and reduce the operators' labor intensity and the number of construction personnel.



7. Automatic Anchoring

Hydraulic drive mode is applied, and the drilling and pullback of anchor is controlled by the oil cylinder and low-speed high torque motor; the operation is easy and convenient.

XCMG HDD Machine XZ200 Hydraulic Horizontal Directional Drilling Rig Best Selling Piling Machine

Description

unit

XZ200

Dimension LxWxH

mm

6200x2250x2400

Overall weight

t

8.5

Engine model



6BTAA5.9-C150

Engine power

KW

112

Thrust-pull mode



Rack and pinion

Max.pullback/thrusting

KN

200/200

Max.spindle torque

N.m

6350

Spindle speed

r/min

0-155

Spindle traveling speed

m/min

0-26

Max.backreaming diameter

mm

600

Pipe length(single)

m

3

Pipe diameter

mm

60

Entry angle

0

10-22

Max.mud flow rate

L/min

200/250

Max.mud pressure

bar

80
