Summary

  • Certification:ISO9001
  • Dimension(L*W*H):6200×2280×2450mm
  • Weight:21000kg
  • Power(W):154kw
  • Model Number:XZ360E
  • Brand Name:XCMG
  • Place of Origin:China
  • Power Type:Diesel
  • Type:Horizontal Directional Drill

Specifications

  • Weight:10500.000kg
  • Condition:New
  • Moving Type:Crawler
  • Max.thrust-pull force:370kN
  • Max. thrust-pull speed:32m/min
  • Max. spindle speed:140r/min
  • Max. inclination angle:20
  • Max. torque:13200N •m
  • engine model(China III ):QSB5.9-C210
  • rated power(China III ):154 kW / 2200 r/min
  • engine model(China II ):6BTAA5.9-C205
  • rated power(China II ):153 kW / 2200 r/min
  • engine model(China III EU Stage IIIA ):QSB6.7-C220
  • rated power(China III EU Stage IIIA ):164 kW/2200r/min


XCMG Official XZ360E Horizontal Directional Drill (HDD)

XCMG Official XZ360E Horizontal Directional Drill (HDD)

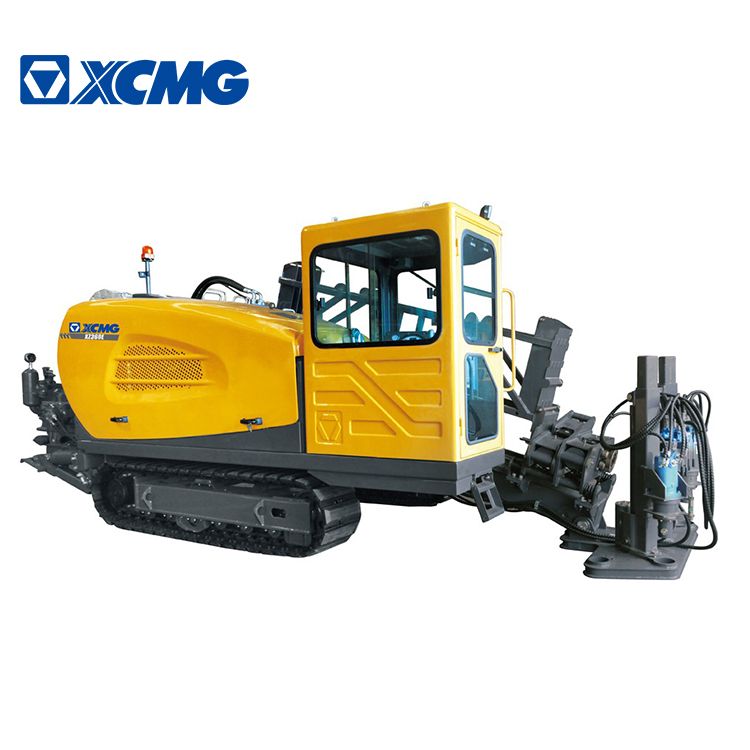

XZ360E Horizontal Directional Drill

1、Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2、Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3、High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4、Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes(φ73), ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
5、Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices.
XCMG Official XZ360E Horizontal Directional Drill (HDD)XCMG Official XZ360E Horizontal Directional Drill (HDD)

XCMG Official XZ360E Horizontal Directional Drill (HDD)

Description

Unit

Parameter value

Engine

Manufacturers

Dongfeng Cummins

China III

Model

QSB5.9-C210

Rated Power

kW /r/min

154 / 2200

China II

Model

6BTAA5.9-C205

Rated Power

kW /r/min

153/ 2200

China III

EU Stage IIIA

Model

QSB6.7-C220

Rated Power

kW /r/min

164/2200

Thrust-Pull

Type

Pinion and rack drive

Max thrust-pull force

kN

370/370

Max thrust-pull speed

m/min

32

Rotation

Type

four motor

Torque

N·m

13200

Max spindle speed

r/min

140

Loader Crance

/

/

Max inclination angle

°

20

Pipe

Diameter × Length

mm×mm

Φ73/83×3000

Mud pump

Max Flow rate

L/min

400

Max pressure

MPa

8

Weight

kg

10500
