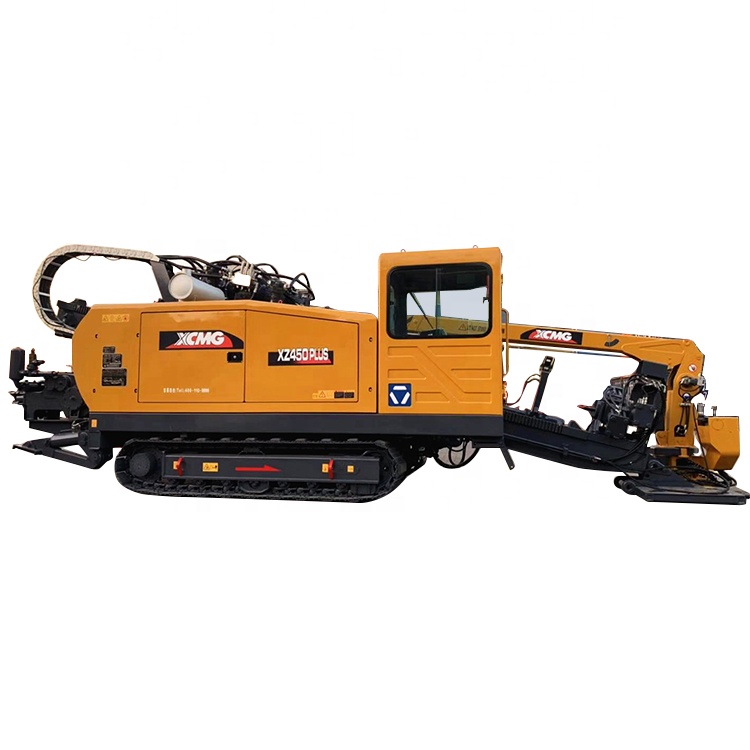

XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig

  • XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
  • XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
  • XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
  • XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
  • XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
  • XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig

Share:
XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
FOB for Piling Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XZ450 Plus
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Certification:CE/ISO9001
  • Dimension(L*W*H):8800×2280×2610mm
  • Weight:13.3t
  • Power(W):194kw
  • Usage:Construction
  • Model Number:XZ450Plus
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Power Type: Diesel
Details
  • Product Name:G5FBDC644AF403
  • Display online time:2020-11-25
  • weight:13300.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other

XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig

XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig.



XZ Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation.



Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.



Performance Characteristic



1) Numerical meter display the working torque ,push or pull force and so on parametric in working conditions. Electronic sensor has rapid reaction and can show overload immediately.



2) It also endures accuracy and delay of the traditional hydraulic meter's indication. It solve the matter to depend the operator to calculate the torque and force by the equipment's switch directive.



3) Drill frame side by the cylinder. Combine with link weldment. It is easy safe and simple to adjust the entry angle of the equipment.



4) Dual-engines are used. The HDD has all the motion on the condition of any engine starting.Multi-condition technology of adjusting the travel speed combining with the multi-speed control of rotation and push or pull make HDD be suitable to the complex geology. You can use one engine in the condition of small pipe diameter in order to reduce the project cost.



4)Hydraulic pilot control,load sensing control help to save energy and operate flexibly. The main part of hydraulic and electric and transmission are made of word frist-class brand products, good performance,good reliability.

XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig

XZ450PLUS HORIZONTAL DIRECTIONAL DRILL

                                             ITEM

                  PARAMETER

Engine

Make

Cummins

Model

QSC8.3-C260

Rated Power

194 KW / 2200 R/Min

Operation

Type

Rack and pinion

Max. Thrust /Pullback Force

960/960 KN

Max carriage thrust/pullback travel speed

42M/Min

Max. Spindle Torque

23500 N·M

Max. Spindle Speed

135R/Min

Type

Self-Propelled Steel Track

Ground Travel Speed

3.0 Km/h

Drill Rod/ Drill pipe

Diameter ×Length

Φ89 mm×4500mm

Entry Angle

10~20°

Mud Pump

Max flow rate

600L/Min

Max pressure

10

Overall Weight

13.3T

Overall Dimension

8800×2280×2610mm

XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig

XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig

XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig


XCMG Official XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
