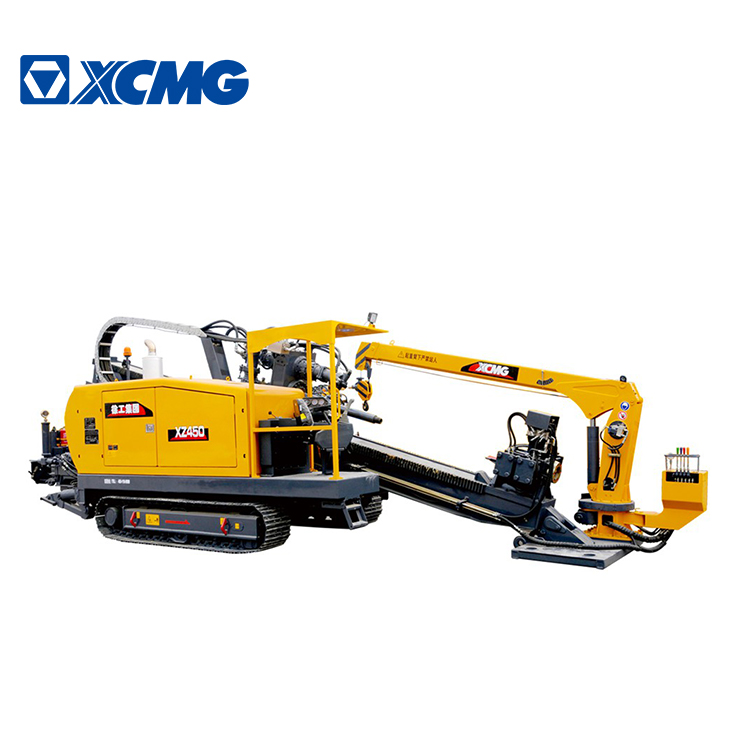

XCMG Official XZ450 Horizontal Directional Drill (HDD)

  • XCMG Official XZ450 Horizontal Directional Drill (HDD)

Share:
XCMG Official XZ450 Horizontal Directional Drill (HDD)
FOB for Piling Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official XZ450 Horizontal Directional Drill (HDD)
  • Summary
  • Details
Summary
  • Certification:ISO9001
  • Dimension(L*W*H):8965×2597×2640mm
  • Weight:11300kg
  • Power(W):194kw
  • Model Number:XZ450
  • Brand Name:XCMG
  • Place of Origin:China
  • Power Type:Diesel
  • Type:Horizontal Directional Drill
Details
  • Product Name:357636-XZ450
  • Display online time:2019-12-27
  • weight:13300.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Max.thrust-pull force:480kN
  • Max. thrust-pull speed:42m/min
  • Max. spindle speed:135r/min
  • Max. inclination angle:20
  • Max. torque:13200N •m
  • engine model(China III ):6CTA8.3-C260
  • rated power(China III ):194 kW/ 2200 r/min
  • engine model(China II ):QSC8.3-C260
  • rated power(China II ):194 kW/ 2200 r/min
  • engine model(China III EU Stage IIIA ):QSB6.7-C260
  • rated power(China III EU Stage IIIA ):194 kW/ 2200 r/min


XCMG Official XZ450 Horizontal Directional Drill (HDD)

XCMG Official XZ450 Horizontal Directional Drill (HDD)

XZ450 Horizontal Directional Drill

1、Closed circuits and hydraulic system with load sensing control.
2、Gear rack thrust/pull design insures operation. Floating carriage can protect the screw thread of the rods.
3、Main components of hydraulic system, electrical system and transmission system are of top-grade domestic and international brand, and high reliability.
4、Reinforcement carriage can be chosen and assembled to enhance pulling back force to meet special requirements.
5、Ergonomics theory is adopted in cab designing, more comfortable and convenient.
6、Drive-by-wire walking design is to ensure security.
7、Can meet the container freight transport(without full-automatic pipeloader).

XCMG Official XZ450 Horizontal Directional Drill (HDD)

XCMG Official XZ450 Horizontal Directional Drill (HDD)

XCMG Official XZ450 Horizontal Directional Drill (HDD)

Description

Unit

Parameter value

Engine

Manufacturers

Dongfeng Cummins

China III

Model

6CTA8.3-C260

Rated Power

kW /r/min

194 / 2200

China II

Model

QSC8.3-C260

Rated Power

kW /r/min

194/ 2200

China III

EU Stage IIIA

Model

QSB6.7-C260

Rated Power

kW /r/min

194/2200

Thrust-Pull

Type

Gear Rack

Max thrust-pull force

kN

480(XZ450)/960(XZ450Plus)

Max thrust-pull speed

m/min

42(XZ450)/28(XZ450Plus)

Rotation

Torque

N·m

23500

Max spindle speed

r/min

135

Loader Crance

Max. Lifting weight

t

2/3

Max inclination angle

°

20

Pipe

Diameter × Length

mm×mm

φ89×4500

Mud pump

Max Flow rate

L/min

450/600

Max pressure

MPa

8/10

Weight

kg

13300(XZ450)/13500(XZ450Plus)

XCMG Official XZ450 Horizontal Directional Drill (HDD)


XCMG Official XZ450 Horizontal Directional Drill (HDD)
