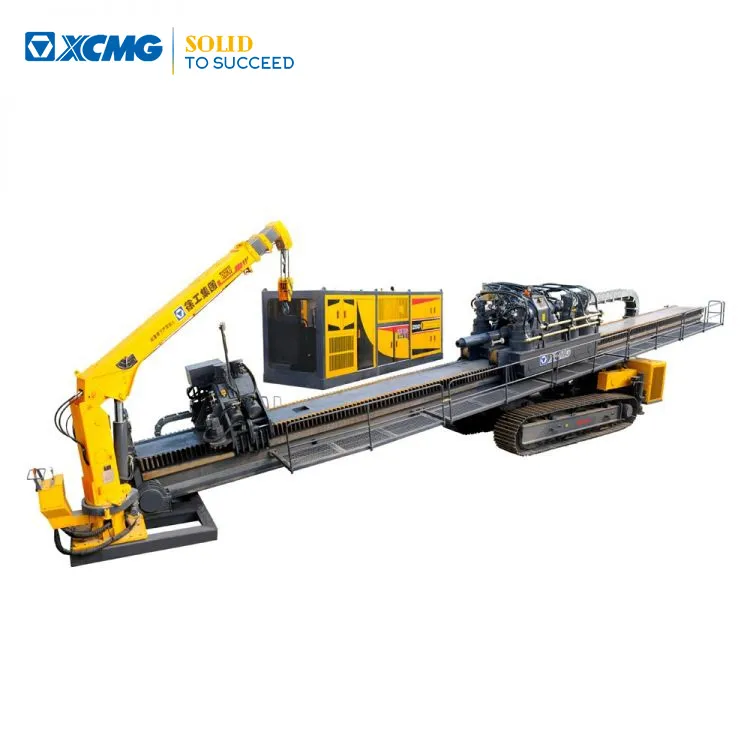

XCMG Official XZ5000 Horizontal Directional Drill (HDD)

  • XCMG Official XZ5000 Horizontal Directional Drill (HDD)

Share:
XCMG Official XZ5000 Horizontal Directional Drill (HDD)
FOB for Piling Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official XZ5000 Horizontal Directional Drill (HDD)
  • Summary
  • Details
Summary
  • Certification:ISO9001
  • Dimension(L*W*H):18240×3000×3600mm
  • Weight:55000kg
  • Power(W):394kw
  • Model Number:XZ5000
  • Brand Name:XCMG
  • Place of Origin:China
  • Power Type:Diesel
  • Type:Horizontal Directional Drill
Details
  • Product Name:357636-XZ5000
  • Display online time:2019-12-27
  • weight:55000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Max.thrust-pull force:5000kN
  • Max. thrust-pull speed:28m/min
  • Max. spindle speed:90r/min
  • Max. inclination angle:16
  • Max. torque:160000N •m
  • engine model(China II ):6BTAA5.9-C180
  • rated power(China II ):132/2200 kW/ r/min


XCMG Official XZ5000 Horizontal Directional Drill (HDD)

XCMG Official XZ5000 Horizontal Directional Drill (HDD)

XZ5000 Horizontal Directional Drill

1、Equipped with closed energy-saving circuit, load sensing control, electro-hydraulic proportional control and other advanced technology, Using the international famous brand components,reliable quality.
2、Rack and pinion sliding, ensure the stability and drive operational reliability of the Rotation box.Rotation box floating can greatly protect the drill pipe threads,improving the service life of drill pipe.
3、Volvo high horsepower engine is adopted to ensure that the drilling rig can complicated geological conditions.
4、Dual power system. Any engine start can complete all the action of the vehicle. Cummins Engine, powerful, ample power reserves to meet drill construction in different working conditions.
5、The clamp has three cylinder clamping so that drill pipe clamping reliable and shackle torque is enough. Full floating clamp, shackles torque, clamping and reliable.
6、Drill rotation and push and pull all adopt digital pressure adjustment technology. Convenient adjustment and reliable and can be preset.

XCMG Official XZ5000 Horizontal Directional Drill (HDD)
XCMG Official XZ5000 Horizontal Directional Drill (HDD)

XCMG Official XZ5000 Horizontal Directional Drill (HDD)

Description

Unit

Parameter value

Power house Engine

Manufacturers

Volvo

Model

TAD1345VE

Rated Power

kW /r/min

394×2/1800

Mainframe

Engine

Manufacturers

Cummins

Model

6BTAA5.9-C180

Rated Power

kW /r/min

132/2200

Thrust-Pull

Max thrust-pull force

kN

5000

Max thrust-pull speed

m/min

28

Rotation

Torque

N·m

160000

Max spindle speed

r/min

90

Loader Crance

Max. Lifting weight

t

5

Loading capacity

t·m

12.5

Max inclination angle

°

16

Travel driving

Type

Steel crawler self-propelled

Traveling speed

Km/h

0.9

Pipe

Diameter × Length

mm×mm

Φ168×9600

Weight

kg

55000

XCMG Official XZ5000 Horizontal Directional Drill (HDD)
