XCMG official sprinkler cleaning truck XZJ5161GQXD5 with high and low pressure water system price

Chat Now 1 / EA (Min. Order)
Model: XZJ5161GQXD5
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG official sprinkler cleaning truck XZJ5161GQXD5 with high and low pressure water system price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos

Summary

Specifications

  • Weight:16000.000kg
  • Condition:New
  • Moving Type:Other
  • Sprinkling capacity:0.2~2.0L/m2
  • Working speed:5~20km/h
  • High pressure flushing system pressure:≥9MPa
  • Water gun range:≥38m

XCMG official sprinkler cleaning truck XZJ5161GQXD5 with high and low pressure water system price

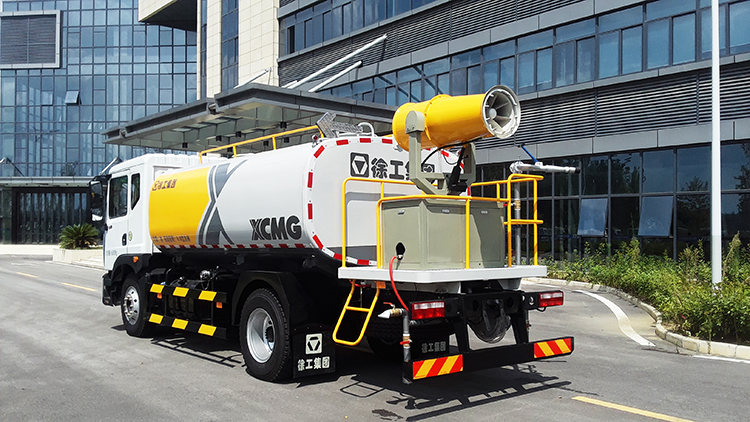

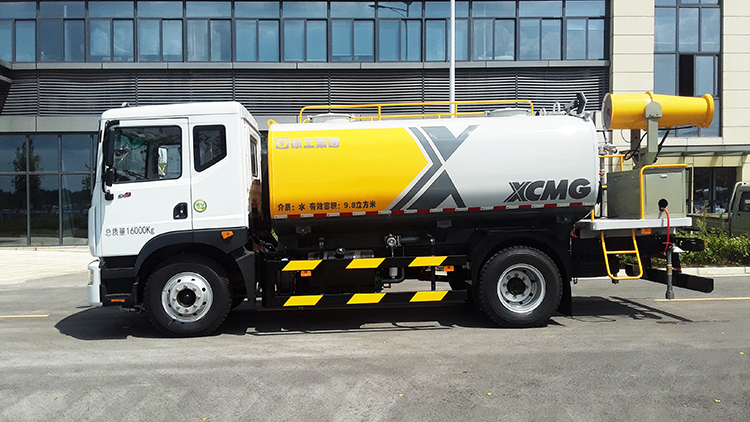

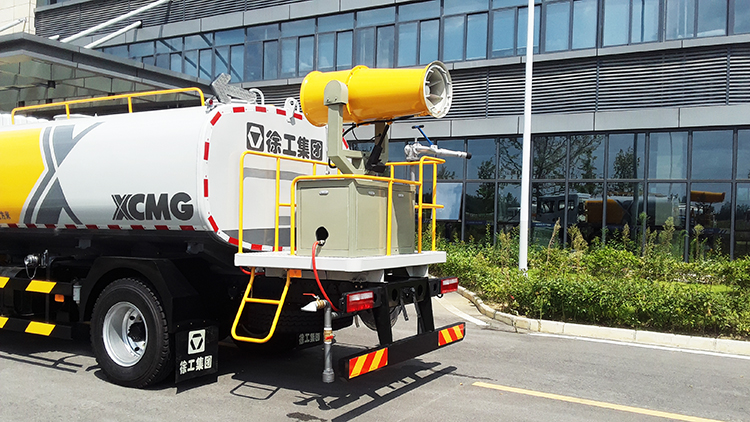

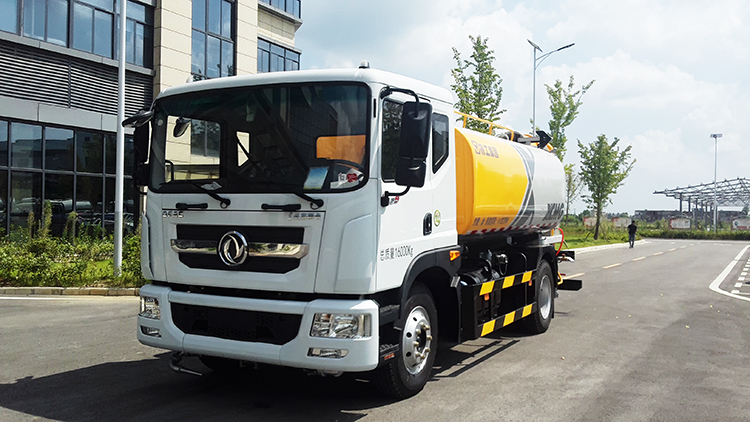

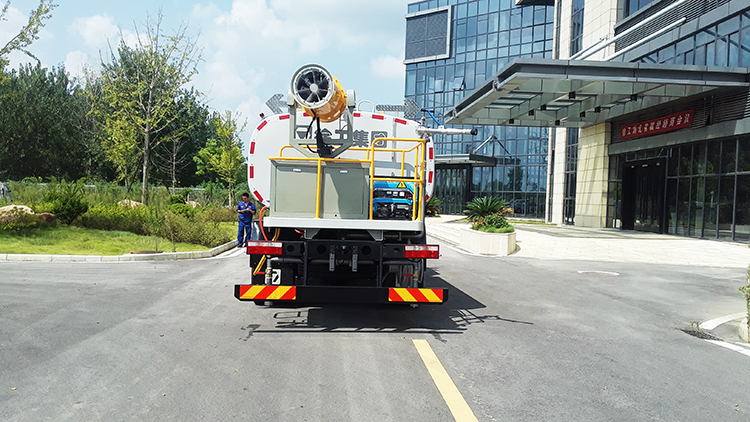

XCMG official sprinkler cleaning truck XZJ5161GQXD5 with high and low pressure water system.



XZJ5161GQXD5 cleaning car has independent high and low pressure water system. High pressure water can clean road surface, curb, sidewalk and guardrail isolation area; high pressure spray gun can also clean road signs, billboards, elevated roads, etc.; spray system has powerful spray Dust, spray air disinfectant and adjust air humidity. Low-pressure water can be sprinkled with water to reduce dust and green water.



* It has independent high and low pressure water system and high pressure cleaning and watering function. The sub engine drives the high pressure water pump. The chassis engine drives the low pressure water pump. The high pressure cleaning speed can be controlled arbitrarily.



* The front water spray frame is controlled by the oil cylinder to extend and retract, rise and fall, and deflect. The cleaning width can be adjusted from 2.5m to 3.5m; the nozzle forward tilt angle can be adjusted from 25° to 40°;



* The high and low pressure waterways are equipped with anti-freeze water blowing device interfaces to prevent freezing of water components during low temperature in winter.



* The clean water tank has a low water level alarm function and an alarm function to prevent the water pump from running out of water, effectively protecting the high pressure water pump.



* The low-pressure waterway system uses a two-stage impeller centrifugal pump with high efficiency, large sprinkling width and long range of water guns. It can also be equipped with green watering and self-priming functions.

XCMG official sprinkler cleaning truck XZJ5161GQXD5 with high and low pressure water system price

Dimensions (mm)

9010*2500*2950

Total mass (kg)

16000

Curing quality (kg)

8400

Effective volume of tank (m3)

7.52

Working speed (km/h)

520

Low pressure flushing width (m)

≥24

High pressure cleaning width (m)

2.5-3.5

Sprinkling capacity (L/ m2)

0.22.0

High pressure flushing system pressure (MPa)

≥9

High pressure flushing water flow (L/min)

≥134

Water gun range (m)

≥38

Self-priming height (m)

6
