Summary
- Brand Name:XCMG
- Place of Origin:China
Specifications
- Weight:18000.000kg
- Condition:New
- Moving Type:Other
- Vehicle Model:XZJ5180TDYXBEV
- Chassis model:XGA1180BEVXAX
- Maximum Total Weight:18000
- Curb weight:11475
- Rated Payload:6330
- Overall Dimension:9880×2500×3625
- Quantity of electric charge:367
- Wheelbase:5100
- Gunrange:≥100
- Sprayflow:≥150
- The droplets:2～200
- The actual volume of water tank:10
- Fog pitching angle:-10～+50
- Fog gun angle:±120
- Front flush width:≥24
- Sprinkler sidth:≥14
- Post green spray width:≥16
- Clean water flow:400～600
- Operating+Driving:≥8

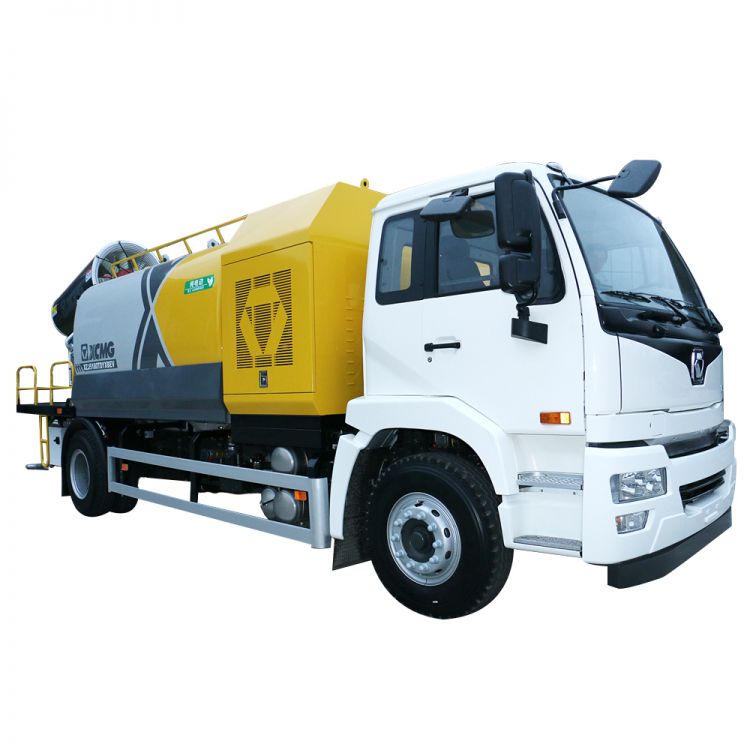

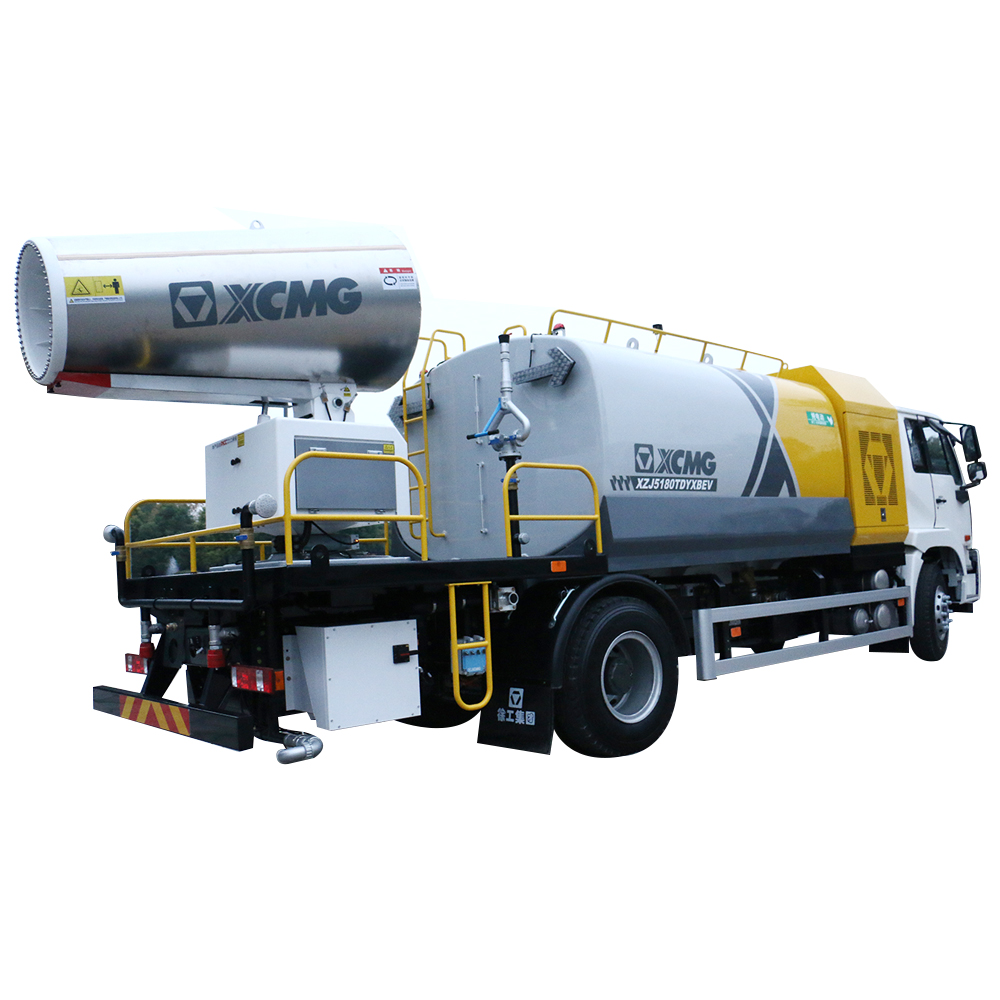

Environmental guardian X1 electric multifunctional dust suppression vehicle, matching XCMG electric chassis, is a special vehicle which can suppress dust pollution by spraying water. It is widely used in air purification for cities, dust suppression for coal stockpile and yard dust, wet cooling for highway and sports venues. Besides, the truck owns the system of low-preeure waterway and function of low-pressure water spraying. The optimized spraying structure is more efficient than comparable product by saving 30% energy.
| Item | Parameter |
| Vehicle Model | XZJ5180TDYXBEV |
| Chassis model | XGA1180BEVXAX |
| Maximum Total Weight | 18000 |
| Curb weight | 11475 |
| Rated Payload | 6330 |
| Overall Dimension | 9880×2500×3625 |
| Quantity of electric charge | 367 |
| Wheelbase | 5100 |
| Gunrange | ≥100 |
| Sprayflow | ≥150 |
| The droplets | 2～200 |
| The actual volume of water tank | 10 |
| Fog pitching angle | -10～+50 |
| Fog gun angle | ±120 |
| Front flush width | ≥24 |
| Sprinkler sidth | ≥14 |
| Post green spray width | ≥16 |
| Clean water flow | 400～600 |
| Operating+Driving | ≥8 |
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
