- Summary
- Specifications
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):8680x2490x3100mm
- Weight:12375kg
- Model Number:XZJ5180TXSD5
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Water tank capacity:9m^3
- Sweep width:3.5m
- Working speed:3-15km/h
Specifications
- Weight:12375.000kg
- Condition:New
- Moving Type:Wheel

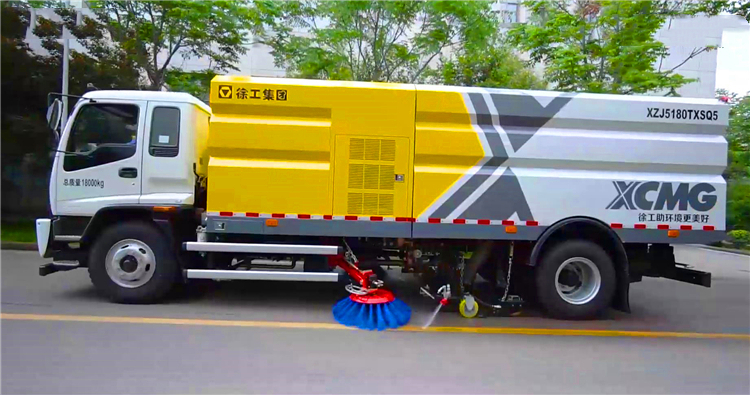

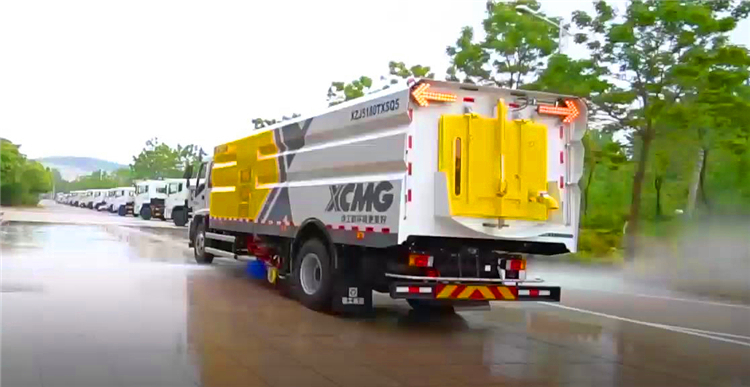

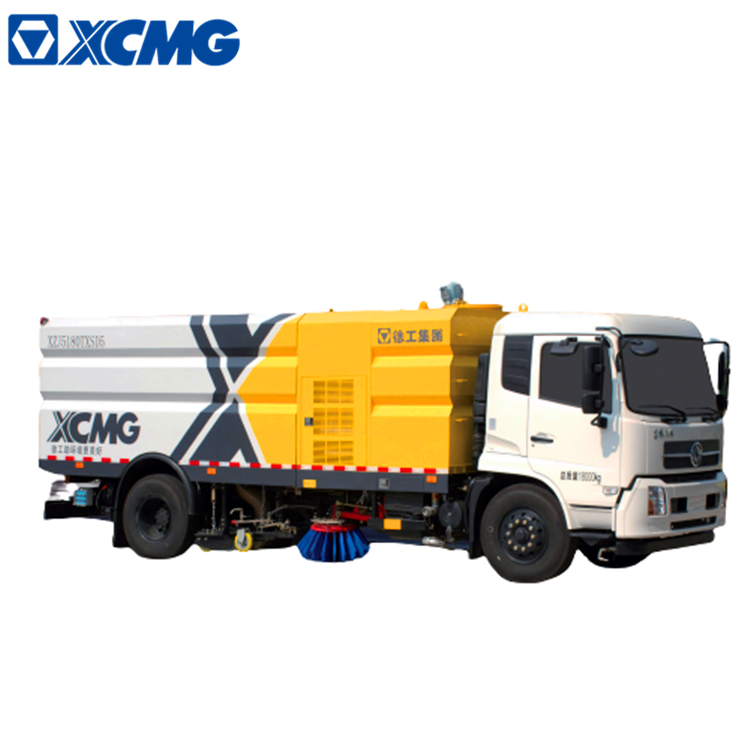

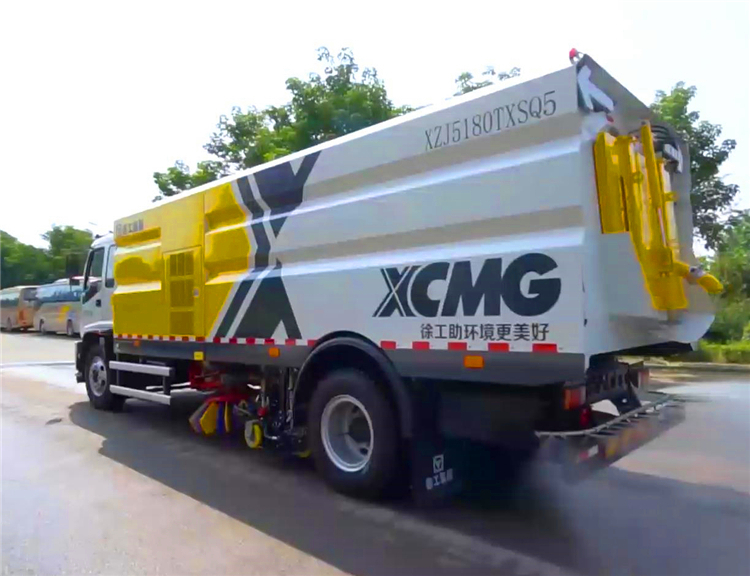

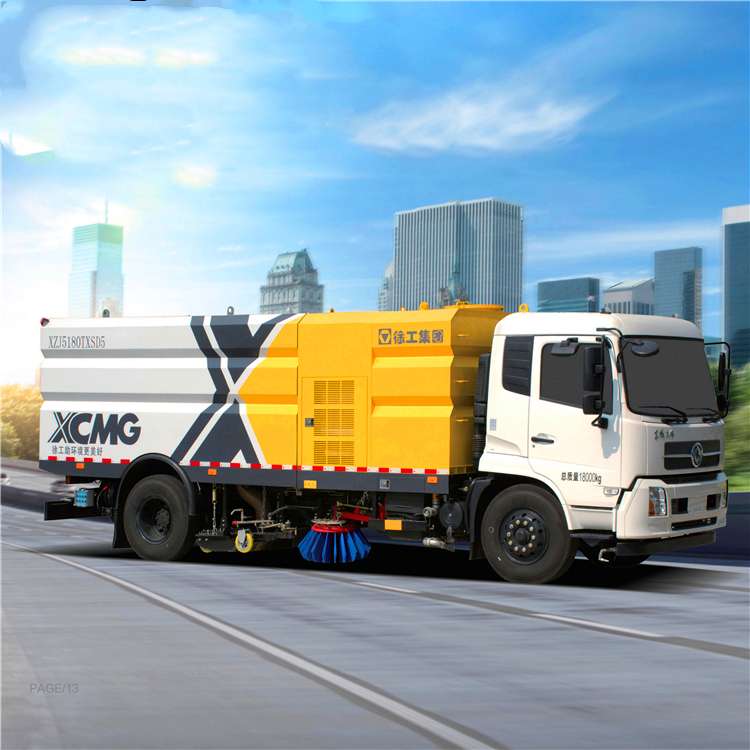

XCMG official manufacturer sprinkler road sweeper garbage truck road cleaning machine XZJ5180TXSD5.
*Patented Fan, Powerful Suction
The special high efficiency fan with exclusive patent is set and the comprehensive performance is improved by 35%. The energy con sumption for operation is reduced by 28% at maximum.

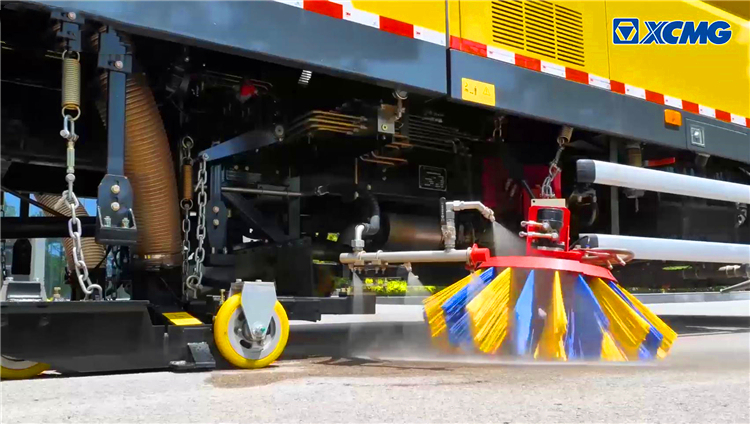

*Quick-change Sweeper, Longer Service Life
Depending on the national level R & D center of XCMG, detailed structural analysis is performed for sweeper material and secret formula makes the service life improved by above 60% (compared with competitive product). Quick-change interface is designed to realize convenient quick-change of sweeper.
*Learn Effectively, Understand Users
The product has operation memory function and control userJ s operation habits, which simplifies user's operation steps.
*Cruise Control, Comfortable Driving
The chassis has cruise control function; operation at a constant speed can effectively guarantee the cleaning effect, reduce electric power consumption, and largely improve the work efficiency and safety performance.
*Road Cleaning, One Enough
Diversified functions can meet different road cleaning requirements: sprinkling, rinsing, sweeping, cleaning, dustfall, etc. Meanwhile, high pressure waterjet is provided for cleaning of road sanitary dead angle and vehicle.
.jpg)
Parameters | Unit | XZJ5180TXSD5 |
Max. Total Weight | kg | 18000 |
Rated Payload | kg | 5625 |
Max. Speed | km/h | 98 |
Overall Dimension | mm | 8680x2490x3100 |
Sweeping Width | m | 3.5 |
Sweeping Speed | km/h | 3-15 |
Speed of Road Cleaning | km/h | 3-20 |
Max. Width of Sprinkling Sweeping | mm | 4.1 |
Speed of Sprinkling Sweeping | km/h | 3-10 |
Max. Sweeping Ability | m7h | 70000 |
Dustbin Volume | m3 | 7 |
Solution Tank Volume | m3 | 9 |
Sweeping Efficiency | % | 97 |
Lifting Angle | o | 48 |
Low-pressure Flushing Width | m | 24 |
