XCMG official 16m small bridge inspection truck XZJ5316JQJD5 China bridge inspection vehicle price
Specifications
- Weight:31000.000kg
- Condition:New
- Moving Type:Other
- Overall Dimension:12000x2500x3800 mm
- Total weight :31000 kg
- Max. Overcoming barrier:5.4 m
- Max. aerial horizontal working range:16 m
- Max. lowering depth:21 m
- Max. overbridging of sidewalk:5.2 m
- Max. walking speed:≥13 m/min
- Rated load of platform:200 kg
- Chassis model:Dong Feng DFH1310A1 (State V)
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

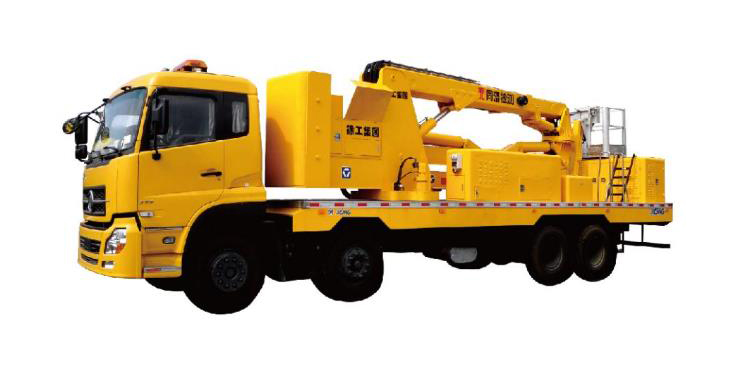

XCMG official 16m small bridge inspection
truck XZJ5316JQJD5 China bridge inspection vehicle.
1.

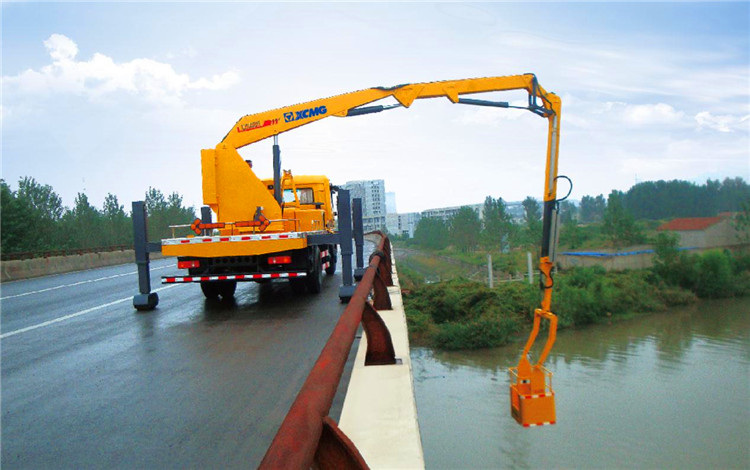

Bridge inspection truck is a special vehicle, which supply work platform for
person while working, it can be equipped with bridge detector, used for mobile
inspection and maintenance work. Bridge inspection truck can be divided into
bucket type.
2.

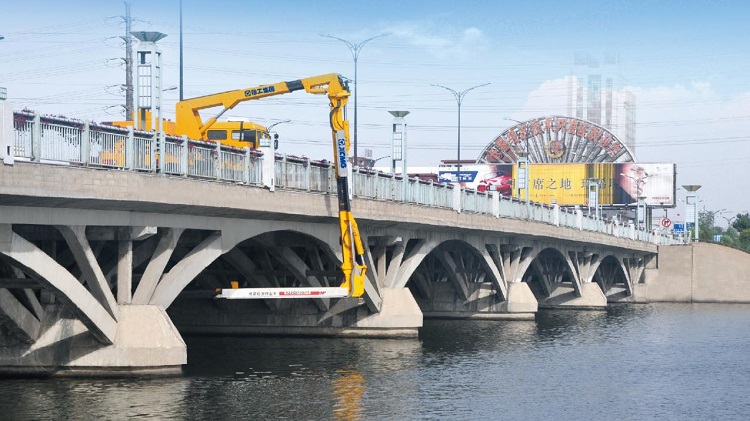

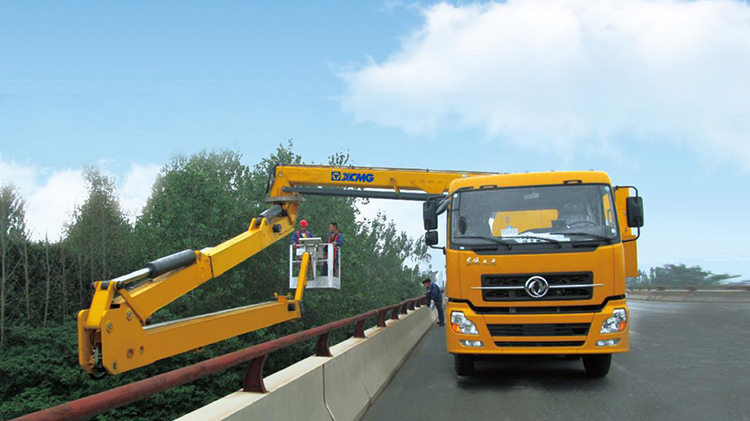

Under-bridge access equipment type according to working equipment.
under-bridge
access equipment type use access platform, with good stability and big carrying
capacity, it is convenient for personnel entering the platform from bridge or
return to bridge.
3.

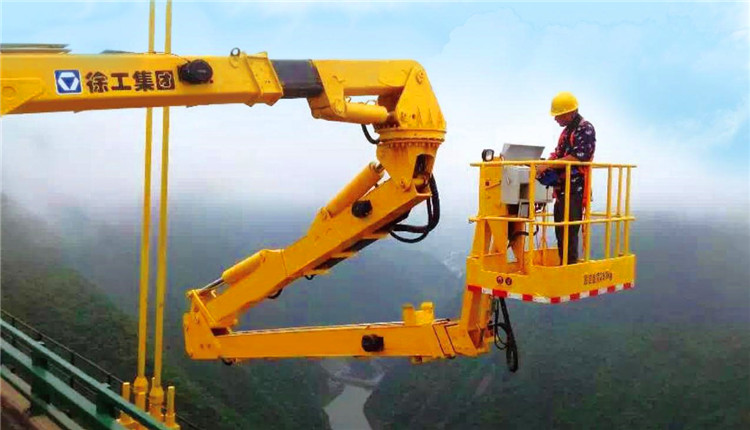

bucket-type aerial platform, with compact structure, work is flexible, almost
is not subject to the limit of bridge structure, it not only an inspect under
bridge but also can inspect the upper structure outside the bridge, sometimes
it can be used as an Aerial work platform.
|
Description |
Unit |
Parameter value |
|
Overall Dimension |
mm |
12000x2500x3800 |
|
Total weight of unit |
kg |
31000 |
|
Max. Overcoming barrier |
m |
5.4 |
|
Max. aerial horizontal working range |
m |
16 |
|
Max. lowering depth |
m |
21 |
|
Max. overbridging of sidewalk |
m |
5.2 |
|
Overall dimensions of platform |
m |
1.2×0.8×1.1 |
|
Rated load of platform |
kg |
200 |
|
Rotation range of 1st slewing organization |
° |
0~90 |
|
Max. walking speed |
m/min |
≥13 |
|
Chassis model |
Dong Feng DFH1310A1 (State V) |
|
|
Max.net power of engine |
315Ps (231.5kW) |
|
