XCMG 10m electric scissor aerial work platform XG1008DC

  • XCMG 10m electric scissor aerial work platform XG1008DC
  • XCMG 10m electric scissor aerial work platform XG1008DC
  • XCMG 10m electric scissor aerial work platform XG1008DC
  • XCMG 10m electric scissor aerial work platform XG1008DC
  • XCMG 10m electric scissor aerial work platform XG1008DC
  • XCMG 10m electric scissor aerial work platform XG1008DC

Share:
XCMG 10m electric scissor aerial work platform XG1008DC
FOB for OEM Reference Price:Get Latest Price
$50000.00-$100000.00 1 / EA (Min. Order)
Model: XG1008DC
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 10m electric scissor aerial work platform XG1008DC
XCMG 10m electric scissor aerial work platform XG1008DC
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Weight:2150kg
  • Overall Dimension:2477*810*2335mm
  • Table Size:2270*810*1246mm
  • Max Lifting Height:10m
  • Rated Loading Capacity:230kg
  • Power:4.4kw
  • Lift Drive / Actuation:Electric
  • Lift Mechanism:Scissor Lift
  • Model Number:XG1008DC
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Certification:CE/ISO9001
Details
  • Product Name:G603CC3A088A42
  • Display online time:2021-03-01
  • weight:2150.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other

XCMG 10m electric scissor aerial work platform XG1008DC

XCMG 10m electric scissor aerial work platform XG1008DC.

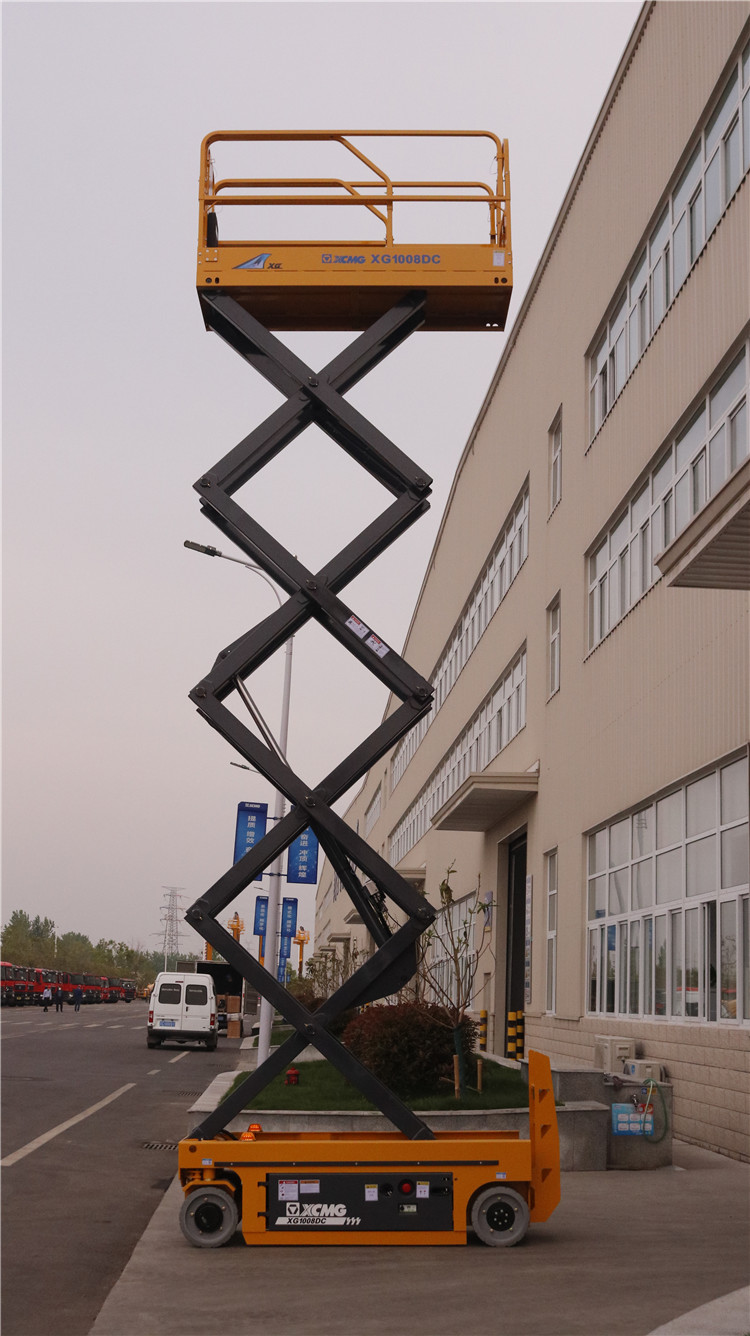

New electric scissor aerial work platform XG1008DC developed by XCMG has the work height at 10m, the vehicle width at 0.83m, the rated load at 230kg, max. platform length at 3.2m and max. gradeability at 25%.



This vehicle features compact structure, advanced performance, completed safety devices, especially suitable for construction. In addition.



It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.



Advantages and features:



1.Effective and energy-saving electric-drive system features zero emission and low noise.



2.Meeting the customer needing for safety, reliability and intelligence.



3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. “



4.Zero Turning Radius” is unique and enable machine to corner in narrow room.



5.Max. payload at 230kg, leading the industry. Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier.

XCMG 10m electric scissor aerial work platform XG1008DC

Item

Unit

XG1008DC

Dimensions (LxWxH)

mm

2477x830x2335

Wheel base

mm

1877

Wheel track

mm

689

Min. Ground clearance (pit protector lifting / decline)

mm

100/20

Platform dimensions (LxWxH)

mm

2270x810x1246

Platform dimensions Platform extension length

mm

900

Vehicle center of mass position Horizonal distance from front axis

mm

927

Vehicle center of mass position Height of center of mass

mm

475

Total weight

kg

2150

Max. Platform height

m

8

Min. Platform height

m

1.2

Max. Working height

m

10

Min. Turning radius (inner wheel / outer wheel)

m

0/2.3

Platform rated load

kg

230

Extension platform rated load

kg

115

Platform lifting time

s

2940

Platform decline tine

s

3445

Max. Walking speed (low position)

km/h

4

Max. Walking speed (high position)

km/h

0.8

Max. gradeability

%

25

Tilt warning angleside / forward and backward

°

1.5/3

Lifting /walking motor Model

Lifting /walking motor Rated power

kW

3.3/0.75

Battery Voltage

v

24

Battery Capacity

Ah

225

Battery Manufacturer

Trojan/Leoch

XCMG 10m electric scissor aerial work platform XG1008DCXCMG 10m electric scissor aerial work platform XG1008DCXCMG 10m electric scissor aerial work platform XG1008DCXCMG 10m electric scissor aerial work platform XG1008DCXCMG 10m electric scissor aerial work platform XG1008DCXCMG 10m electric scissor aerial work platform XG1008DC
