XCMG 10m XG1012HD hydraulic aerial work platform price

$10000.00-$100000.00 1 / EA (Min. Order)
Model: XG1012HD
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 10m XG1012HD hydraulic aerial work platform price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:2620kg
  • Overall Dimension:2477*1190*2355mm
  • Table Size:2277*1120mm
  • Max Lifting Height:10m
  • Rated Loading Capacity:450kg
  • Power:4.5kw
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Scissor Lift
  • Model Number:XG1012HD
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001

Specifications

  • Weight:2620.000kg
  • Condition:New
  • Moving Type:Other
  • Max. gradeability:25%
  • Drive speed(lowered):3.2km/h
  • Drive speed(elevated):0.8km/h

XCMG 10m XG1012HD hydraulic aerial work platform price

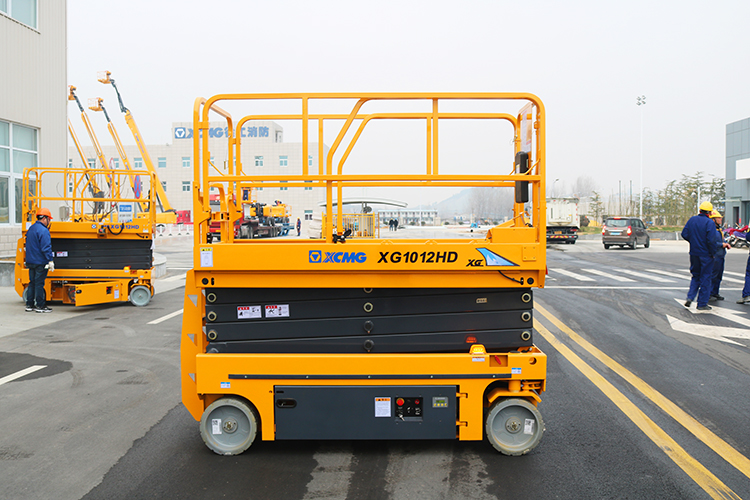

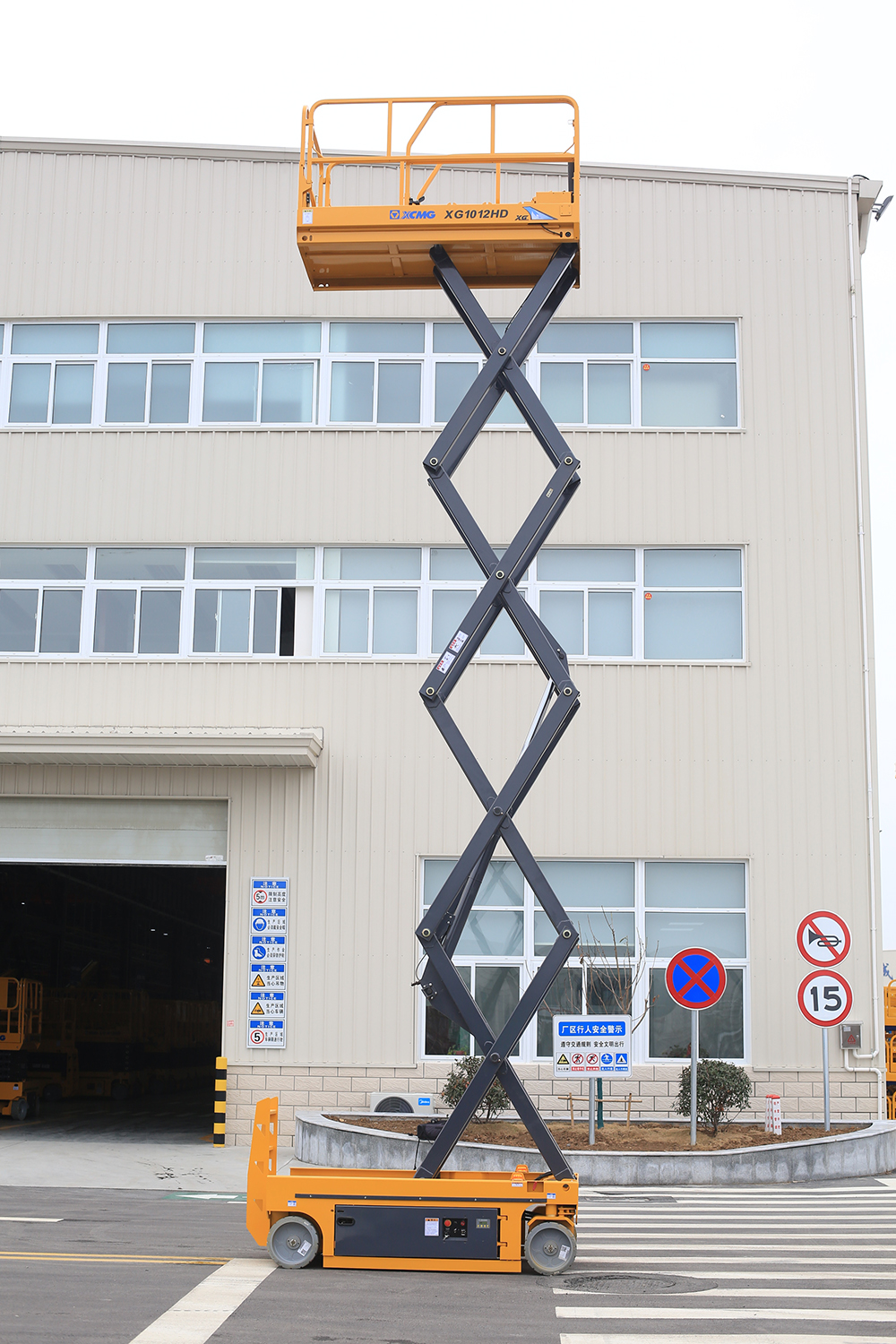

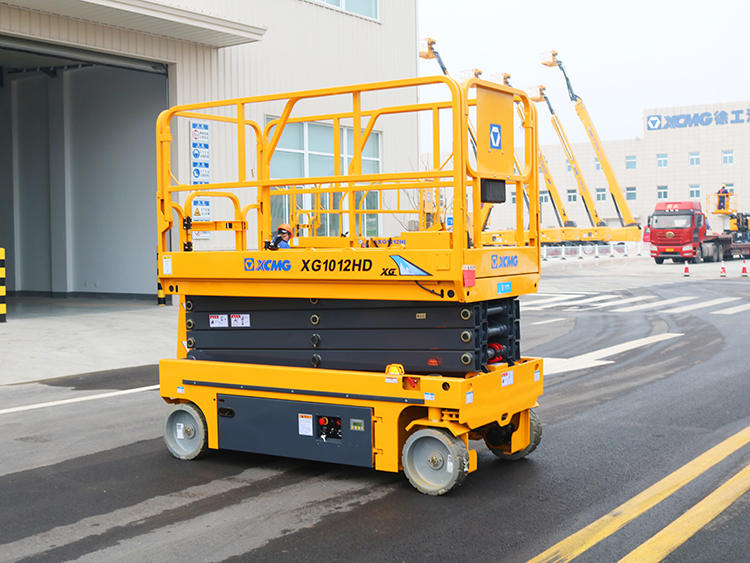

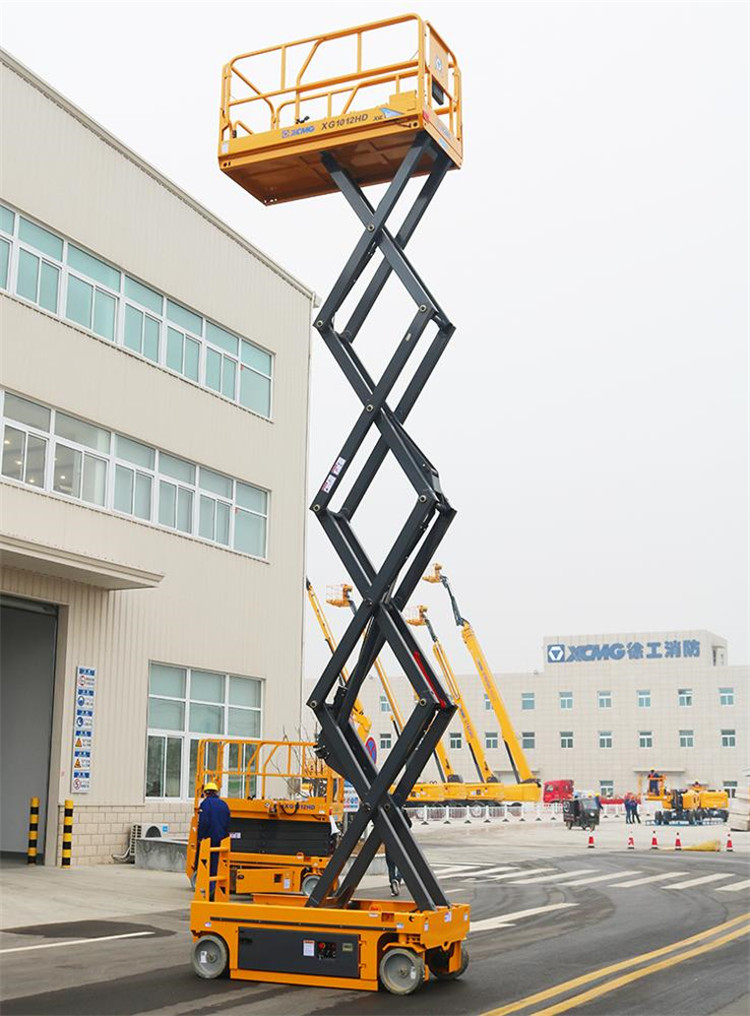

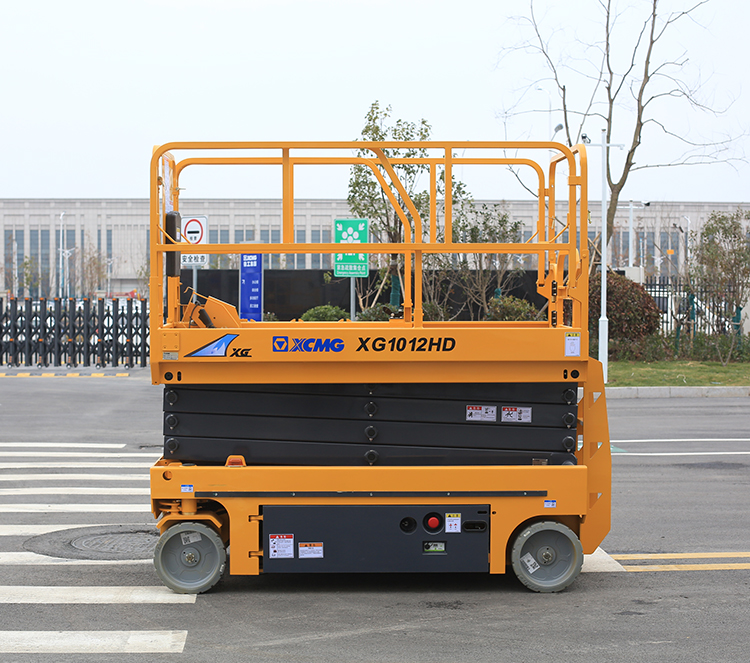

XCMG 10m XG1012HD hydraulic aerial work platform.



XCMG aerial work platform XG1012HD  developed by XCMG has the work height at 10m, the vehicle width at 1.19m, the rated load at 450kg, max. gradeability at 25%.



This kind of XCMG aerial work platform XG1012HD  are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.



Advantages and features:



1.XCMG aerial work platform XG1012HD  efective and energy-saving electric-drive system features zero emission and low noise.



2.Features compact structure, advanced performance, completed safety devices.



3.Meeting the customer needing for safety, reliability and intelligence.



4."Zero Turning Radius "is unique and enable machine to corner in narrow room.



5.XCMG aerial work platform XG1012HD max. payload at 450kg, leading the industry. Maximum traveling speed 3.2km/h and 25% gradeability make the driving easier.

XCMG 10m XG1012HD hydraulic aerial work platform price

Item
Unit
Parameter
Dimension of machine(LxWxH)
mm
2477x1190x2355
Wheelbase
mm
1877
Max. height of platform
m
8
Max. working height
m
10
Rated load
kg
450
Payload of extended platform
kg
115
Lifting time
s
29-40
Lowering time
s
34-45
Drive speed(lowered)
km/h
3.2
Drive speed(elevated)
km/h
0.8
Max. gradeability
%
25
Tilt warning angle (side/forward and backward)
°
1.5/3
Lifting /traveling motor Model
-
-
Lifting /traveling motor Rated power
kW
3.3
Battery
v/Ah
4x6/225
