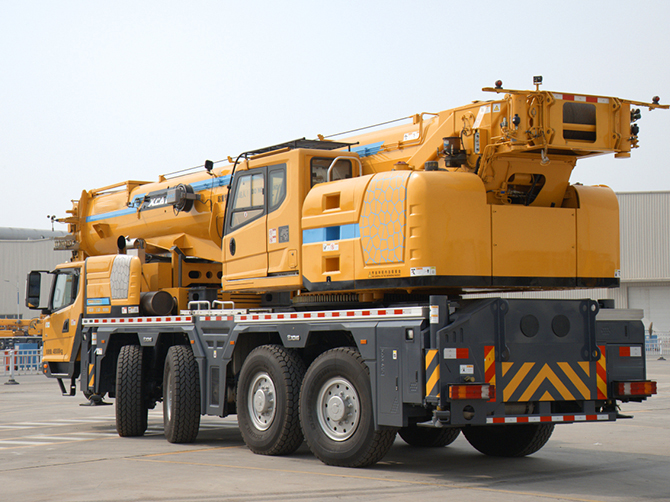

XCMG all rough terrain crane 60ton XCA60_M
XCA60_M
Specs & Compare
Details
Select 3 models for comparison
Model Number
Brand Name
Place of Origin
Span
Max. Lifting Height
Max. Lifting Load
Rated Lifting Moment
Rated Loading Capacity
Application
Certification
Engineering & Construction Machinery
XCA60_M
XCA60_M
XCMG
Jiangsu, China
360
63m
60ton
1858kN.M
60ton
all
CE
+ Add a Product
+ Add a Product
Summary
- Model Number:XCA60_M
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Span:360
- Max. Lifting Height:63m
- Max. Lifting Load:60ton
- Rated Lifting Moment:1858kN.M
- Rated Loading Capacity:60ton
- Application:all
- Certification:CE
Specifications
- weight:600000.000kg
- Condition:New
- Moving Type:Other
- Color:Red
- Warranty: 1 Year
- Condition:New
- Packaging Details:Nude packing by RORO / Bulk cargo
- Port:shanghai/qingdao/lianyungang
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG all rough terrain crane 60ton XCA60_M
1. Power and traveling performance
* MC11.35-30diesel engine, rated power 260kw, max. torque 1750N.m.
* Max. travel speed 85Km/h, Max. grade ability 70%.
2. Independent heavy duty suspension system with single wishbone
* Max. travel speed 85Km/h, Max. grade ability 70%.
2. Independent heavy duty suspension system with single wishbone
The tires on left and right side move up/down separately to adapt to the road conditions, to effectively enhance the stability of steering operation at high speed and achieve excellent off-road performance when driving on the narrow road or the road with poor road conditions.
3. New highly efficient energy-saving hydraulic system
* Advanced technologies such as variable displacement pumps and load sensitive hydraulic system matched with low speed and large torque slewing system, constant motor hoist system, and automatic regulation of the displacement with the open change of main valve contribute to reduced energy consumption more than 15% on average and the smoothness and fine control improved by 15%.
* The min. stable hoisting speed is 2.5m/min and the min. stable slewing speed is 0.1°/s.
4. Compliant to the strictest standards
* The crane is designed by complying with the strictest European standards. Its total length is not more than 12 m and width is less than 2.55 m.
* Max. grade ability is 70% and min. turning diameter is 14.2 m.
3. New highly efficient energy-saving hydraulic system
* Advanced technologies such as variable displacement pumps and load sensitive hydraulic system matched with low speed and large torque slewing system, constant motor hoist system, and automatic regulation of the displacement with the open change of main valve contribute to reduced energy consumption more than 15% on average and the smoothness and fine control improved by 15%.
* The min. stable hoisting speed is 2.5m/min and the min. stable slewing speed is 0.1°/s.
4. Compliant to the strictest standards
* The crane is designed by complying with the strictest European standards. Its total length is not more than 12 m and width is less than 2.55 m.
* Max. grade ability is 70% and min. turning diameter is 14.2 m.
