Summary
- Dimension(L*W*H):12000×2500×3900MM
- Weight:24500kg
- Power(W):279000W
- Model Number:HB37K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:24500.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Theoretical output:130cbm/h
- Max.speed:90
- Max. vertical converying diatance:37m
- Max. horizontal conveying distance:32m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

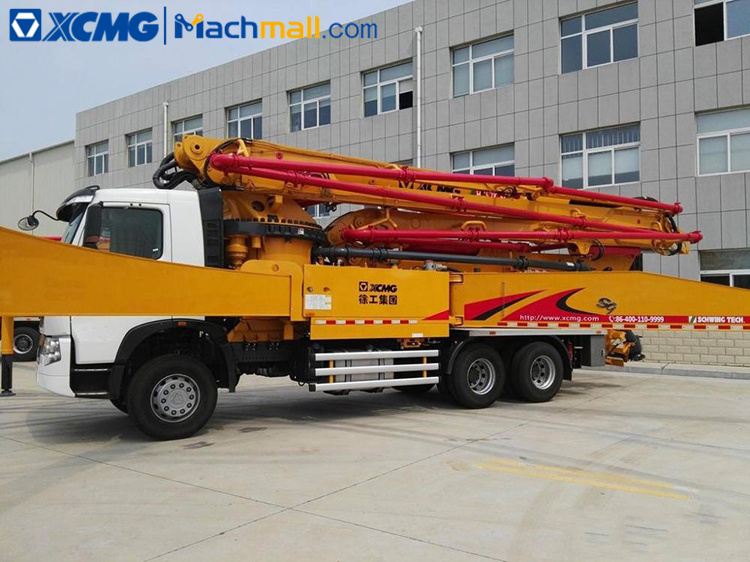

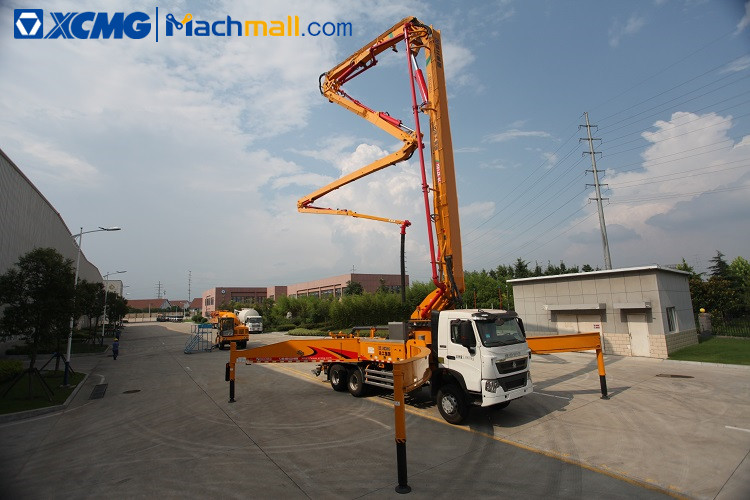

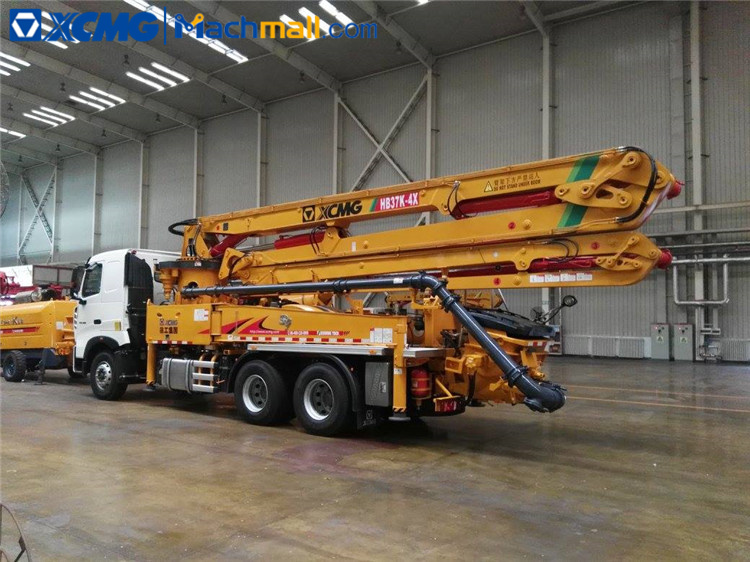

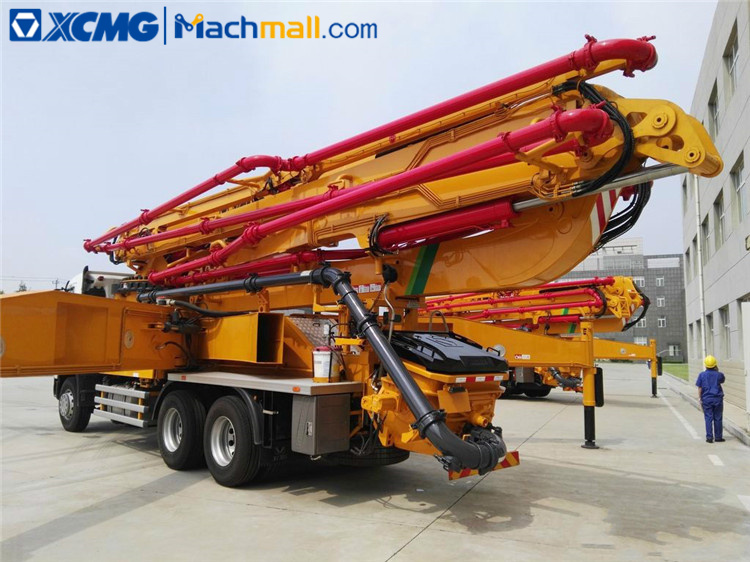

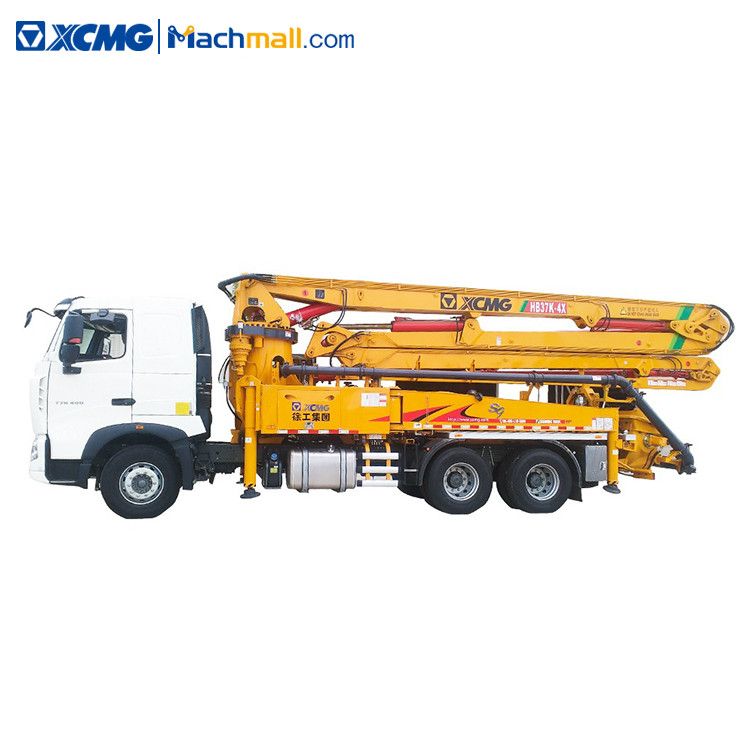

XCMG official HB37K concrete pump 37m.
XCMG official HB37K concrete pump 37m is equipped with specialty and acme originates from the top-level technology of SCHWING Germany.
XCMG official HB37K concrete pump 37m has hydraulic system's air suction protection and automatic compensation of wear ring.
Advantages:
1.The reversing time is shortened to be less than 0.1s and the efficiency is improved by more than 6%.
2.SCHWING Germany’s hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.
|
Description |
Unit |
Parameter value |
|
Outline dimension |
mm |
12000×2500×3900 |
|
Overall weight |
kg |
24500 |
|
Model |
|
ZZ5307N4647C |
|
Manufacturer |
|
Sinotruk Group Jinan Truck Co., Ltd. |
|
Max. speed |
km/h |
90 |
|
Max. grade-ability |
% |
40 |
|
Wheelbase |
mm |
4600+1350 |
|
Tire |
|
11.00R22.5 |
|
Model |
|
WD615.96 |
|
Max. power |
kW |
279 |
|
Max. torque |
N·m/(r/min) |
1590/1100~1600 |
|
Displacement |
L |
9.276 |
|
Emission standard |
|
Eruo III |
|
Theoretical output |
m³/h |
130 |
|
Concrete pumping pressure |
MPa |
8 |
|
Theoretical pumping times |
Time/min |
24~27 |
|
Delivery cylinder diameter×stroke |
mm |
φ230×2000 |
|
Max. diameter of pumping concrete |
mm |
40 |
|
Filling height |
mm |
1580 |
|
Concrete slump range |
cm |
8~23 |
|
Reach height |
m |
29.6 |
|
Reach depth |
m |
18 |
|
Slewingradius |
m |
36.5 |
|
Slewing angle |
° |
±270 |
|
Unfolding angle of the 1st section |
° |
90 |
|
Unfolding angle of the 2nd section |
° |
180 |
