XCMG schwing concrete pumps HB62V with Scania Chassis price
FOB for Concrete Mach Reference Price:Get Latest Price
$100000.00-$200000.00 1 / EA (Min. Order)
Model: HB62V
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG schwing concrete pumps HB62V with Scania Chassis price
XCMG schwing concrete pumps HB62V with Scania Chassis price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF
Summary
  • Dimension(L*W*H):15370*2530*4000mm
  • Weight:43870kg
  • Power(W):331000W
  • Model Number:HB62V
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Power Type:Diesel
  • Certification: CE/ISO9001
Specifications
  • weight:43870.000kg
  • Condition:New
  • Moving Type:Wheel
  • Color:Color
  • Productivity: 180m3/h
  • Core Components:Engine
  • Max. vertical conveying diatance:200M

XCMG schwing concrete pumps HB62V with Scania Chassis price

XCMG schwing concrete pumps HB62V with Scania Chassis.



XCMG schwing concrete pumps HB62V truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.


In the design, the mercedes Scania chassis is adopted, following the principle of "high technology, high performance, high reliability, and high quality", with curved outriggers, intelligent boom damping technology, and full hydraulic reversing technology, The industry's unique skirt valve pumping system and other product highlights.



Advantages and highlights:

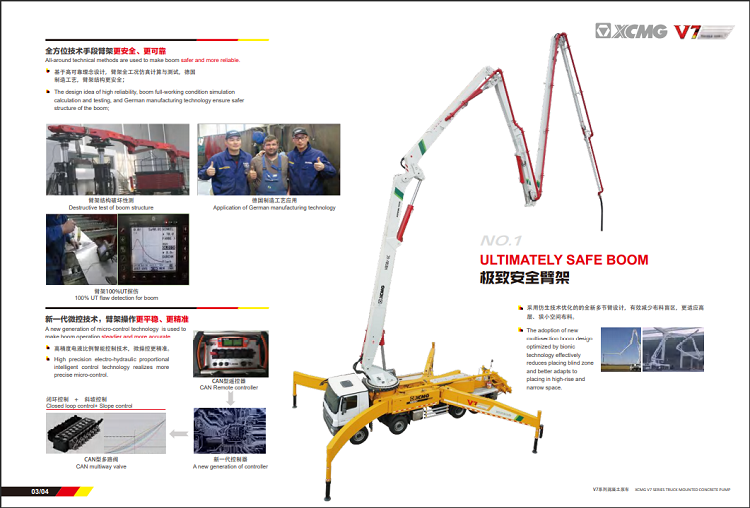

1.Ultimately Safe Boom.

2.Lower Structure of High Rigidity.

3.Hydraulic System of Outstanding Performance.

4.Effectively reduce emissions with the reversing, vulnerability of longer life.

5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.



XCMG schwing concrete pumps HB62V with Scania Chassis price



Category
Item
Unit
HB62V
Overall
Outline dimension
mm
15370×2530×4000
Overall weight
kg
43870
Chassis
Brand
/
SCANIA
Model
/
P 450 8×4
Wheelbase
mm
1990+4360+1350
Max.power
kW
331
Emission standard
/
China VI
Pumping system
Theoretical
m³/h
180
Concrete pumping pressure
MPa
10.2
Theoretical pumping times
Times/min
22~24
Delivery cylinder diameter × stroke
mm
φ260×2200
Placing boom
Reach height
m
61.1
Reach depth
m
43.6
Slewing radius
m
55.9
Slewing angle
°
±270
Others
Transfer
/
Rock valve/S valve

XCMG schwing concrete pumps HB62V with Scania Chassis price
