XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price

  • XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price
  • XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price
  • XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price
  • XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price
  • XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price
  • XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price

Share:
XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price
FOB for OEM Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XCF-PG15/20/25
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price
XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Type:stacker
  • Brand Name:XCMG
  • Place of Origin:Jiangsu,China
Details
  • weight:1500.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:New
  • Moving Type:Other

XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price

XCMG official 1.5 ton 2 ton 2.5 ton electric forklift China new stand-on reach truck price.

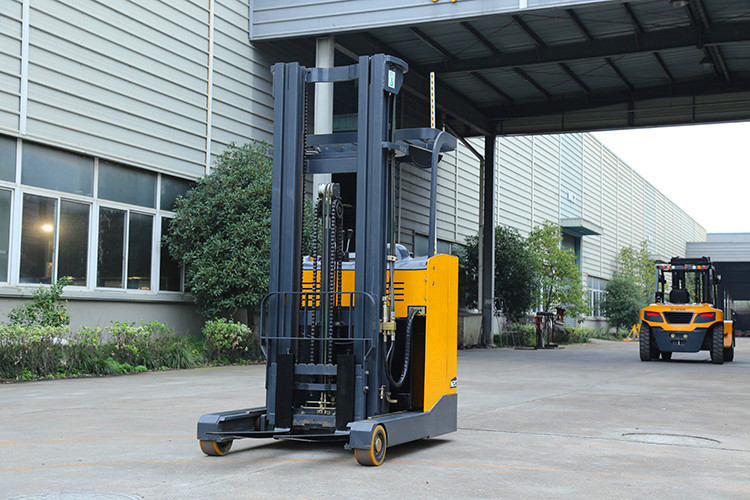

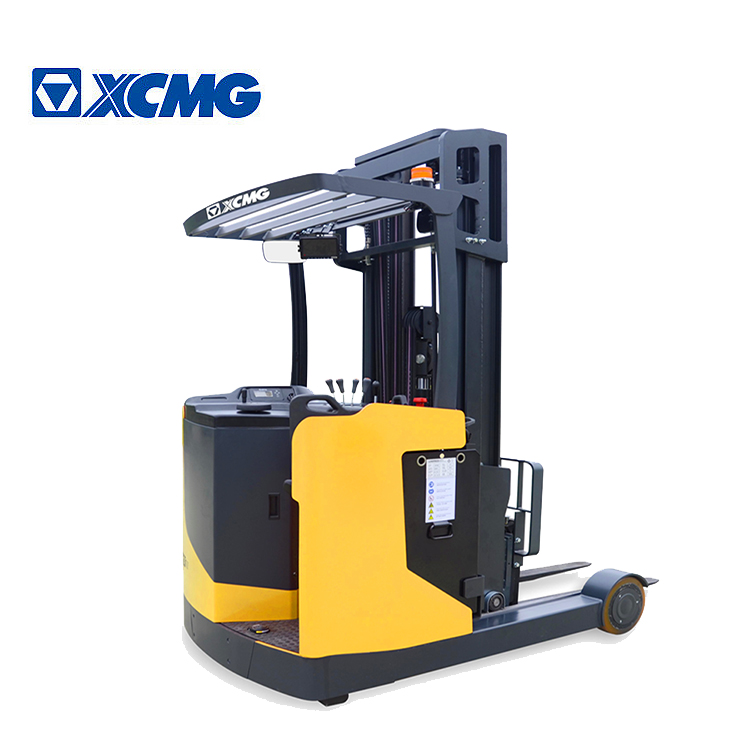

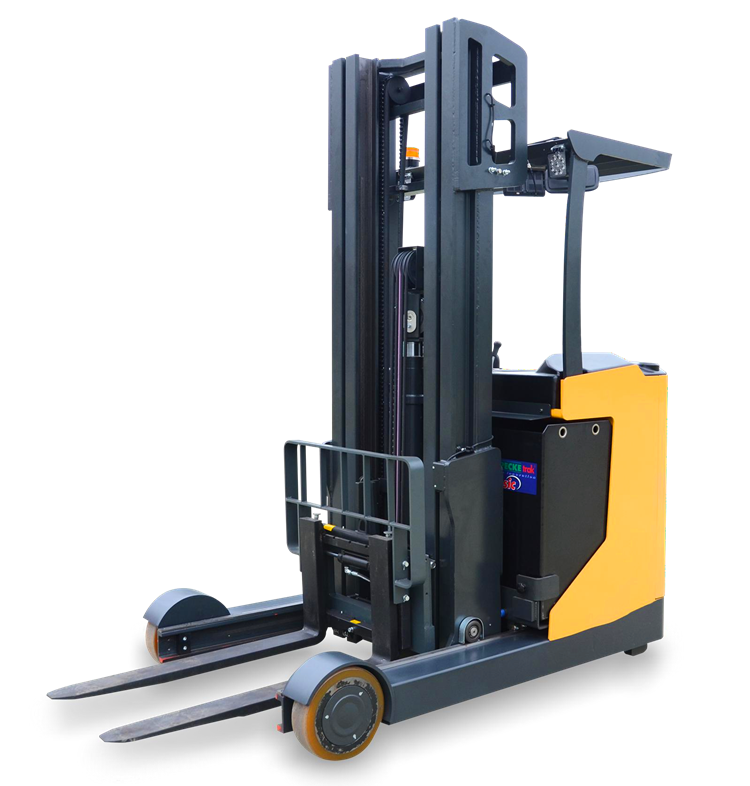

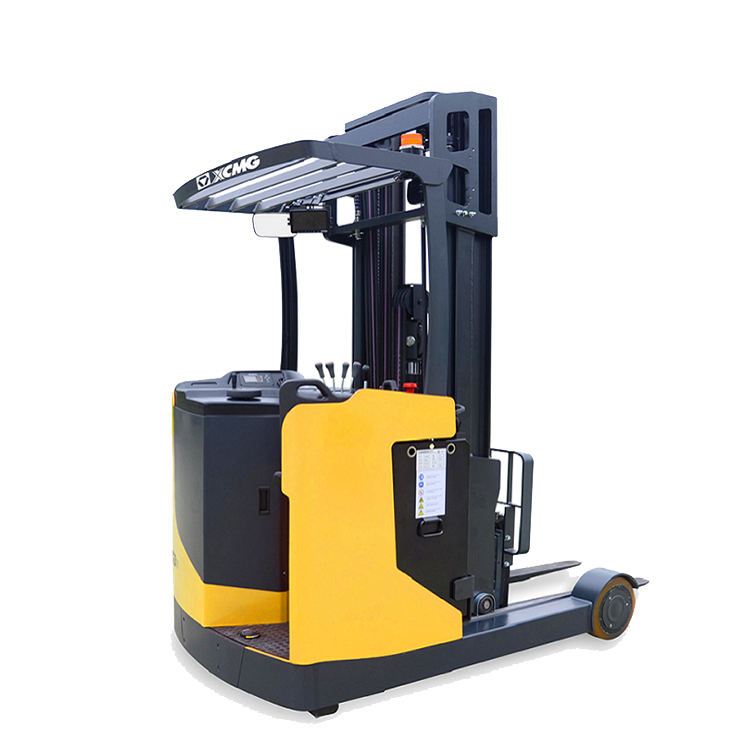

XCF-PG15/20/25 is suitable for large-tonnage, high-lift cargo storage applications.The rated load capacity is 1500kg and the maximum lifting height is 8000mm. It has the characteristics of the overall forward movement of the door frame, small turning radius, and can ignore the obstacles at the bottom of the shelf.XCF-PG15/20/25 is suitable for the storage of goods in large-scale three-dimensional factories, warehouses, supermarkets, and wharves.



Advantages:

1.Full AC System

2.OPS System (Sit-in type)

3.EPS Steering System

4.Electromagnetic Braking system

5.Lower Energy Consumption

6.Easy-to-read operator display

7.Assistance System to fit in your specific working condition

XCMG official 1.5 ton 2 ton 2.5 ton electric stacker China new stand-on reach stacker forklift price

特性(character

型号(Model)

XCF-PG15

XCF-PG20

XCF-PG25

额定承载能力(Rated capacity)

Q

kg

      1500

    2000

    2500

载荷中心距(load center distance

C

mm

       500

     500

     500

动力方式(Power mode)

电动

电池标准(battery standard

     4PZS

     3PZS

    4PZS

轮胎形式(Tyre type)

聚氨酯轮(PU)

尺寸(Size

门架缩回时高度(Height, lowered)

h1

mm

3398

     2335

自由提升高度(Free Lift height)

h2

mm

2795

     1420

最大起升高度(Max.lifting height)

h3

mm

8000

     5000

作业时门架最大高度(Extended mast height)

h4

mm

8865

     5915

护顶架高度(overhead load guard height)

h6

mm

2330

     2260

前悬距(Load distance, centre of drive axle to fork

X

mm

      380

        208

      208

轮距(Wheel base)

y

mm

     1482

       1500

     1636

转向轮尺寸(Additional wheels dimensions

xw

mm

   343X140

轮距(Tread rear

b11

mm

     1010

1155

总长(Length)

l1

mm

     2246

       2380

      2450

车长( Length to face of forks)

l2

mm

     1326

       1310

      1380

总宽(Width)

b1

mm

     1130

1260

货叉尺寸 (Fork dimensions)

s/e/l

mm

35/100/920

40/120/1070

货叉倾角前/(mast/fork carriage tilt forward/backward)

α/β

°

2.0/4.0

货叉外间距(最小/最大)(Distance between fork-arms)

b5

mm

        200/760

240/760

前移距离(reath distance)

l4

mm

      560

          645

       710

至轮臂最前端的长度(length across wheel arms)

l7

mm

     1855

        1920

      2050

直角堆垛通道宽度,托盘800X1200Aisle width for pallets 800X1200 lengthways

Ast

mm

     2695

         2800

      2870

最小转弯半径(Min.Turning radius)

Wa

mm

1750

      1880

性能(Performance)

行驶速度 (满载/空载) (Travelling speed loaded/unloaded)

km/h

9.5 / 9.5

10.5 / 10.5

提升速度(满载/空载)(Lift speed,loaded/unloaded

m/s

0.28/0.32

0.27/ 0.38

下降速度(满载/空载)(Lowering speed,loaded/unloaded

m/s

0.35/ 0.31

0.45/ 0.4

爬坡能力(满载/空载)(Gradeability,loaded/unloaded

%

10.0/15.0

行车制动(Braking method

电磁制动

电机和蓄电池(Motor&Battery)

提升电机功率(Lift motor power)

kw

12.5

驱动电机功率(Drive motor power)

kw

6.4

电压(Voltage)

V

48

容量(Amphere)

Ah

360

420

480
