XCMG factory 12m hydraulic scissor lift XG1212HD with PDF catalog price

$50000.00-$100000.00 1 / EA (Min. Order)
Model: XG1212HD
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG factory 12m hydraulic scissor lift XG1212HD with PDF catalog price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF

Summary

  • Weight:2900kg
  • Overall Dimension:2477*1190*2480mm
  • Table Size:2277*1120mm
  • Max Lifting Height:12m
  • Min Lifting Height:1.34m
  • Rated Loading Capacity:320kg
  • Power:4.5kw
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Scissor Lift
  • Model Number:XG1212HD
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001

Specifications

  • Weight:2900.000kg
  • Condition:New
  • Moving Type:Wheel
  • Max. Walking speed:0.8-3.2km/h
  • Max. gradeability:25%

XCMG factory 12m hydraulic scissor lift XG1212HD with PDF catalog price

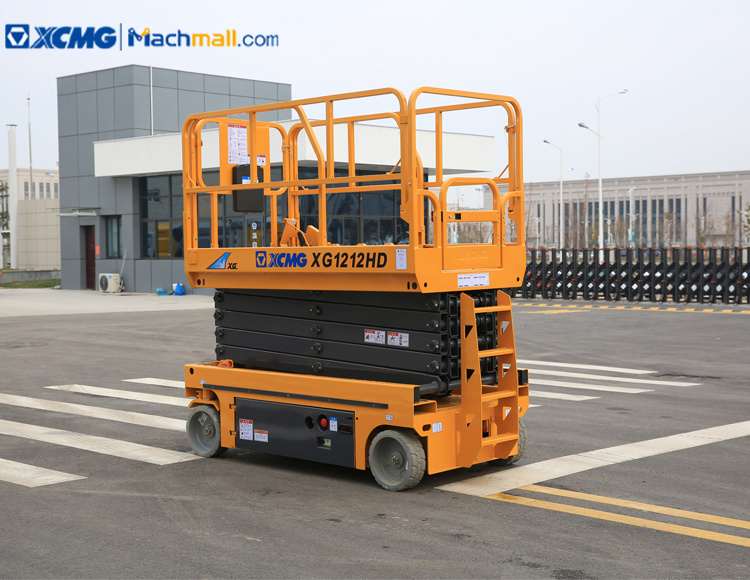

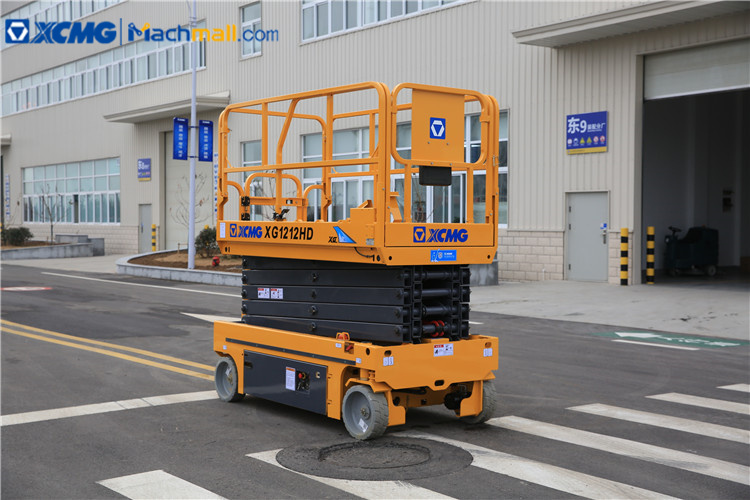

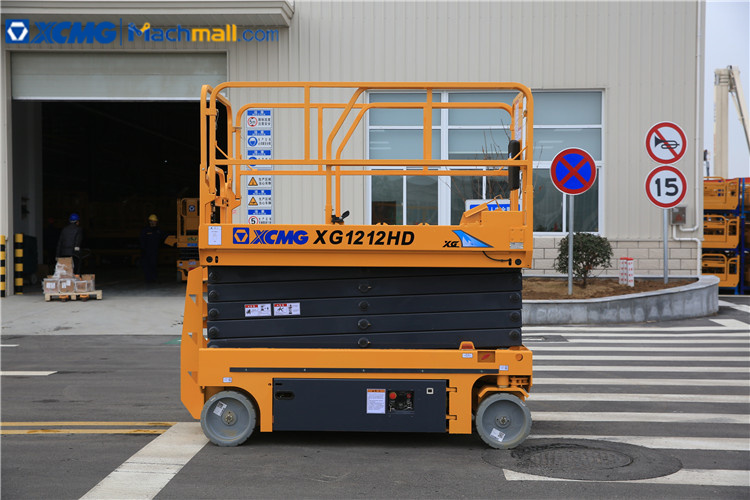

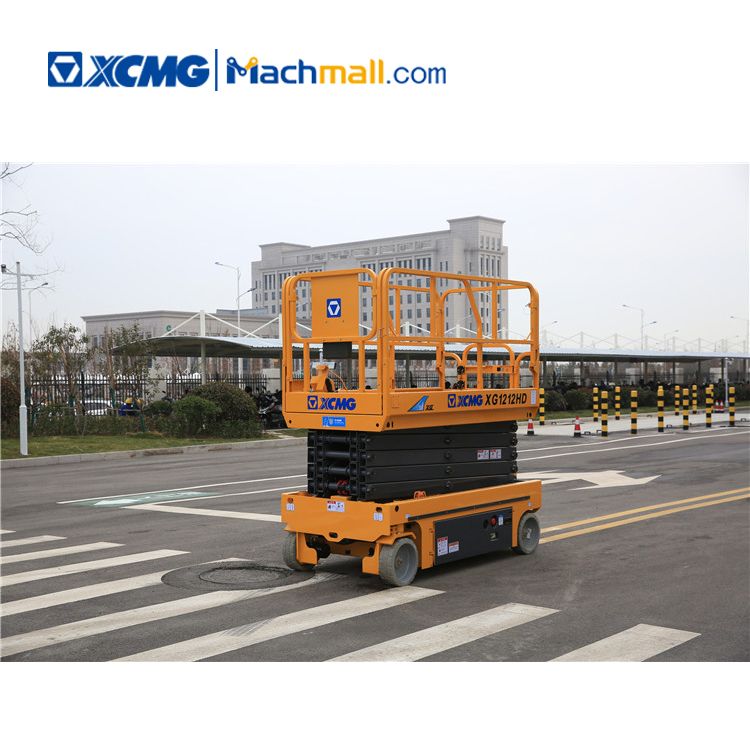

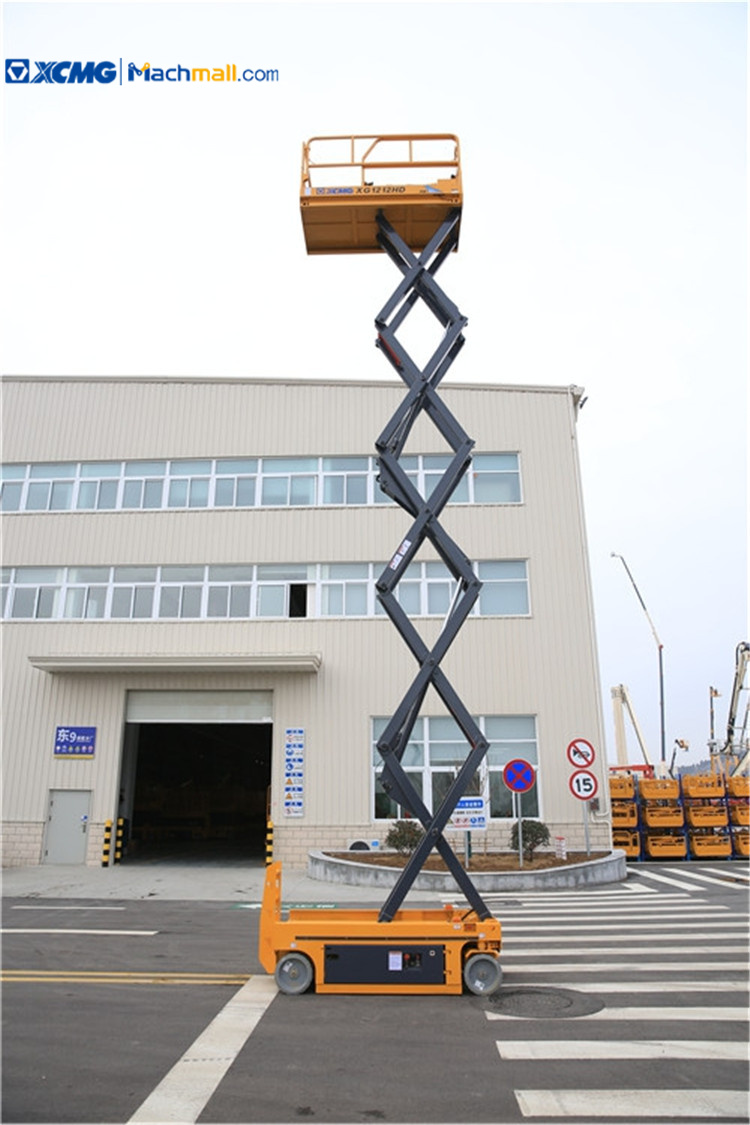

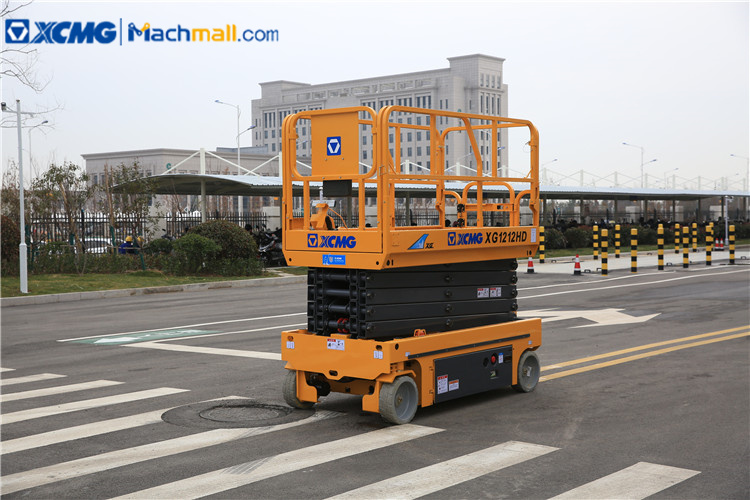

XCMG factory 12m hydraulic scissor lift XG1212HD.



XCMG hydraulic scissor lift XG1212HD developed by XCMG has the work height at 12m, the vehicle width at 1.19m, the rated load at 320kg, max. gradeability at 25%.



This kind of XCMG hydraulic scissor lift XG1212HD are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.



Advantages and features:



1.XCMG hydraulic scissor lift XG1212HD effective and energy-saving electric-drive system features zero emission and low noise.



2.features compact structure, advanced performance, completed safety devices.



3.Meeting the customer needing for safety, reliability and intelligence.



4."Zero Turning Radius "is unique and enable machine to corner in narrow room.



5.XCMG hydraulic scissor lift XG1212HD max. payload at 320kg, leading the industry. Maximum traveling speed 3.2km/h and 25% gradeability make the driving easier.

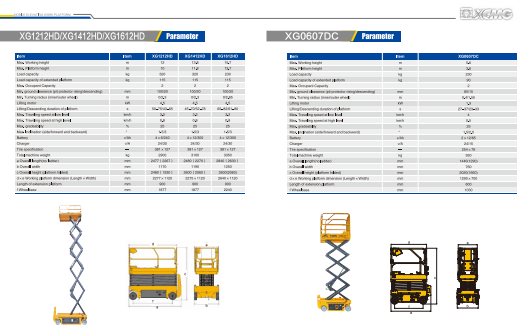

XCMG factory 12m hydraulic scissor lift XG1212HD with PDF catalog price

Item

Unit

Parameter

Dimension of machine Length (without ladder)

mm

2477 (2267)

Dimension of machine Width

mm

1190

Dimension of machine Height (platform folded)

mm

2480 (1930)

Wheelbase

mm

1877

Wheel track

mm

1043

Min. ground clearance (Pit protector ascending/descending)

mm

100/20

Dimension of working platform Length

mm

2277

Dimension of working platform Width

mm

1120

Dimension of working platform Height

mm

1263

Extension length of the Dimension of working platform auxiliary platform

mm

900

Centroid position of machine Horizontal distance to front shaft

mm

950

Centroid position of machine Height of centroid

mm

663

Total mass of machine

kg

2900

Max. height of platform

m

10

Min. height of platform

m

1.34

Max. working height

m

12

Min. turning radius (inner wheel/outer wheel)

m

0/2.3

Rated load

kg

320

Payload of extended platform

kg

115

Lifting time

s

50-75

Lowering time

s

43-65

Drive speed(lowered)

km/h

3.2

Drive speed(elevated)

km/h

0.8

Max. gradeability

%

25

Tilt warning angle (side/forward and backward)

°

1.5/3

Lifting / traveling motor Model

-

-

Lifting / traveling motor Rated power

kW

3.3

Lifting / traveling motor Manufacturer

-

-

Battery Model

-

T125/3-EV-225

Battery Voltage

v

24

Battery Capacity

Ah

240

Battery Manufacturer

-

Trojan/Leoch

Tire models

-

Traceless and solid /381×127
